• Model NO.：HY-66,76B
• Max. Forming Depth：100mm
• Power Supply：AC380V, 50,60Hz
• Max. Sheet Roller Dia.：900mm
• Production Speed：600-1200 Cycles,Hr
• Dimension：4850*1500*2130mm
• Warranty：1 Year
• Raw Material：OPS,HIPS,PS,PVC,Pet
• Application：Container,Box,Lid,Tray
• Transport Package：Wooden Case
• Specification：HY-660,760
• Trademark：Hongyin
• Origin：Ruian, Zhejiang
• HS Code：847780000
• Production Capacity：20sets,Year

Basic Info.

Model NO. HY-66/76B Max. Forming Depth 100mm Power Supply AC380V, 50/60Hz Max. Sheet Roller Dia. 900mm Production Speed 600-1200 Cycles/Hr Dimension 4850*1500*2130mm Warranty 1 Year Raw Material OPS/HIPS/PS/PVC/Pet Application Container/Box/Lid/Tray Transport Package Wooden Case Specification HY-660/760 Trademark Hongyin Origin Ruian, Zhejiang HS Code 847780000 Production Capacity 20sets/Year

Product Description

I. Introduction With The MachineHY-66/76B thermoforming machine is a combination of mechanical, electrical and pneumatic components,
and the whole system is controlled by a micro PLC, which can be operated in man-interface.
It combines the material sending, heating, forming into one process. It has three operation models. " manual",
" semi-automatic" and "automatic, so it is a new generation ideal package equipment with telecommuting and
 memory reserve functions.

Specifications


Forming Area	660×760 mm
Forming Depth	100 mm
Sheet Thickness Range	0.10-1.0 mm
Sheet Roller Diameter	900 mm
Air Pressure	0.7 Mpa
Water Consumption	15 Liters/min(15-20ºC)
Air Consumption	2400 Liters/min
Production Speed	600-1200 recycles/hr.
Voltage	Tri-phase, AC380V±15V,50HZ
Mould Plate Heating Power	9 kw
Heating Plate Power	18 kw
Weight	3000 kg
Dimensions(L×W×H)mm	4850×1500×2130

II. Application Area
It is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce
various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food
boxes, supermarket trays, oral liquids trays etc.

III. Machine Picture

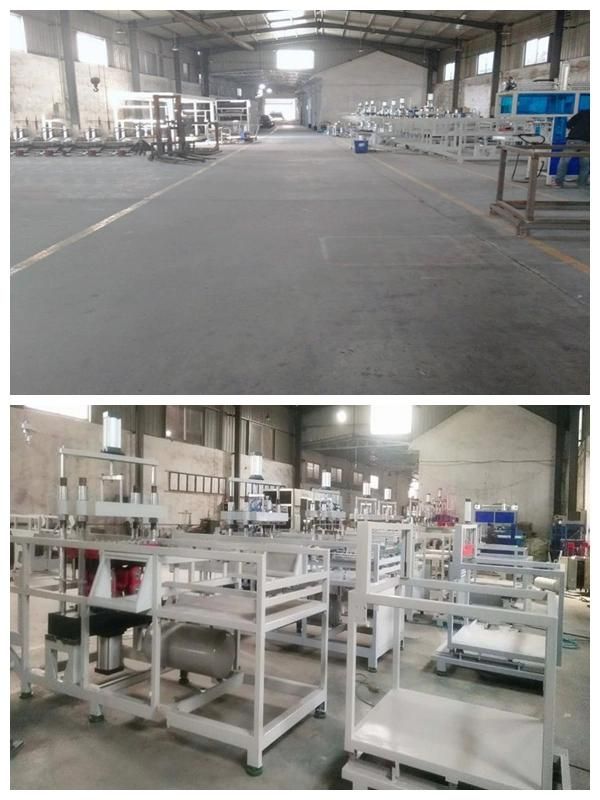

1. HY-66/76B Plastic Thermoformer Workshop


2. The Machine Details

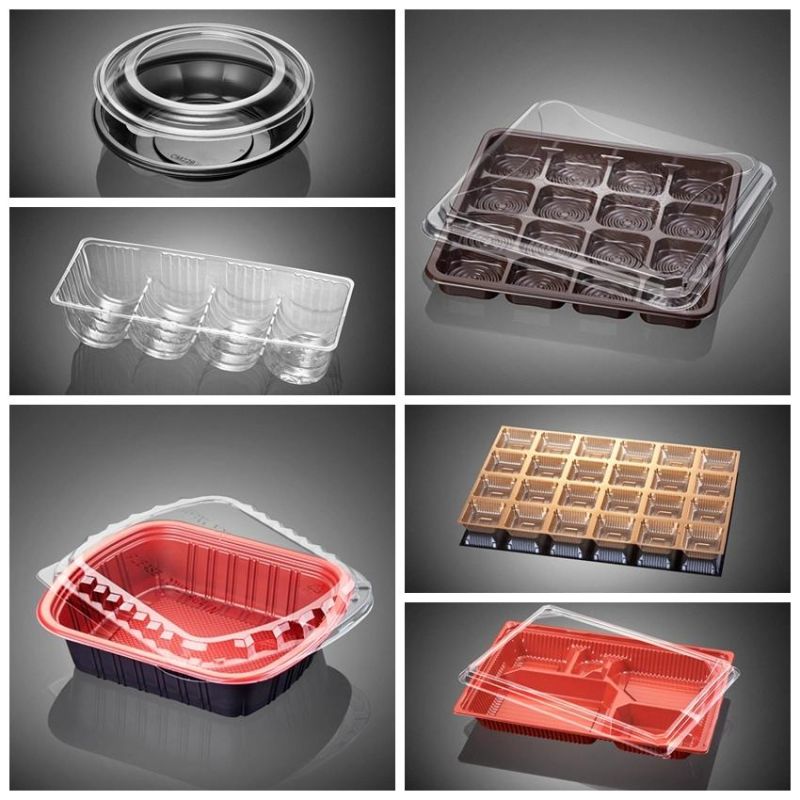

3. HY-66/76B  Products Samples

IV. About Zhejiang Hongyin Machinery Co., Ltd Service.
1. Purchase Service
Hongyin Company has a specialized and efficient working team. If you are new on the printing and
packing area, some samples of your products shown to us will be appreicated, we will give you specialized
suggestion of whole work.

2. Installation Service
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training.
Cost for return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day.

3. Warranty Service
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.  If you are interested in our machine, please feel free and contact me.
