• Model NO.：FA-300 1; 2; 4
• Machine Type：Fully Automatic
• Volume：up to 300ml
• Max Bottle Height：180mm
• Max Body Diameter：50mm
• Max Neck Diameter：42mm
• Cavity No.：1,2,4
• Max Clamping Stroke：80mm
• Max Stretch Stroke：280mm
• Bottom Moving Stroke：40-70mm
• Total Power：15 Kw
• Transport Package：Film Packing
• Specification：1700kg
• Trademark：YAOVA
• Origin：China
• HS Code：84773010
• Production Capacity：400 Sets,Year

Basic Info.

Model NO. FA-300 1; 2; 4 Machine Type Fully Automatic Volume up to 300ml Max Bottle Height 180mm Max Body Diameter 50mm Max Neck Diameter 42mm Cavity No. 1,2,4 Max Clamping Stroke 80mm Max Stretch Stroke 280mm Bottom Moving Stroke 40-70mm Total Power 15 Kw Transport Package Film Packing Specification 1700kg Trademark YAOVA Origin China HS Code 84773010 Production Capacity 400 Sets/Year

Product Description

1. Overview of machine





Basic specification of FA-300
1) PET preform loading automatic
2) Auto-fault detection
3) Bottle neck range: 28-42mm

Working condition
1) Power supply: 380VAC/50HZ (depending on client's country)
2) High pressure: 1.2m3/min, 3.0Mpa
3) Low pressure: 1.0m3/min, 1.0Mpa.
4) Air dryer+ Filter: 1.0m3/min, 3.0Mpa.

2.Application




NOTE :
TONVA company not only manufacture blow molding machine and molds, TONVA would like to provide complete solutions or consultancy for our customers on their products, in order to increase the efficiency and decrease the cost.
If you have any doubts about our machines and molds, please do not hesitate to communicate with TONVA company, your ideas and suggestion will be highly appreciated.

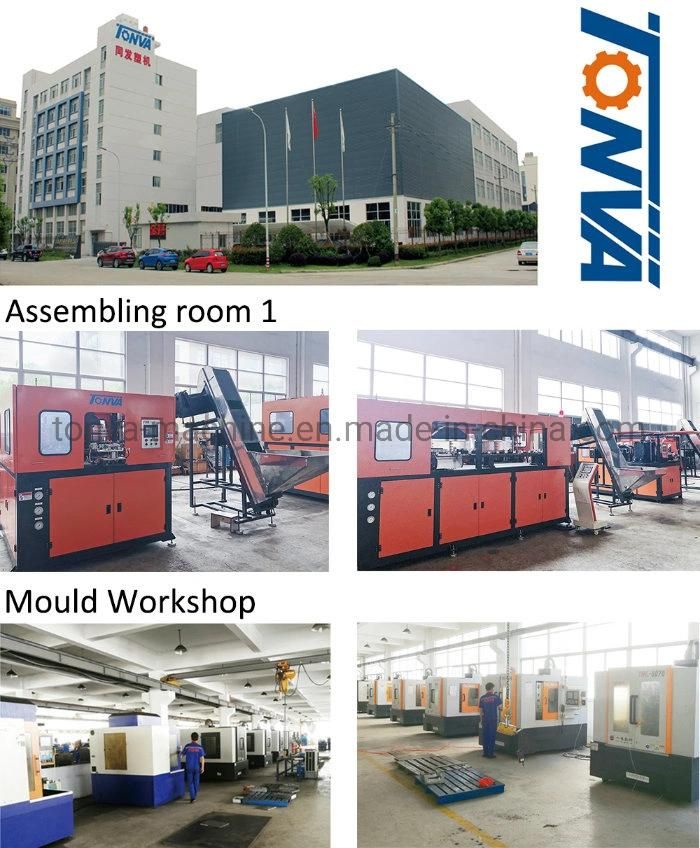

3. Our Company
When it comes to innovative and full range of blow molding machines and molds, you need focus on no further than our TONVA machine in China, which established since 1993. TONVA 's pioneering technologies , rich experience of our strong R&D team, and good service have allowed us to be one of the leaders of this plastic industrial for over 25years.




Our clients in a wide range of plastic industry sectors, such as: daily using, toy, chemical container,agrochemical, pharmaceuticals, automobile, food, traffic using etc, volume range from 3ml to 5000L, single layer to 6layers, single color to three colors,which are all available on TONVA machine production, clients from more than 80 countries, have to come rely on the knowledge and technologies of a brand which stand for both quality and reliability.





4. Contact us
Contact: Hebe Tong
