60 Liter Wide Mouth Blue Drums Automatic Extrusion Blow Molding Machine
ZHEJIANG JWELL PIPE EQUIPMENT CO., LTD.- Type:Extrusion Blow Molding Machine
- Raw Material:HDPE
- Making Method of Parison:Extrusion-Blow Molding
- Automation:Automatic
- Computerized:Computerized
- Certification:CE, ISO9001:2008
Base Info
- Model NO.:BEK-BM100S
- Model:Bek-Bm30,50,100d
- Application:Bucket,Jerry Can,Open Barrels,Open Top Drums
- Material:PE
- Co-Extrusion:Optional View Strip Line
- Die Head Structure:Accumulating
- Product Size:30-100L
- System:Hydraulic Servo Control System
- Main Screw:90-120mm
- Output:180-280kgs
- Platen Size:740*740,880*880,1020*1000mm
- Total Power:115-195kw
- Production Time:45-90days
- Transport Package:Best Package for Sea or Train
- Specification:customization
- Trademark:Bekwell & Jwell
- Origin:Bekwell&Jwell
- HS Code:84774010
- Production Capacity:200set,Years
Description
Accumulating typeMain screw diameter Mm 80 90 100 Max plasticizing capacity (PE) Kg/h
150 180 190 Driving motor Kw 37 45 55 Accumulating volume L 5.2 6.2 12.8 Oil pump motor power Kw 15 18.5 22 Clamping force Kn 280 400 600 Space between platen Mm 400-900 450-1200 500-1300 Platen size W*H Mm 740*740 880*880 1020*1000 Max. mold size Mm 550*650 700*850 800*1200 Heating power of die head Kw 20 28 30 Machine dimension L*W*H M 4.3*2.2*3.5 5.6*2.4*3.8 5.5*2.5*4.0 Machine weight T 12 13.5 16 Total power Kw 95 110 135
Technical parameters of machine(double station) Accumulating typeMain screw diameter Mm 90 100 120 Max plasticizing capacity (PE) Kg/h
180 220 280 Driving motor Kw 55 75 110 Accumulating volume L 5.2 6.2 12.8 Oil pump motor power Kw 18.5 22 30 Clamping force Kn 280 400 600 Space between platen Mm 400-900 450-1200 500-1300 Platen size W*H Mm 740*740 880*880 1020*1000 Max. mold size Mm 550*650 700*850 800*1200 Platen moving stroke Mm 1400 1800 1900 Heating power of die head Kw 20 28 30 Machine dimension L*W*H M 5.2*8.5*3.5 5.6*9.2*3.8 6.0*10.2*4.2 Machine weight T 16 23 25 Total power Kw 115 145 195 Blow moulding machine/extrusion blow molding machine samples:
![60 Liter Wide Mouth Blue Drums Automatic Extrusion Blow Molding Machine](http://www.676102.com/uploads/image/2021/da/5c/57/bf/99c4bfff59f7cb409b01b0e56c4fb7ed.jpg)
![60 Liter Wide Mouth Blue Drums Automatic Extrusion Blow Molding Machine](http://www.676102.com/uploads/image/2021/b4/f1/97/a3/8bfd063d74ba54ae6cd8e383e26a43b2.jpg)
![60 Liter Wide Mouth Blue Drums Automatic Extrusion Blow Molding Machine](http://www.676102.com/uploads/image/2021/a4/3e/57/96/0261ae8d16b4ea4ad92fadef63128f9b.jpg)
![60 Liter Wide Mouth Blue Drums Automatic Extrusion Blow Molding Machine](http://www.676102.com/uploads/image/2021/bc/f4/a0/54/69945ef5c0f0874d2d49259088441088.jpg)

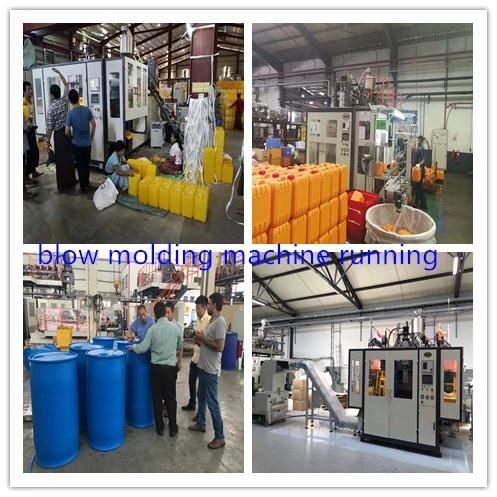

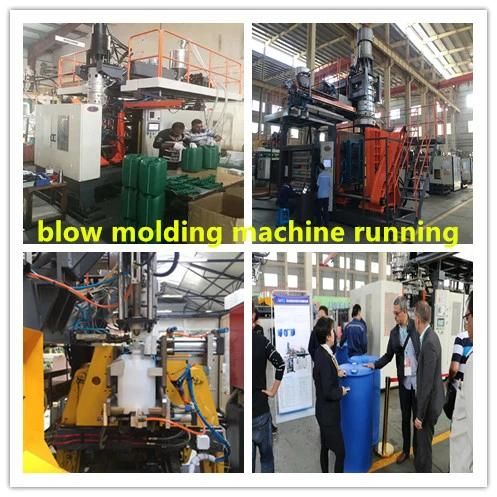

Extrusion Blow molding machine running in our customer workshop
![60 Liter Wide Mouth Blue Drums Automatic Extrusion Blow Molding Machine](http://www.676102.com/uploads/image/2021/a0/10/03/fd/343cf6d32ecb41f3c83bb175297b1d39.jpg)
![60 Liter Wide Mouth Blue Drums Automatic Extrusion Blow Molding Machine](http://www.676102.com/uploads/image/2021/30/16/90/7c/5e4f7d13cede9e0b11c16fb1e76d81b2.jpg)
Different kind of Control system of machine

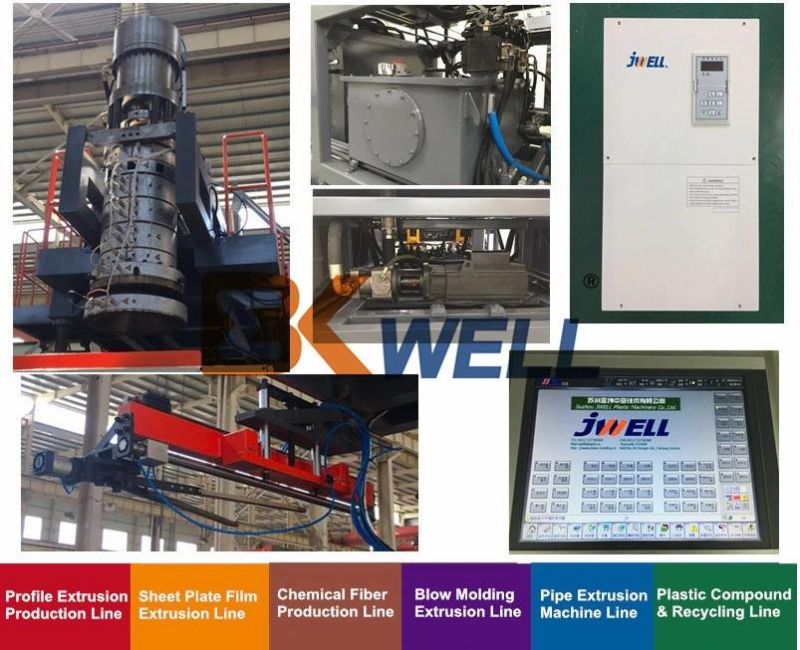

Extrution & Die head
No1.The extruder uses screw and barrel, which is a famous brandJINHAILUO all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
No2.Bekwell& Jwell supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
No1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
No2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
No1.Take out robot
No2.Scrapping collect together, convey,crusher into one unit
Hydrulic system
No1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
No2.optional hydraulic could sace about 50% energy

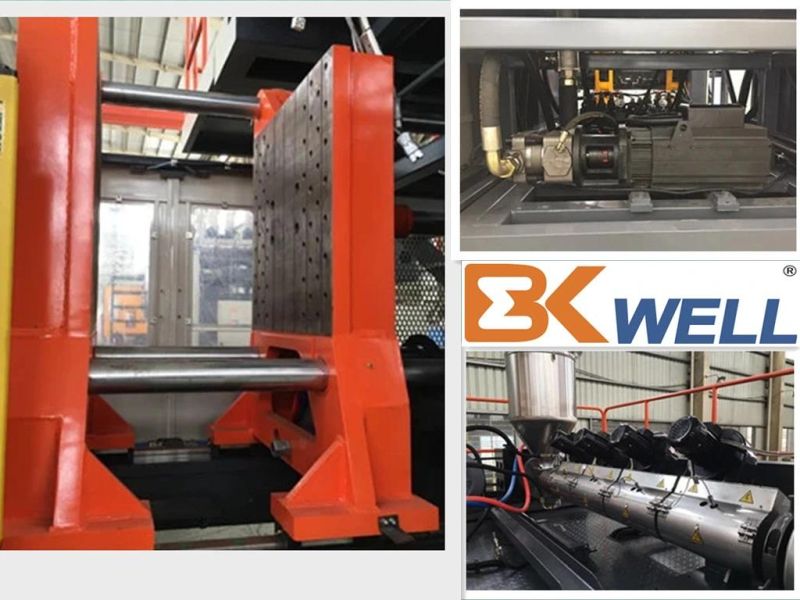

Open&Closing system
No1.Common three platen and three tie bar struction
Toggle struction
No2.Lubrication system
lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.

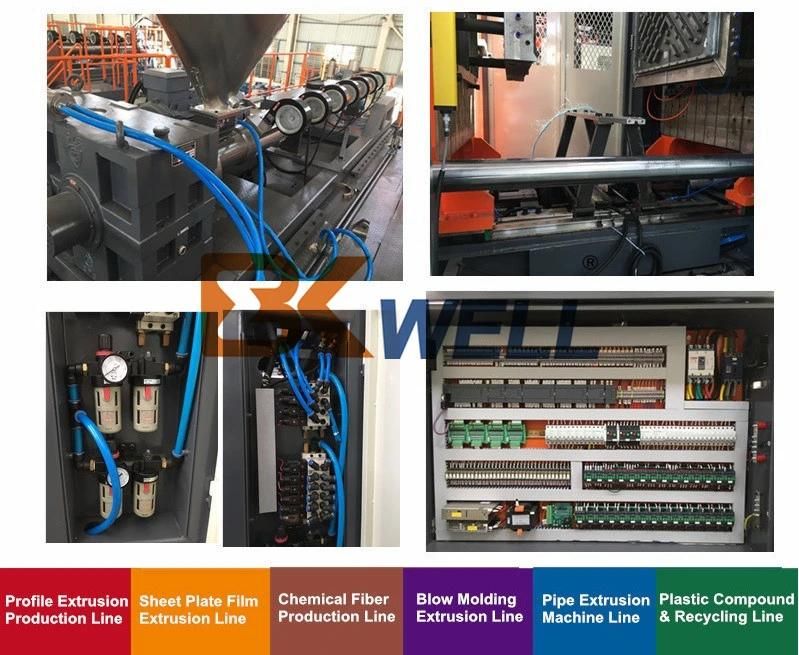

Electric systemNo1.SIEMENS CPU unitNo2.SIEMENS temperature-control unitNo3.SIEMENS digital-output unitNo4.SIEMENS analog-output unitNo5.MITSUBISHI CPU unitNo6.JWELL invertor revolving speed-controlNo7.Schneider electric components
![60 Liter Wide Mouth Blue Drums Automatic Extrusion Blow Molding Machine](http://www.676102.com/uploads/image/2021/79/82/08/4b/2613d5e8ddb57a1a2023c57573c1fced.jpg)
![60 Liter Wide Mouth Blue Drums Automatic Extrusion Blow Molding Machine](http://www.676102.com/uploads/image/2021/94/15/36/a8/3ad255ac8938605c03568b831d88dca8.jpg)
![60 Liter Wide Mouth Blue Drums Automatic Extrusion Blow Molding Machine](http://www.676102.com/uploads/image/2021/b2/0c/98/16/4047a19d123731f3127e1d056f9d2560.jpg)
seals service network
![60 Liter Wide Mouth Blue Drums Automatic Extrusion Blow Molding Machine](http://www.676102.com/uploads/image/2021/a0/47/7e/96/74025e65f84c6c4a8c7e24fd683929c6.jpg)
Contact us !!
Foshan Bkwell intelligent equipment co.,ltd
Add: E04-1-04BLOK,LUNJIAO INTENSIVE INDUSTRIAL ZONE,SHUNDE DISTRICT,FOSHAN,CHINA
Web:jwellmachinery.en.made-in-china.com
jwellmachinery.en.made-in-china.com
![60 Liter Wide Mouth Blue Drums Automatic Extrusion Blow Molding Machine](http://www.676102.com/uploads/image/2021/a7/ea/28/ae/174ccd599a9eedea365ab2f686dde431.jpg)
1. What are BEKWELL (JWELL new company in foshan china) coming from?
BEKWELL(Jwell)made the first Chinese screw and barrel in 1978 in brand name Jinhailuo after hundreds time of testing. Nowaday, in this location Zhoushan city, there are more than 300 companies in this reason. After more than 35 years development, JWELL is the TOP 1 extrusion machine supplier in China with 5 factories, 300 design&test engineer, 3000 employee located in Zhoushan, Shanghai, Taicang, Dongguan, FOSHAN, Liyang.
2. Why should I choose Jwell?
We follow Germany type of business heading as the worldwide reliable supplier of plastic extrusion line. We have already provided more than 500 lines located in all countries because we are providing the lastest technology, qualified machine, reliable component and best after-service. 300 Engineers are travelling in the world throughout year for installation and test of machine, the after-service are free and availble forever. That's why we grow up from 10 staff company to 3000 staff Pioneer of Chinese extrusion machine supplier.
3. Are U the only JWELL in MADE IN CHINA?
Right! There are many many supplier with name Jwell in MADE IN CHINA, but we are the only approval sale manager working in MADE IN CHINA. Please donot be cheated by other company in the name of JWELL screw, Jwell extruder, Jwell line, etc. They're all unhonest and untrustworthy supplier!
For more infomation about Jwell blow-molding machine, please contact Jade Liang
Welcome to BEKWELL / Jwell!
