• Model NO.：PS-600
• Knife Roll：Solid Knife Roller
• Automation：Automatic
• Computerized：Non-Computerized
• Certification：CE
• Name：Plastic Crusher
• Used for：Plastic Bottle
• Transport Package：Wrap Film
• Specification：PS-600
• Trademark：QIANGYE
• Origin：Guangdong, China (Mainland)
• HS Code：8450209000
• Production Capacity：50sets,Month

Basic Info.

Model NO. PS-600 Knife Roll Solid Knife Roller Automation Automatic Computerized Non-Computerized Certification CE Name Plastic Crusher Used for Plastic Bottle Transport Package Wrap Film Specification PS-600 Trademark QIANGYE Origin Guangdong, China (Mainland) HS Code 8450209000 Production Capacity 50sets/Month

Product Description

Model	Rotor size  (mm)	Capacity (KG/H)	Motor power (KW)	Feeding hopper L*W(mm)	Dimension (mm)	Total weight (KG)
PS-600	Φ420x600mm	400-700 kg/h	22kw	600x400 mm	1620x1380x2320mm	1800kg
PS-900	Φ540x900mm	700-1000 kg/h	37kw	900x600 mm	2128x1790x3050mm	3500kg
PS-1200	Φ540x1200mm	1000-1300 kg/h	55kw	1200x600 mm	2430x1790x3050mm	5600kg

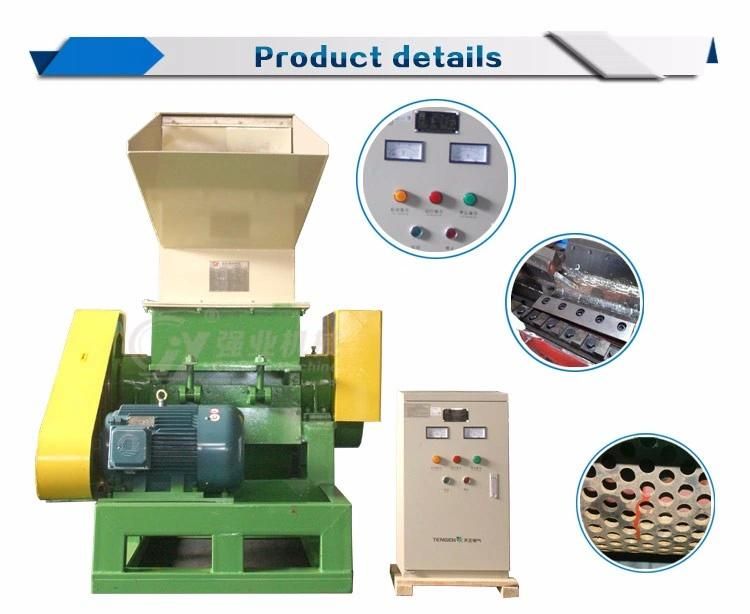

Crusher mainly consists of motor, rotary shaft, moving knives, fixed knives, screen mesh, frame, body and discharging door.
Fixed knives are installed on the frame, and equipped with a plastic rebound device. Rotary shaft is embedded in thirty removable blades, when using blunt can be removed to separate grinding, rotate to be helical cutting edge. So the blade has long life, stable work and strong crushing capacity. Sometimes when equipped with a winding conveying device, the discharging system could be much convenient and realize bagging automatically.
Mainly usage includes all kinds of plastic lumps, bullion, PET bottle, PP PE film, woven bags, fishing nets, fabrics etc. Raw material will be crushed into 10mm-35mm (customized) with different sizes of screen meshes.
Main feature:
1. Multi-functional crusher, could choose different blade and shaft structure to meet different material. Crushed material is very small, could be directly used for pelletizing or other recycling;
2. Motor and shaft is directly connected by belt, ensuing high rotating speed and efficiency;
3. Whole machine is an integrated sealing structure, fame is specially processed, can effectively reduce vibration
