• Model NO.：K2000
• Computerized：Non-Computerized
• Certification：CE, ISO9001:2008, SGS
• Drive Mode：Full Pneumatic
• Clean Mode：Self-Cleaning by Air
• Applicable Materials：Polyurethane
• The Ratio of Raw Material：1:1
• Max Working Pressure：15MPa
• Max Output：10kg,Min
• Max Heated Hose Length (Optional)：45m
• Transport Package：Plywood Case
• Specification：90*75*143CM
• Trademark：Reanin
• Origin：Shandong
• HS Code：8424899990
• Production Capacity：80 Sets, Month

Basic Info.

Model NO. K2000 Computerized Non-Computerized Certification CE, ISO9001:2008, SGS Drive Mode Full Pneumatic Clean Mode Self-Cleaning by Air Applicable Materials Polyurethane The Ratio of Raw Material 1:1 Max Working Pressure 15MPa Max Output 10kg/Min Max Heated Hose Length (Optional) 45m Transport Package Plywood Case Specification 90*75*143CM Trademark Reanin Origin Shandong HS Code 8424899990 Production Capacity 80 Sets/ Month

Product Description

K2000

Description

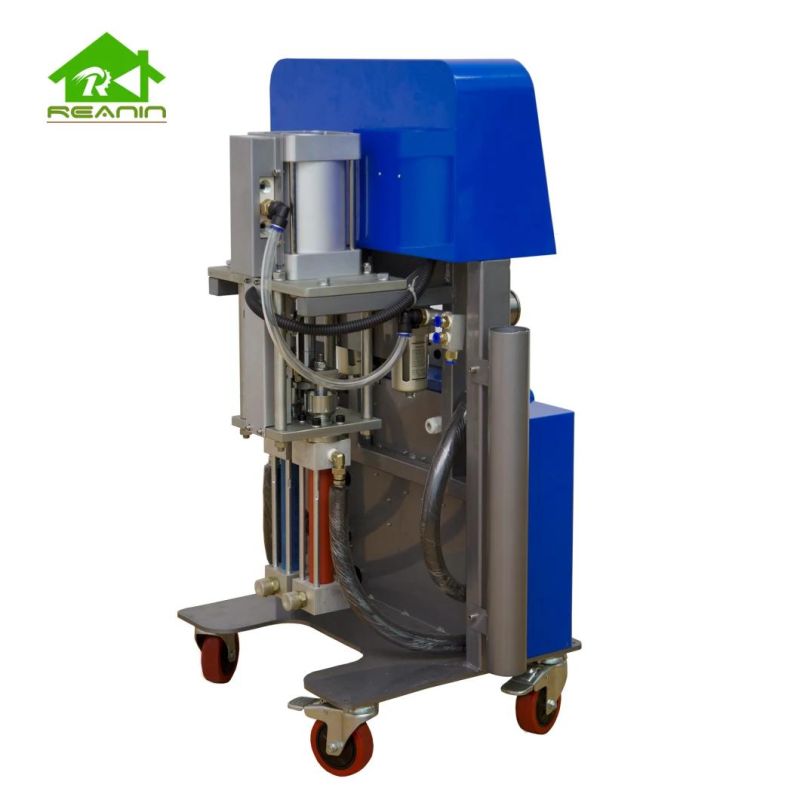

Reanin-K2000 is a portable, economical and practical polyurethane spray and injection machine, suitable for two-component polyurethane spray technology. It is small in size, easy to operate and maintain, and is especially suitable for small area projects.

Application

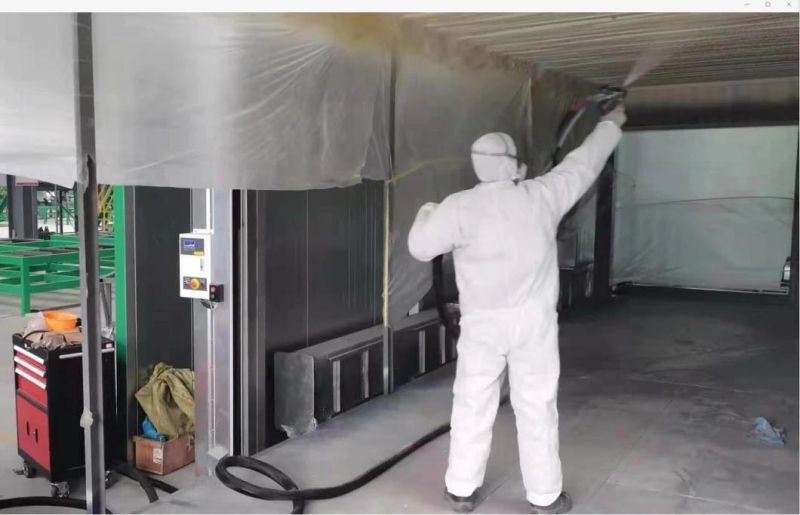

construction, automobile, road, railway, shipbuilding, mining, petroleum, electrical, and other industries.




Advantages
1.This machine has pass the CE certificate,
2.Panel with operation tips is easy to set up,
3.Fully pneumatic design, it can work normally  without electricity,
4.The booster pump is simple in structure and easy to disassemble and maintain,
5.The stop reset function can make the booster pump shafts always infiltrated in the booster pump, which can avoid damage to the seals and booster pump shafts caused by ISO crystallization,
6.A/B/Hose independent temperature control, can set different temperatures separately, adapt to the temperature requirements of different material,
7.Variable frequency temperature control mode and special real-time temperature collection sensor ensure that the material temperature is controlled within a small fluctuation range,

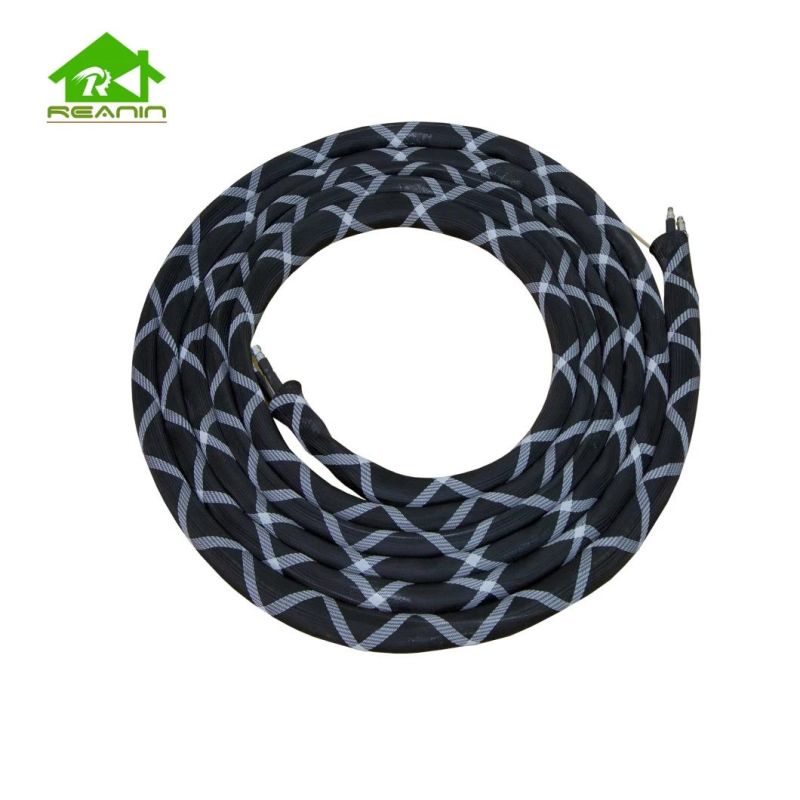

8.The integrated heated hose is covered with wear-resistant insulating sleeve, which not only can effectively keep the temperature of the material, but also can prevent the occurrence of leakage, short circuit, etc.
9.The transfer pumps, mainframe and spray gun are equipped with filtering devices, which can effectively filter impurities and crystals in the materials and reduce the occurrence of the blocking gun,
10.High-precision pressure gauges are available in MPA and PSI to meet the needs of different customers,
11.Equipped with an action counter to accurately calculate the amount of raw materials,
12.The spray gun is made of alloy material, light weight, less wearing parts, easy to use and maintain.



Technical Parameters


Model	Reanin-K2000 Polyurethane Spray Machine
Applicable materials	Polyurethane
The ratio of raw material	1:1
Viscosity range of raw materials	200-1000CPS (under working temperature)
Max working pressure	15MPa
Max fluid temperature	80°C
Max output	10kg/min
Max heated hose length (Optional)	45m
Heater power	3000W×2
Heated hose max power	2000W
Drive mode	Full pneumatic
Clean mode	Self-cleaning by air
Voltage (Optional)	Single phase 220V 50Hz or Three phase 380V 50Hz
Whole power	9kw
Pneumatic source	0.5-0.8Mpa 1m³/min

Standard Configuration:



Reanin-K2000 mainframe	1 set
Reanin spray gun	1 set
Transfer pump	2 sets
Heated hose	15m
Transfer pump hose	2 pcs
Whip hose	2 pcs
Air pipe	1 set
Tools and spare parts	1 set
English user manual	1 set

Transportation Parameters (Based on standard configuration):


Model	Reanin-K2000 Polyurethane Spray Machine
Package size (LXWXH)	90X75X143cm
Net weight	151kg
Gross weight	185kg

FAQ

About us:

Shandong Reanin Machinery Co.,Ltd is one of the leading manufacturers of polyurethane and polyurea equipment in China. It has a modern production plant of over 2,000 square meters and an excellent team of engineers. Our products are exported to more than 30 countries and regions, serving more than one thousand customers around the world.Shandong Reanin Machinery Co.,Ltd has five carefully designed products for different customers. K2000 and K3000 are pneumatic spray machine, for spraying polyurethane. The K5000 is an ultra-high pressure pneumatic machine that can spraying polyurethane and polyurea both. K6000 and K7000 are hydraulic driven machine for spraying polyurethane and polyurea both. Shandong Reanin Machinery Co.,Ltd not only provides polyurethane polyurea spray equipment, but also provides related products, such as polyurethane materials, polyurea materials, generator sets and air compressors, etc. We provide customers with professional polyurethane and polyurea industry solutions. Welcome to contact us!
