• Model NO.：MD-ABA
• Machine Weight：3000kgs
• Certification：CE, ISO9001:2008
• Temperature Controller：China Frist Brand Xiamen Yudian
• Transport Package：Nude Packing
• Specification：4.5× 2.2× 6.5(meter)
• Trademark：MINGDE
• Origin：China
• HS Code：8477209000
• Production Capacity：50sets,Year

Basic Info.

Model NO. MD-ABA Machine Weight 3000kgs Certification CE, ISO9001:2008 Temperature Controller China Frist Brand Xiamen Yudian Transport Package Nude Packing Specification 4.5× 2.2× 6.5(meter) Trademark MINGDE Origin China HS Code 8477209000 Production Capacity 50sets/Year

Product Description

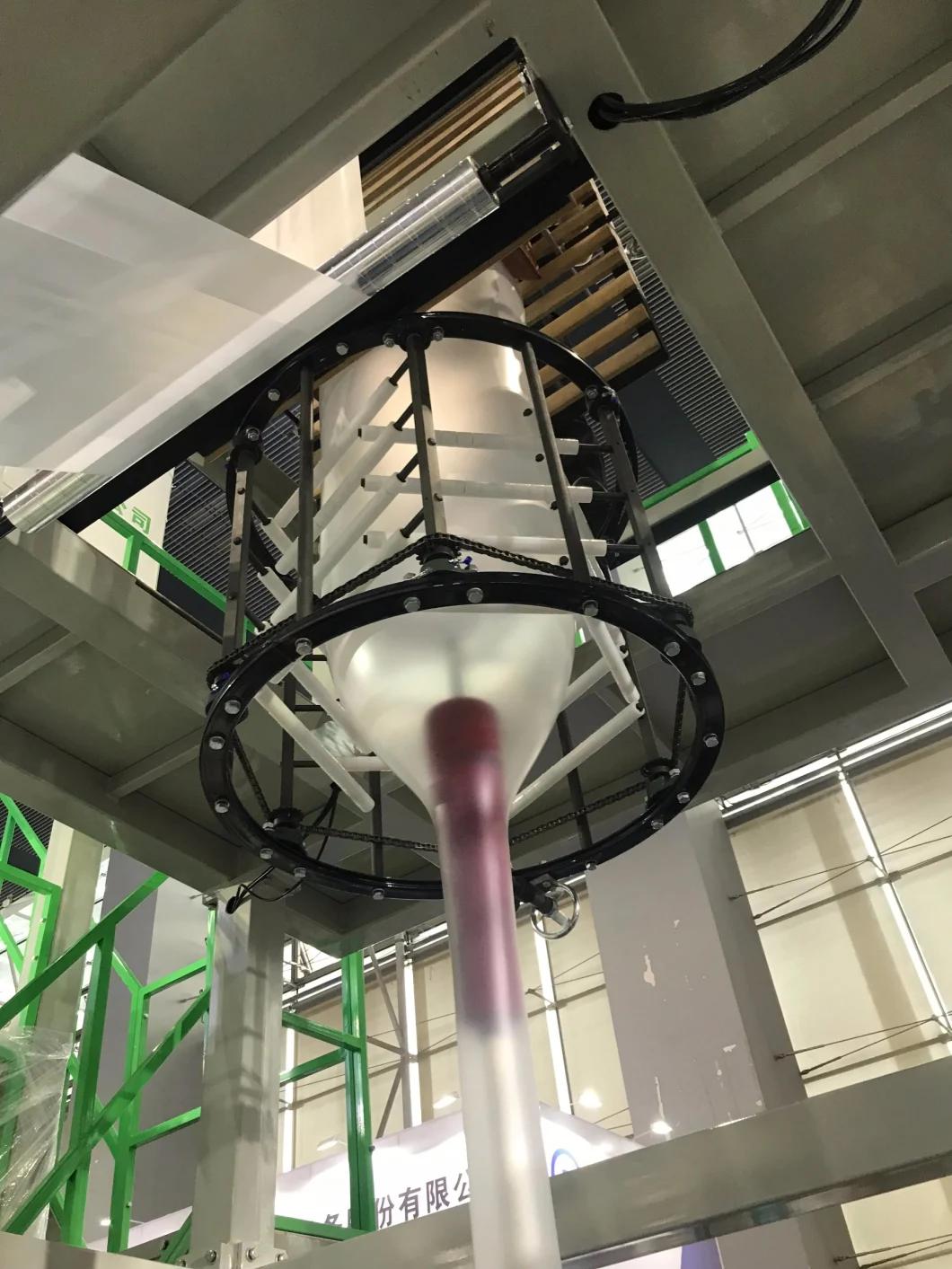

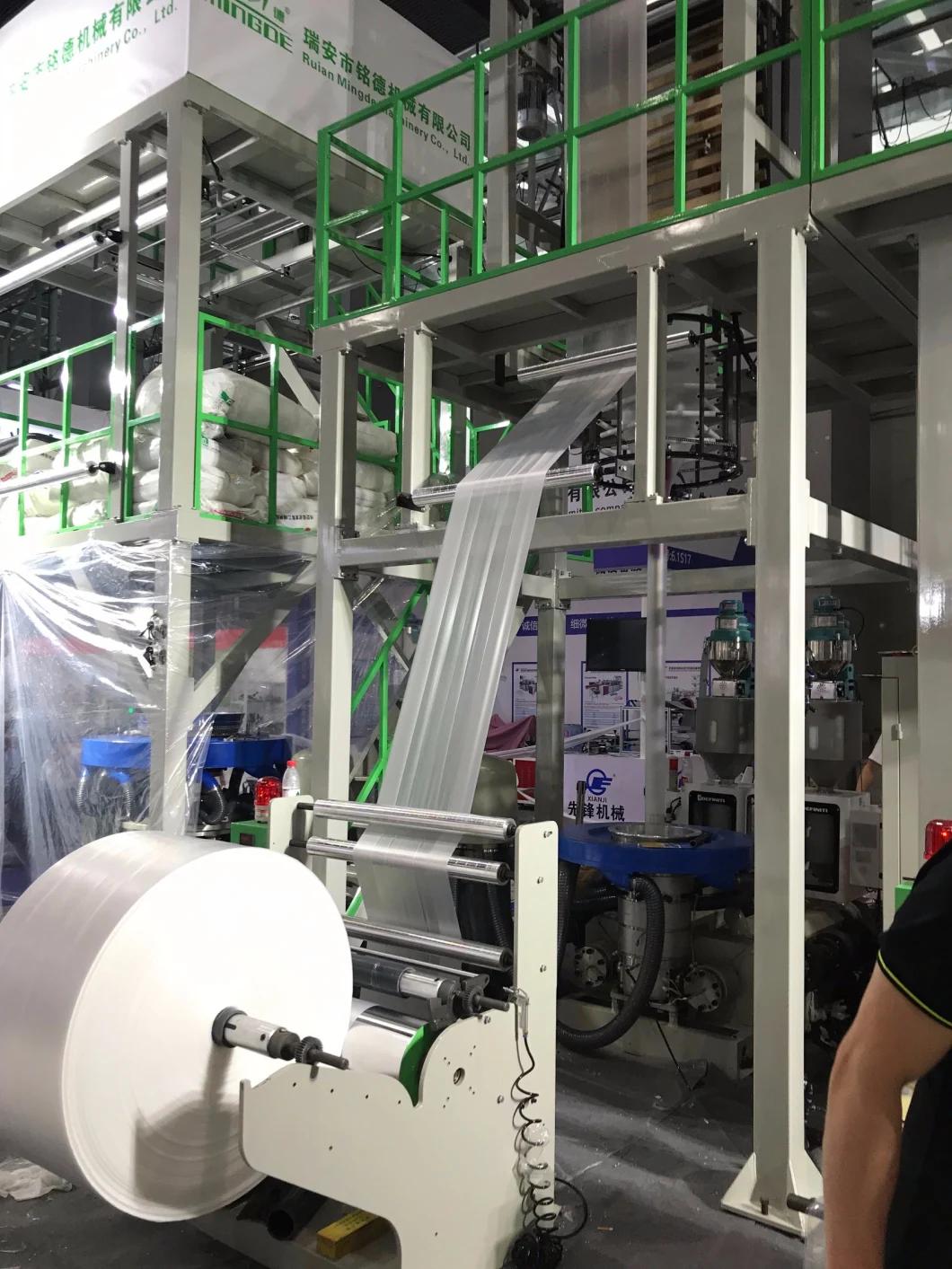

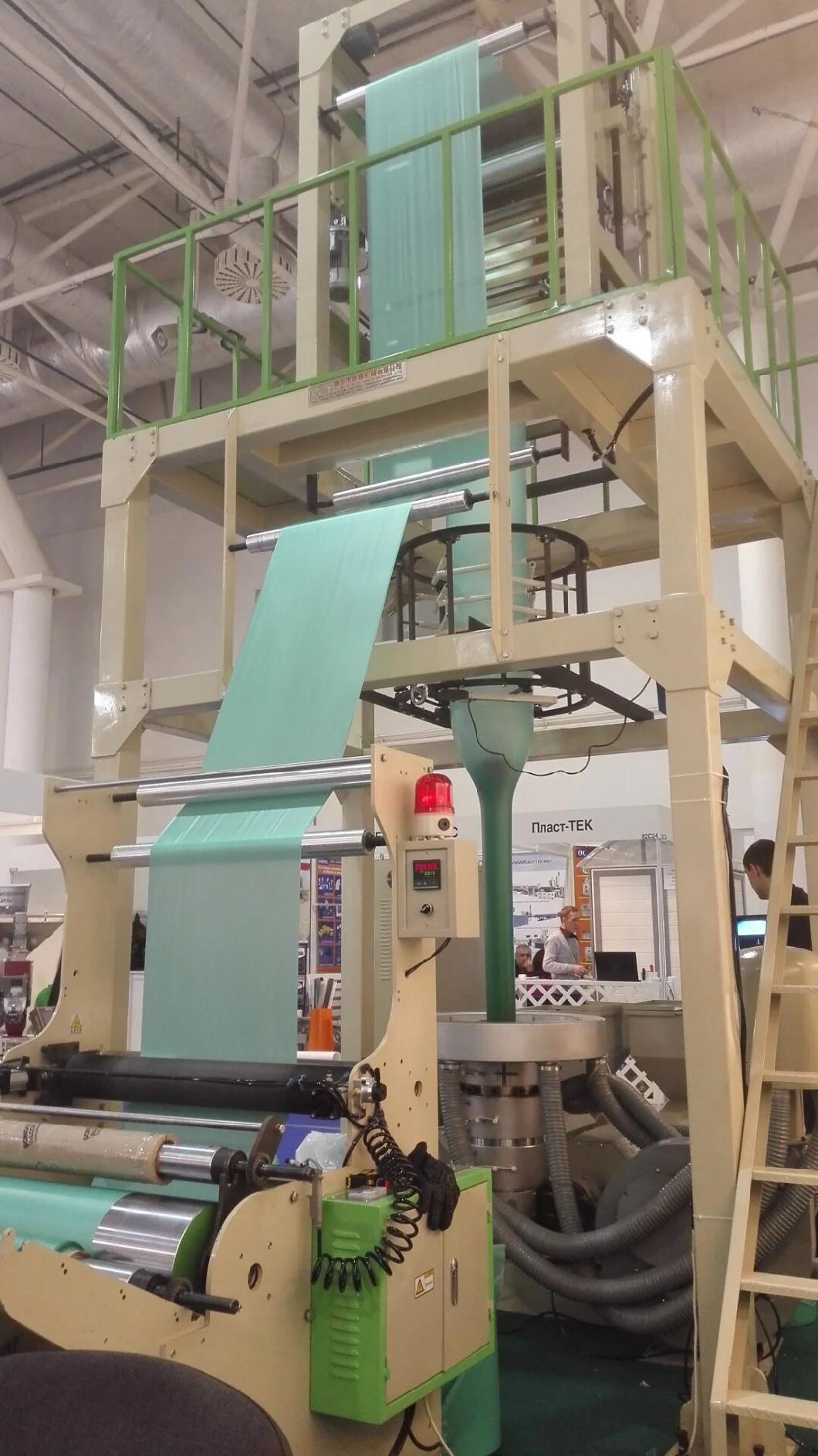

Top High Speed ABA 3 2 Layer Mini Stretch HDPE LDPE PE Film Extruder Agriculture Polyethylene Plastic Film Blowing Machine Price

Model	MD-ABA50,55
Suitable Material	HDPE,LDPE
Max Film Width(mm)	1200
Film Thickness(mm)	0.012-0.12mm
Max Extrusion Output	120kg/hr
Gear Box	146X1,173×1
Screw Diameter(mm)	φ50×1,  φ55×1
Screw L/D Ratio	28:1
Screw's Material	38CRM(55
Barrel's Material	38CRM
Barrel's Cooling Fan	370W×2×2
Thermo Control (zone)	3×2
Driving Motor (kw)	18.5kwx1,22×1

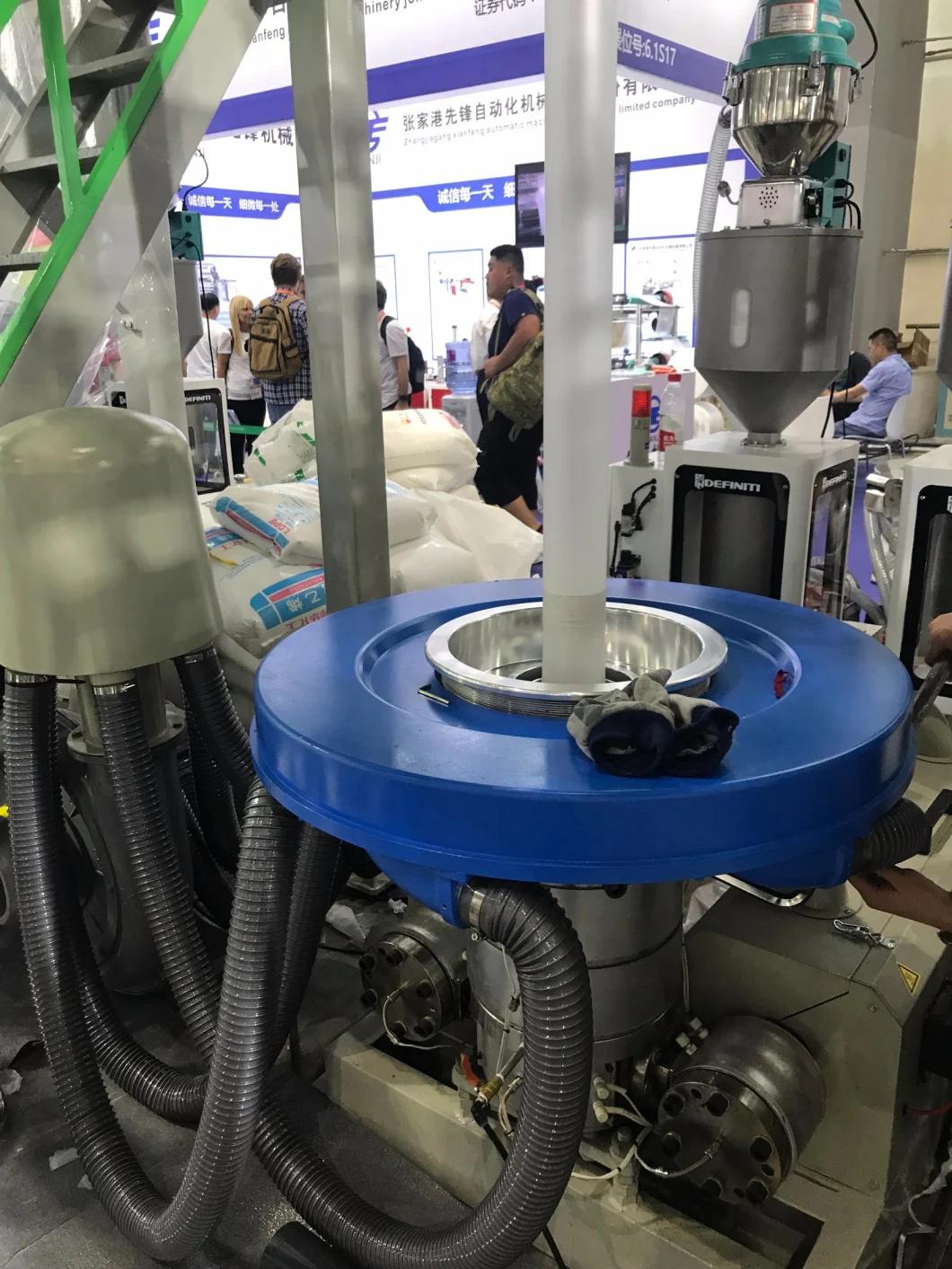

Die Size (mm)	HD:φ150 LD250
Screen Changer	Normal
Thermo Control (zone)	3
Air Ring	1
Cooling Blower (kw)	5.5
Center Steady Stick	1
Roller Width (mm)	φ138×1300
Embossing Roller Width	700mm
Take-UP Motor (kw)	1.1
Take-UP Speed(M/min)	10-60
Height adjustable type	yes

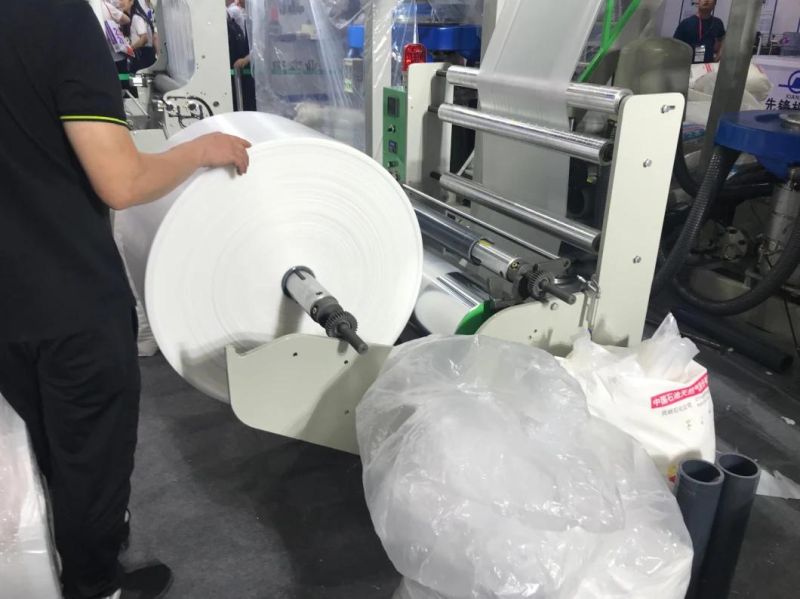

Type OF Winder	Single winder with air shaft
Roller Width (mm)	1300
Winding Motor (N.M)	16
Winding Speed(M/min)	10-80
Voltage	380V,3P,50HZ
Cover Dimensions (m)	4.5×2.2×6.5

Company:




Ruian Mingde Machinery Co., Ltd got its start in 2010 and built a modern manufacturing complex in Ruian. Although we are a young firm, we are outfitted with a team of dedicated and loyal employees who put heavy concentration and focus on how to boost our product quality and competiveness. Near Shanghai Port, we enjoy a convenient location, which allows us to deliver our good condition paper converting machinery to clients in an ultra-fast fashion.  To date, we have attracted and kept countless customers both at home and abroad.

Our company, Mingde is the best choice for paper container manufacturer.Believe your choice, believe in our company. We sincerely look forward to working with you hand in hand to create success altogether.

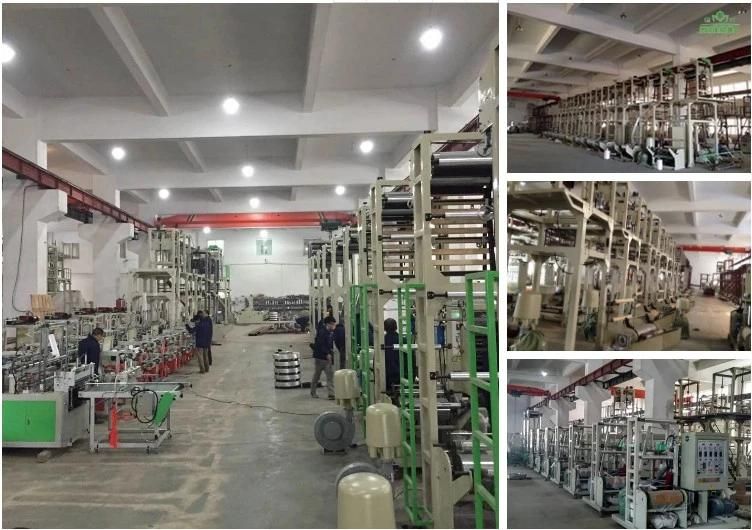

Workshop & Shipping:

Certificate:




Service:
Our company will provide you the good after services. We can help you solve the problem through video, email, phone, 24 hours hot line. If needed, we can also let our engineer go to your country to solve the problem. We hope all the customers will be satisfied with our machines and services.
Exhibition:

FAQ:
1.Trade company or manufacture?

we are a manufacture of paper cup machine.
2.How to tour our factory?

Some lines you can chooes. First, you can come to guangzhou air port, then by air to wenzhou air port, then we can go whenzhou air port to pick up you.

Second, you can to shanghai, then from shanghai air port to whenzhou air port or by the fast train ruian then we go air port or train station to pick up you.

3.What about the warranty?

All our machine have one year warranty. if the machine speres broken because the quality not good, then we can provide the spares for you by free.

4.What about the traning?

We welcome you learn the machine use in our factory. before the machine finished you can come to our factory , we can arrange the enginner teach you the simple operate. we provide the food for you.

5.About the machine shipping?

Normal our machine send to customers by sea, port to port almost used. like FOB, CIF.

6.About the machine packing?

Our machine normal use the nude packing. if you need wooden case packing and require fumigation, before order you need tell us so we arrange for you.
