Automatic High Speed Extruder Line for PP Woven Bag

Wenzhou Kewang Machinery Co., Ltd
  • Type：Sheet Extruder
  • Plastic Processed：PP,PE
  • Product Type：Granulating Extruder
  • Feeding Mode：One Feed
  • Assembly Structure：Separate Type Extruder
  • Screw：Single-Screw

Base Info

  • Model NO.：SJMS
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Condition：New
  • Max Extrusion Output：200-700kgs,H
  • Width of Die：850-2000mm
  • Dimensions of Bobbin：38*230
  • Flat Yarn Denier Scope：60-200tex
  • Tape：PP PE Tape Drawing Machine
  • Transport Package：as Your Reqeust
  • Specification：SGS
  • Trademark：KWXJ
  • Origin：Wenzhou, Zhejiang
  • HS Code：8479400000
  • Production Capacity：60 Set Per Year

Description

TypeSJMS-Z75-33-850*8SJMS-Z90-33-1000*8SJMS-Z110X33-1200*8SJMS-Z120X33-1500*8SJMS-Z160X33-2000*8Max extrusion output(kg/h)200280380500630Diameter of Screw(mm)7590110120160L/D ratio of screw33: 133: 133: 133: 133: 1Rotational speed of screw(r/min)20-12020-12020-12020-12020-100Width of die(mm)8501000120015002000Man linear speed(m/min)280280400400400Flat yarn denier scope60-200tex60-200tex60-200tex60-200tex60-200texDrawing rate4-104-104-104-104-10Number of winder(spindles)136176208256344Dimensions of bobbin(D*L)mm38*23038*23038*23038*23038*230System installed power(kw)120160170210250Normal consumption power120160170210250Installing dimensions(L*W*H)mm29000×3600×320032000×3600×320034000×3800×320037000×3800×320045000×3800×3200Weight(kg)2100026000300003200040000

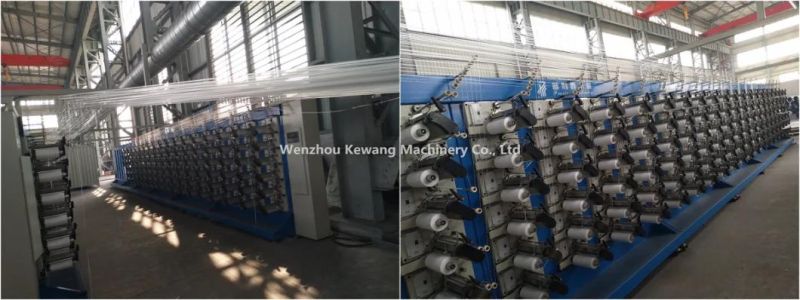

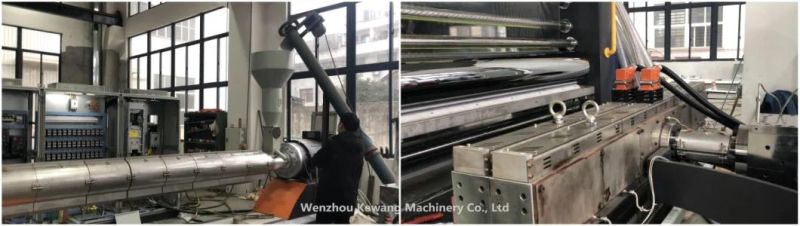

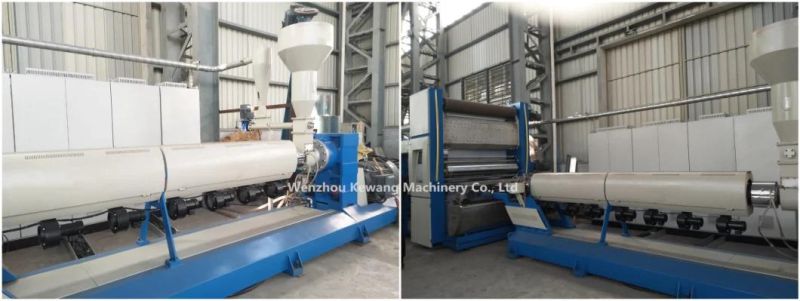

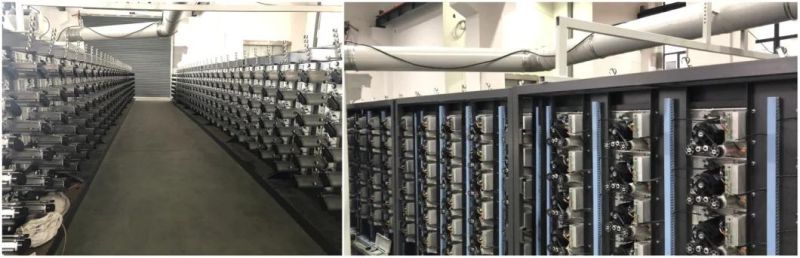

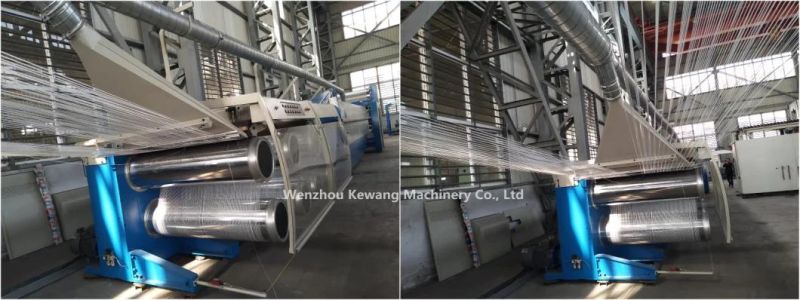

Machine photos and patents:

Automatic High Speed Extruder Line for PP Woven BagAutomatic High Speed Extruder Line for PP Woven Bag
Automatic High Speed Extruder Line for PP Woven Bag
Automatic High Speed Extruder Line for PP Woven Bag
Automatic High Speed Extruder Line for PP Woven Bag
Automatic High Speed Extruder Line for PP Woven Bag
Automatic High Speed Extruder Line for PP Woven Bag
Automatic High Speed Extruder Line for PP Woven Bag
Automatic High Speed Extruder Line for PP Woven Bag

Our Service


Warranty

* 1 year warranty
* Any part of electronic ,if it's not cause by man-made reasons,we will ship you a free new one.
* If beyond warranty,we offer free repair service,Clients need undertake ship cost

After-Sales Service

* Training how to instal the machine, training how to use the machine.
   Engineers available to offer service overseas.but client please undertake travelling expenses for them.


FAQ

Q: Are you trading company or manufacturer ?


A: We are factory which have export right. We have exported our machine to so many countries like Pakistan,Malaysia Indonesia,Philippines,Egypt,Turkey,Russia,Ukraine,Serbia,Moldova&Colombia.

Q: How long is your delivery time?


A: Generally it is 50 days after getting deposit.


Q: What is your terms of payment ?


A: Usually 30% T/T in advance ,balance before delivery.
