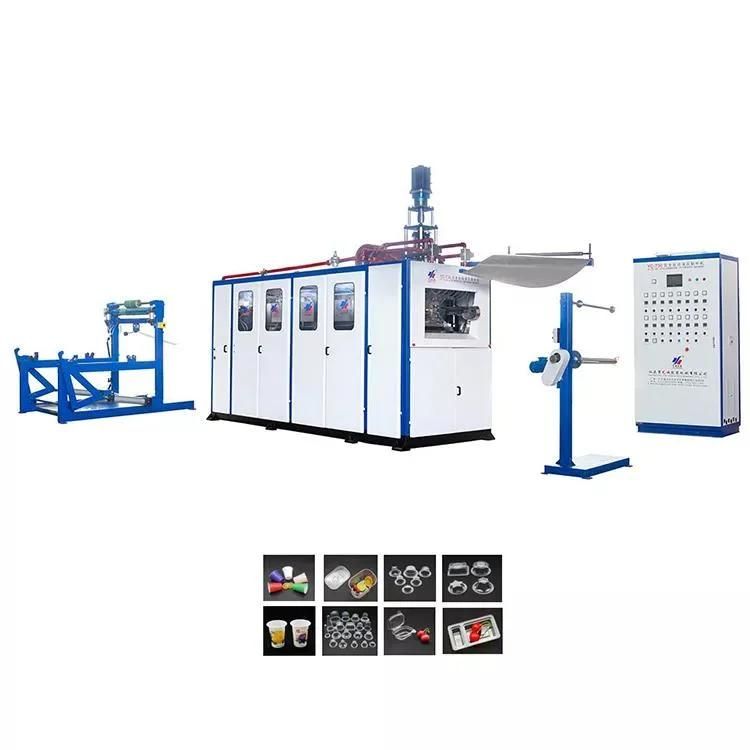

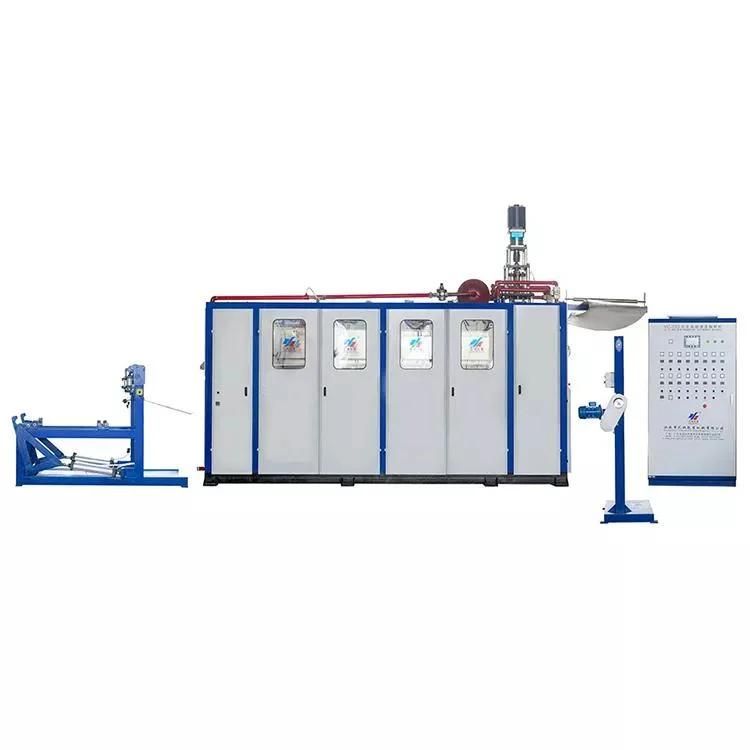

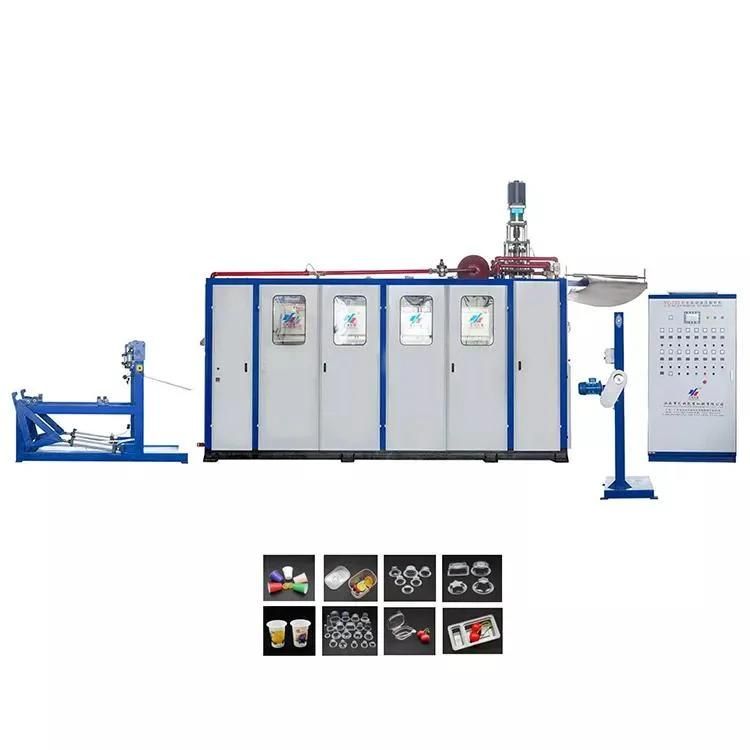

Yc-660 Cheap Price Automatic Plastic PP PE Making Machine Disposable Cup Thermoforming ...
Shantou Feiteng Trading Co., Ltd.- After-sales Service：Training How to Install and Use The Machine
- Warranty：1 Year
- Certification：CE
- Molding Method：Plastic Thermoforming Machine
- Automatic Grade：Automatic
- Max.Forming Height(mm)：80 mm
Base Info
- Model NO.：YC-660 Cup Making Machine-2
- Forming Length (mm)：350mm
- Width of Sheet：650X350mm
- Sheet Thickness(mm)：0.3-2.0mm
- Water Comsumption(L/Min)：40-45L,Min
- Depth of Forming：<=140mm
- Heating Rated Power：70kw
- Sheet Sending Motor：2.2kw
- Forming Width (mm)：650mm
- Production Speed(Cycles/Min)：30
- Power：79.7kw
- Working Efficiency：<=30,Min.
- Air Pressure(MPa)：0.6-0.8MPa
- Heating Power (Kw)：70kw
- Air Comsumption(L/Min)：3200-4000 L,Min
- Transport Package：Film and Wood Carton Packaging. by Truck,Ship
- Specification：3500 x 1580 x 2300 mm
- Trademark：OEM,ODM
- Origin：Guangdong, China
- HS Code：8422110000
- Production Capacity：100 Sets Per Year
Description
Basic Info.
Model NO. YC-660 Cup Making Machine-2 Forming Length (mm) 350mm Width of Sheet 650X350mm Sheet Thickness(mm) 0.3-2.0mm Water Comsumption(L/Min) 40-45L/Min Depth of Forming <=140mm Heating Rated Power 70kw Sheet Sending Motor 2.2kw Forming Width (mm) 650mm Production Speed(Cycles/Min) 30 Power 79.7kw Working Efficiency <=30/Min. Air Pressure(MPa) 0.6-0.8MPa Heating Power (Kw) 70kw Air Comsumption(L/Min) 3200-4000 L/Min Transport Package Film and Wood Carton Packaging. by Truck/Ship Specification 3500 x 1580 x 2300 mm Trademark OEM/ODM Origin Guangdong, China HS Code 8422110000 Production Capacity 100 Sets Per YearProduct Description
The main performance and structure features:
This thermoforming machine was made by the international newest plastic sheet material formation processing technology Assemble machine/electricity/Air press Integrated design,Uses the microcomputer and the programmable controller (PLC) control.Interface operation, Namely delivers the plastic sheet material formation equipment which the piece, complete. the heating, the formation, the cutting edge, pile up one time
Main technical parameters:
