• Model NO.：GC
• Suitable Material：PP, PS, Pet, PVC etc
• Max Forming Depth：180mm
• Forming Speed：15-35 Shots,Min
• Forming Area：750*350
• Function：Making Plastic Cups, Bowls, Containers etc
• Sheet Thickness：0.3-2mm
• Switch：Schneider, France
• Inverter：Schneider, France
• PLC：Siemens, Germany
• Temperature Control：Japan , China
• Transport Package：by Stretch Film, Oil.
• Specification：4500*1800*2400mm
• Trademark：GUANGCHUAN
• Origin：China
• HS Code：8477409000
• Production Capacity：60 Sets, Year

Basic Info.

Model NO. GC Suitable Material PP, PS, Pet, PVC etc Max Forming Depth 180mm Forming Speed 15-35 Shots/Min Forming Area 750*350 Function Making Plastic Cups, Bowls, Containers etc Sheet Thickness 0.3-2mm Switch Schneider, France Inverter Schneider, France PLC Siemens, Germany Temperature Control Japan / China Transport Package by Stretch Film, Oil. Specification 4500*1800*2400mm Trademark GUANGCHUAN Origin China HS Code 8477409000 Production Capacity 60 Sets/ Year

Product Description

Plastic cup machine full automatic cup bowl thermoforming machine


Application Area:
     That machine mainly used for making different of plastic products such as water drinking cups, jelly cups, yogurt cups,coffee cups, and also making disposable bowls, lids, plates,trays etc.

Main Function:
   1. Machine operation is controlled by PLC & Touch screen

   2. Adopt four pillars to fix mold, ensure whole machine precision

   3. Temperature control modules to control each temperature area

   4. Convenient operation, outstanding performance,low noise and high quality.

Technical Parameter:


Model	GCF-750/350
Sheet thickness	0.3-2.0
Sheet width	350-750
Max forming area	720×320mm
Max forming depth	180
Work efficiency	5-35strokes/min
Heating rated power	60kw
Main motor power	11kw
Power supply	380V/50Hz(three phase four wire)
Voltage	0.6-0.8Mpa
Air volume required	2500~3500L/min
Water volume required	40~45L/min
Dimension  (L*W*H )	4500*1800*2400mm
Machine weight	About 5.5T

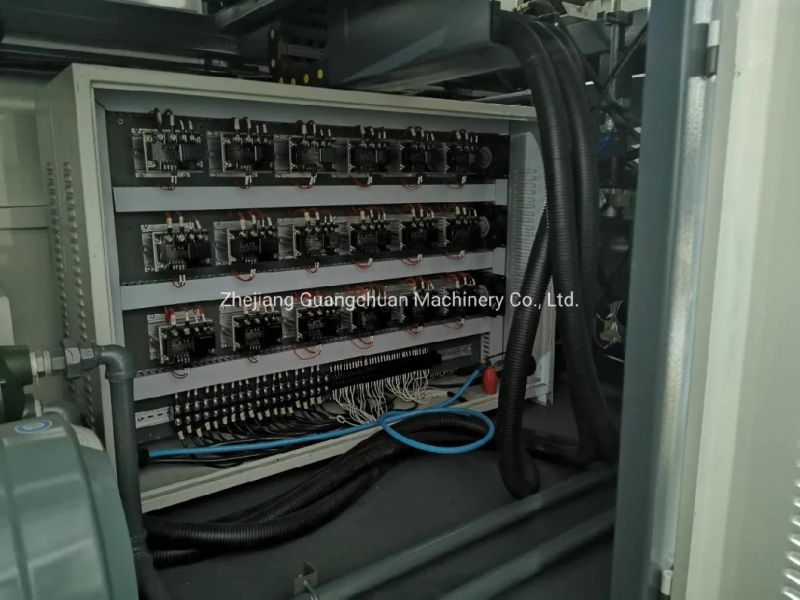

 Machine Photo:








Factory introduce:




Deliver:
1. Packing: By oil and stretch film. if customer need wooden case, you shall pay extra cost.

Sample photo:


FAQ:1. Q: Are you a factory or trading company?
      A: We are a factory

  2. Q: What certificate do you have?
      A: We have ISO9001, SGS, GB4455 and CE certificate.

  3. Q: How dose your factory do regarding quality control?
      A: We have a special QC department in charge of product's quality.

  4. Q: How long is the warranty period?
      A: All of our products have one year warranty.

  5. Q: Can we visit your machine operation in your factory?
      A: We have own plastic making company, you can see the machine operation.

  6. Q: Where is your factory located? How can we visit there?
      A: Our factory located in Gexiang High-tech industrial zone, Ruian City, Zhejiang Province, China. You can by air to Wenzhou Airport and by High-speed rain to Ruian Station.

          We welcome all friends ro visit us for future cooperation!
