PPR Plastic Pipe Extruder
Foshan Kebeln Plastic Machinery Co., Ltd.- Type：Pipe Extruder
- Plastic Processed：PPR
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Twin-Screw
Base Info
- Model NO.：KBL-63PPR
- Engagement System：Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Transport Package：Export Standard Package
- Trademark：kebeln
- Origin：China
- HS Code：8477209000
Description
Basic Info.
Model NO. KBL-63PPR Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Transport Package Export Standard Package Trademark kebeln Origin China HS Code 8477209000Product Description

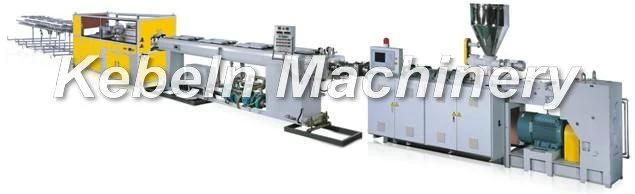

This line is special for PP-R pipe. The main machine is the Single-screw Extruder with PLC control or button control.
| odel | Pipe range (mm) | Extruder model | Max. capacity (kg/h) | Max. speed of traction (m/min) | Total installation power(kw) | Length of production line(m) |
| KBL-63PE | Φ20-63 | KBL-65-33 | 250 | 32 | 150 | 37 |
| KBL-63PE | Φ20-63 | KBL-90-33 | 500 | 32 | 330 | 45 |
| KBL-160PE | Φ50-160 | KBL-75-33 | 350 | 10 | 210 | 39 |
| KBL-250PE | Φ75-250 | KBL-75-33 | 350 | 8 | 230 | 44 |
| KBL-400PE | Φ160-400 | KBL-90-33 | 600 | 1.6 | 350 | 45 |
| KBL-630PE | Φ315-630 | KBL-120-33 | 800 | 1.2 | 480 | 58 |
| KBL-800PE | Φ500-800 | KBL-150-33 | 1000 | 0.8 | 650 | 60 |
| KBL-1000PE | Φ630-1000 | KBL-150-33 | 1000 | 0.8 | 750 | 60 |
| KBL-1200PE | Φ630-1200 | KBL-150-33B | 1200 | 0.4 | 820 | 80 |
| KBL-1600PE | Φ900-1600 | KBL-120-33*2 | 1500 | 0.6 | 820 | 90 |
