• Model NO.：LMSB-90,30
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Finished Non-Woven Width：1600-2400-3200-4000mm
• Non-Woven Filament Size：2-8um
• Extrusion Speed：8-60m,Min
• Capacity：1500kg,Per Day
• Power Consumption：350kw
• Transformer Choose：600kVA
• Required Areas：20mx8mx9m
• Transport Package：Wooden Case with Stretched PE Film
• Specification：10t
• Trademark：Leader Machinery
• Origin：Qingdao
• HS Code：84772090
• Production Capacity：20 Sets Per Year

Basic Info.

Model NO. LMSB-90/30 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Finished Non-Woven Width 1600-2400-3200-4000mm Non-Woven Filament Size 2-8um Extrusion Speed 8-60m/Min Capacity 1500kg/Per Day Power Consumption 350kw Transformer Choose 600kVA Required Areas 20mx8mx9m Transport Package Wooden Case with Stretched PE Film Specification 10t Trademark Leader Machinery Origin Qingdao HS Code 84772090 Production Capacity 20 Sets Per Year

Product Description

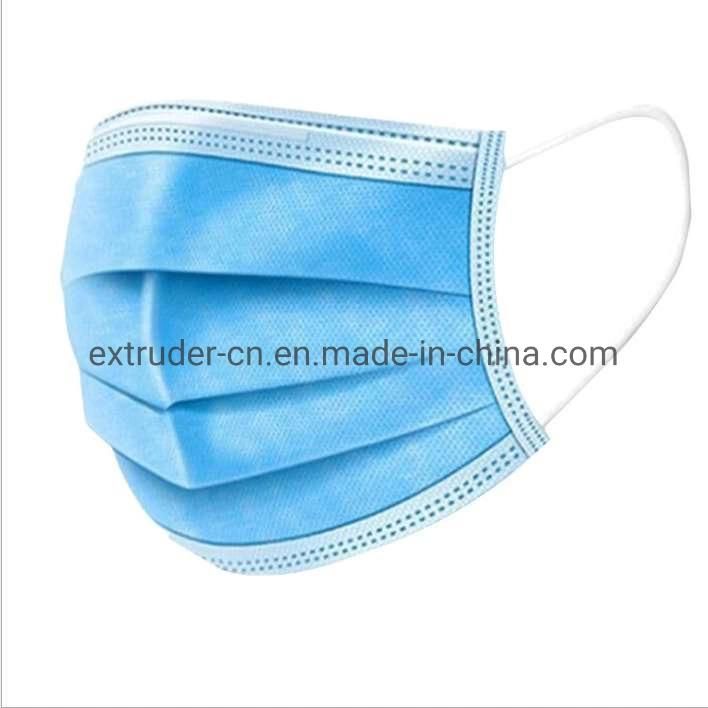

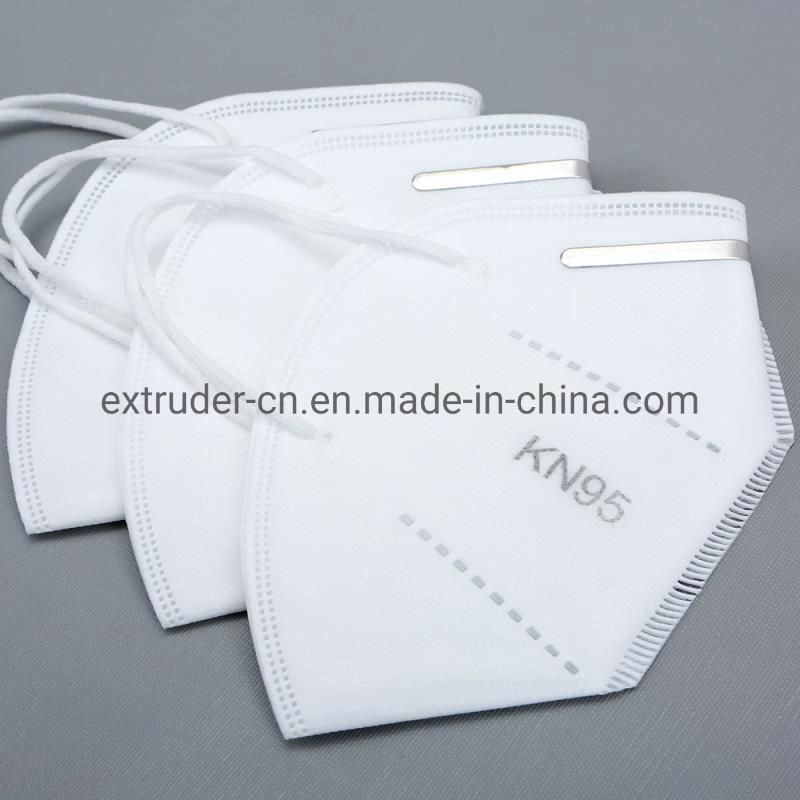

FFP2 FFP3 N95 KN95 protection masks 99%-100% filtration rate PP meltblown non-woven melt blown cloth fabric extrusion line production machine

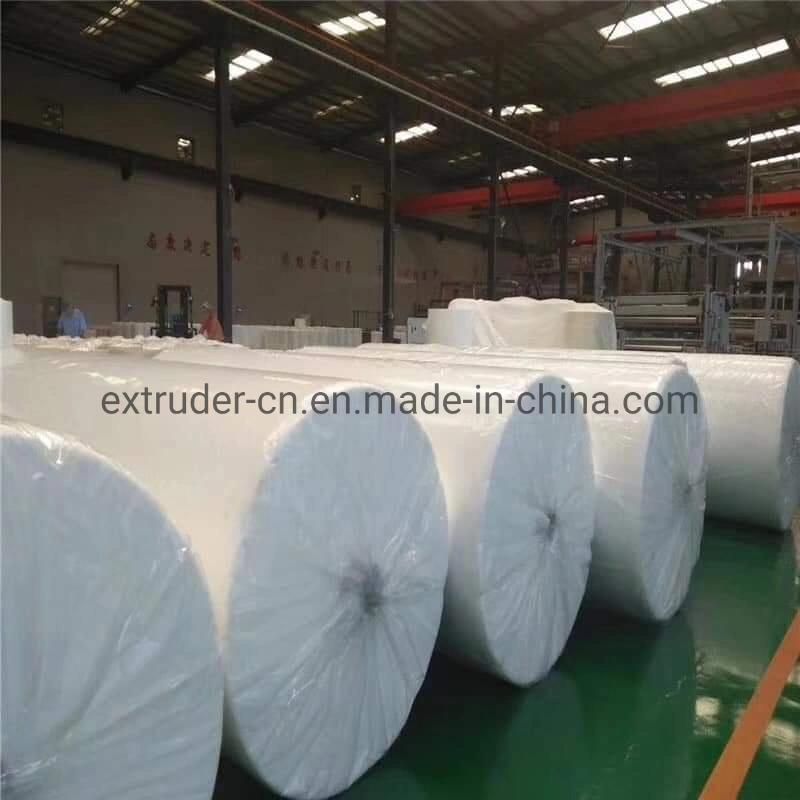

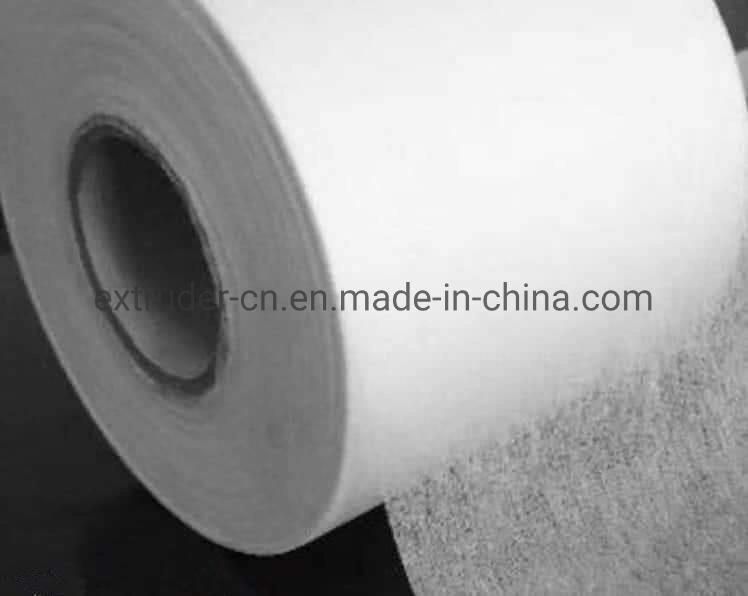

Meltblown non-woven fabric is the core material of masks. Meltblown cloth mainly uses polypropylene as the main raw material, and the fiber diameter can reach 1 to 5 microns. There are many voids, fluffy structure and good anti-wrinkle ability. Ultrafine fibers with unique capillary structure increase the number and surface area of fibers per unit area, so that the meltblown cloth has good filterability, shielding, heat insulation and oil absorption. Can be used in the fields of air, liquid filter materials, insulation materials, absorption materials, mask materials, thermal insulation materials, oil absorption materials, and wiping cloths.


Meltblown cloth equipment has stable running performance, high output and high efficiency. The production of non-woven fabrics is uniform, strong, breathable, non-toxic and tasteless, and meets environmental protection standards.

The melt blown cloth equipment of Leader Machinery consists of PP single screw extruder, hydraulic double pistion filter, melt pump, melt blown spinneret, air heating system, work platform, track receiver, roller receiver, negative pressure suction winding system, pneumatic control system, production line control system.

Technical parameters:

Model	LMSB-800	LMSB-1600	LMSB-2400	LMSB-3200	LMSB-4000
Model of extruder	SJ-55	SJ-90	SJ-110	SJ-135	SJ-150
Weight of products	8-80g/m2	8-80g/m2	8-80g/m2	8-80g/m2	8-80g/m2
Max. speed	50-200m/min	50-200m/min	50-200m/min	50-200m/min	50-200m/min
Daily output	300-400kg	1500kg	2500kg	4000kg	6000kg

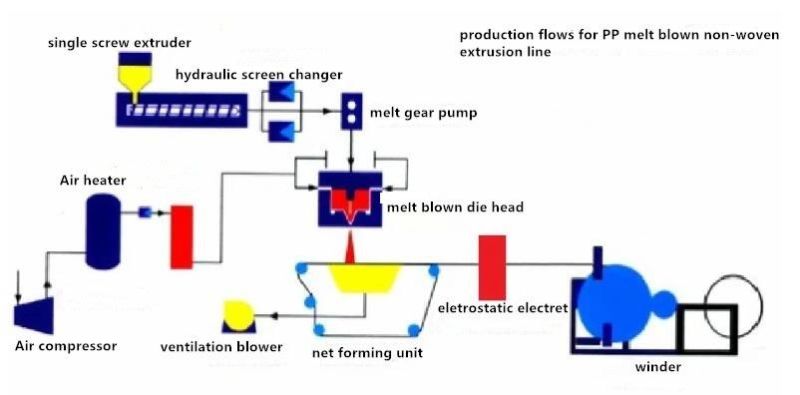

Production flows:

single screw extruder →hydraulic screen changer→melt gear pump→melt blown die head →net forming unit→eletrostatic electret→winder


PP meltblown raw material reference:

High melt index raw material 1200-1800g/10mins, 1500g/10 mins is suggested.

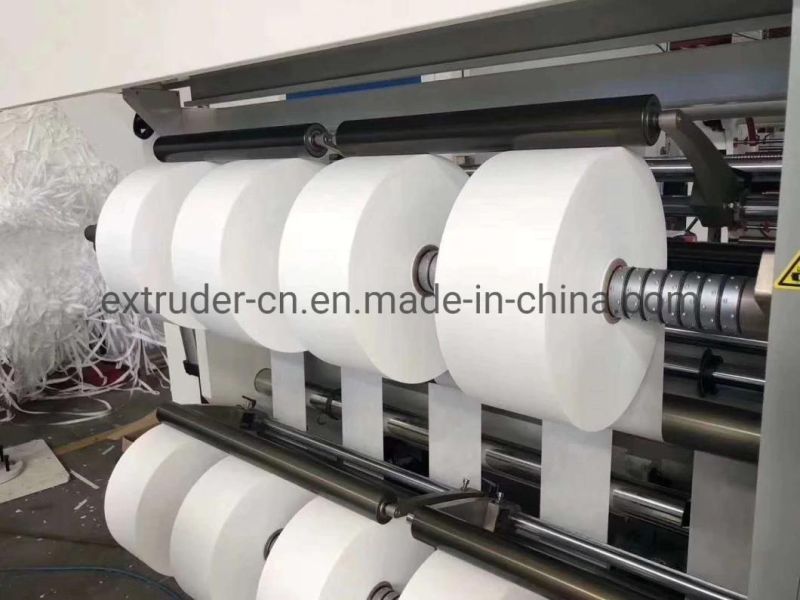

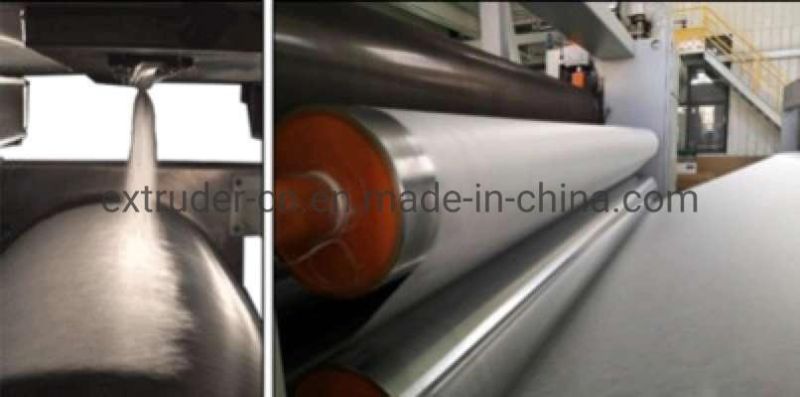

More machine pictures :

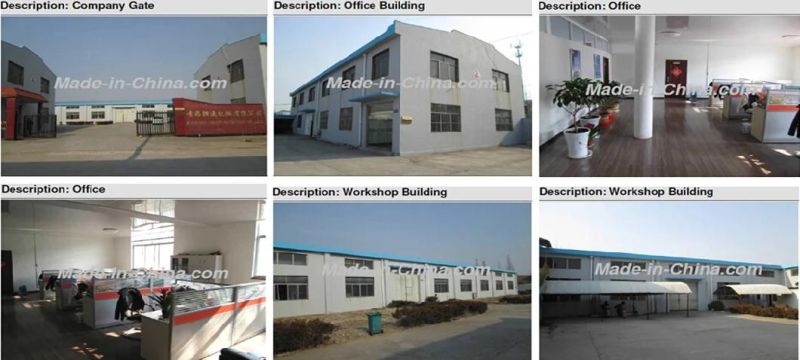

Company information :
