HDPE Pipe Extrusion Line
Qingdao Weier Plastic Machinery Co., Ltd.- Type：Pipe Extruder
- Plastic Processed：PE
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：SJSZ-90,33
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Transport Package：Export Standard Packing
- Specification：SJ-90,33
- Trademark：Weier
- Origin：Qingdao, Shandong, China
- HS Code：84772090
- Production Capacity：10 Sets,Month
Description
Model number
PE-16/63
PE-20/110
50/160
Pipe diameter
16-63mm
20-110mm
50-160mm
Max output
150kg/h
150kg/h
250kg/h
Production rate
5-15m/min
2-12m/min
2-10m/min
Extruder model
SJ-65/33
SJ-65/33
SJ-75/33
Installed power
100kw
110kw
150kw
Center height
1000mm
1000mm
1000mm
Installation area
35*3.0*2.0m
38*3.1*2.2m
38*3.2*2.
3. Machine list for hdpe pipe extrusion line:
NO. Item Model |
2.1.1 Single screw plastic extruder SJ-90X33 2.1.2 Single screw plastic extruder (tag line) SJ-30X25 2.1.3 Electric applaince controlling system SIEMENS 2.1.4 Mould and diameter-fixed cover SDM-180 (90,110,125,160,180) 2.1.5 Vacuum calibrating device SVC-180 2.1.6 Cooling water trough SWL-180 2.1.7 Haul-off SCH-180 2.1.8 Cutting device SPC-180 2.1.9 filp table STT-180 2.1.10 winder device SWU-110 2.1.11 Vacuum material-loading devic SAL-800G2 2.1.12 Drying device SHD-100 2.1.13 Heat transfer printer YYJ 2.1.14 Mixing unit SVM-200 2.1.15 Spare parts 2.1.16 Export package |

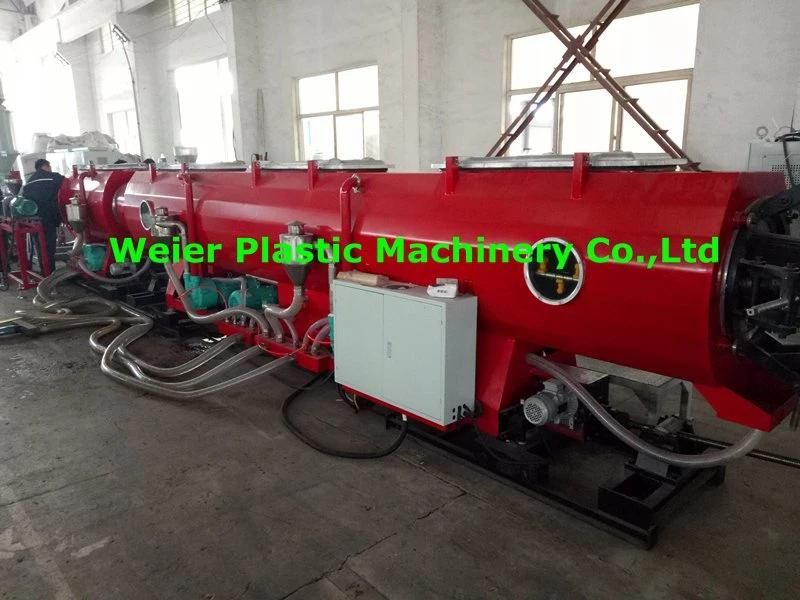

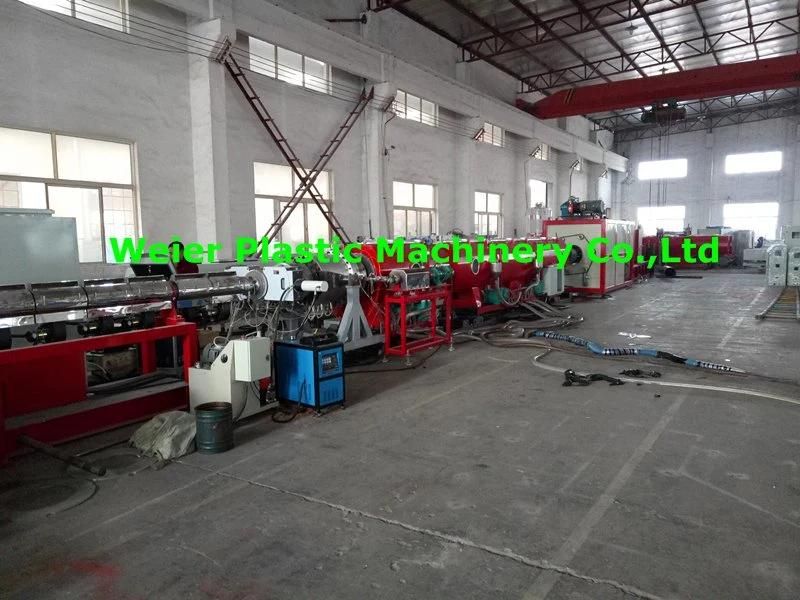

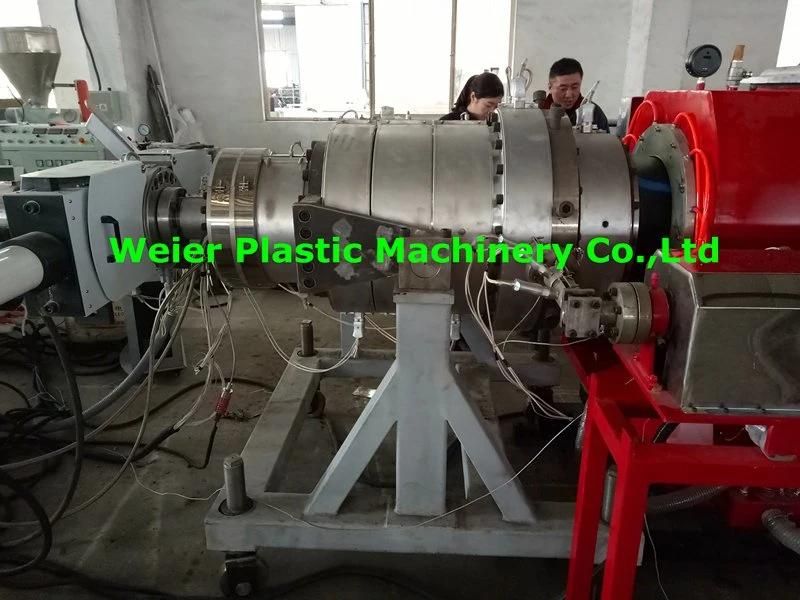

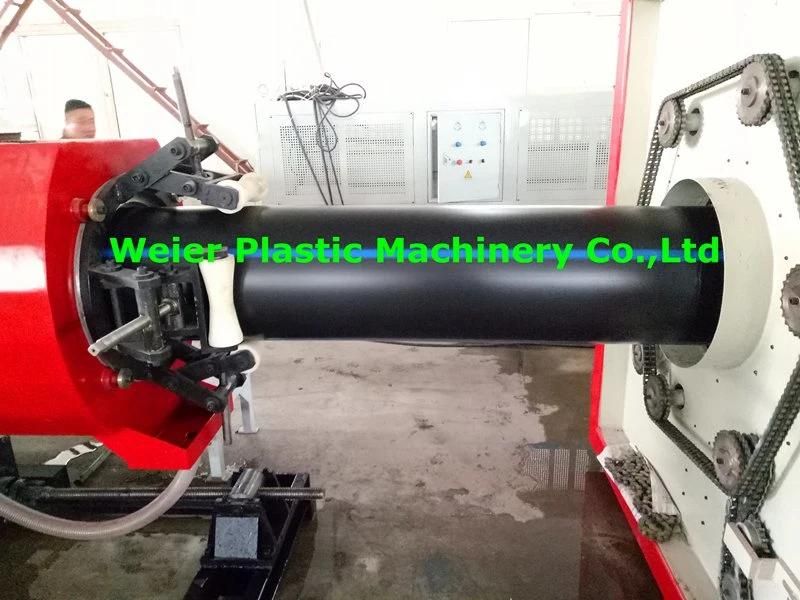

Machine working pictures
If any interest,please contact me at your best convenience.
"Excellent Quality and Reasonable Price" is our company's quality policy;
"Honest Service and Win-win Cooperation" is our company's core concept.
we offer turn key project, with lifelong after sale service!
we have ready machines in factory for your test and visit! sincerely welcome all friends to visit our factory!
