• Model NO.：SJ-65;
• Certification：CE
• Customized：Customized
• Condition：New
• Length(M)：30m
• Converter：ABB
• Width(M)：2
• Height(M)：3.5
• Contactor：Siemens
• Temperature Controller：Delta
• Motor：Bette
• Transport Package：Wooden Packing
• Specification：SJ-65
• Trademark：Trusty
• Origin：Qingdao
• HS Code：84772090
• Production Capacity：10sets,Month

Basic Info.

Model NO. SJ-65; Certification CE Customized Customized Condition New Length(M) 30m Converter ABB Width(M) 2 Height(M) 3.5 Contactor Siemens Temperature Controller Delta Motor Bette Transport Package Wooden Packing Specification SJ-65 Trademark Trusty Origin Qingdao HS Code 84772090 Production Capacity 10sets/Month

Product Description

1.Introduction:

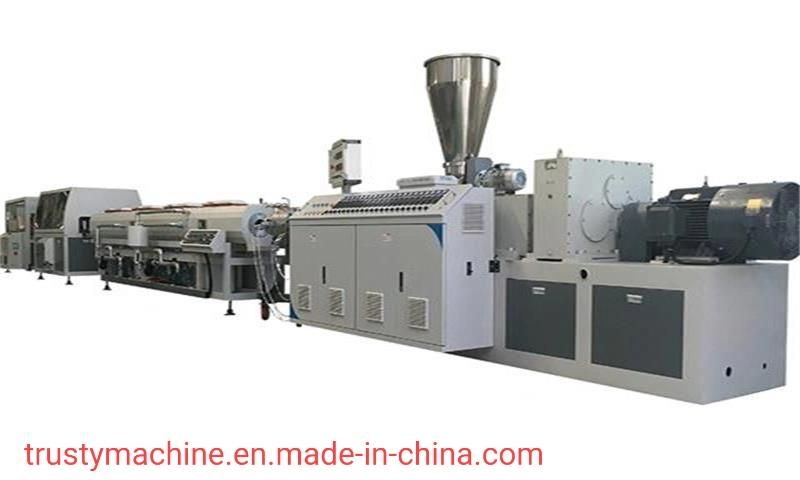

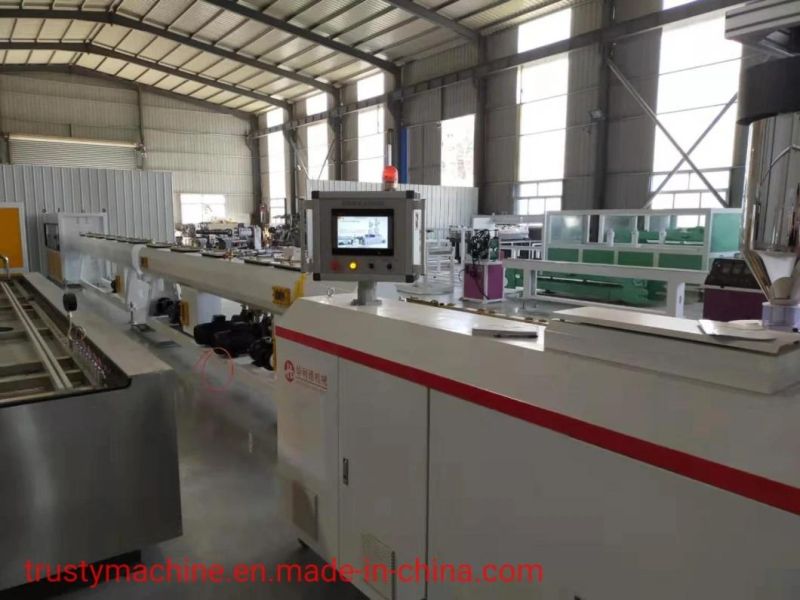

    PE pipe production line is mainly used to produce PE water pipe, gas pipe, drain pipe and so on.Single screw extruder, very suitable to process PE resin with high capacity, max capacity can reach 1000kg/h,Diameter range is 16mm-800mm
     The production line adopts reasonable design, absorbing safe producing technology.


2.Machine List


Name	Quantity(set)
Automatic drying feeder	1

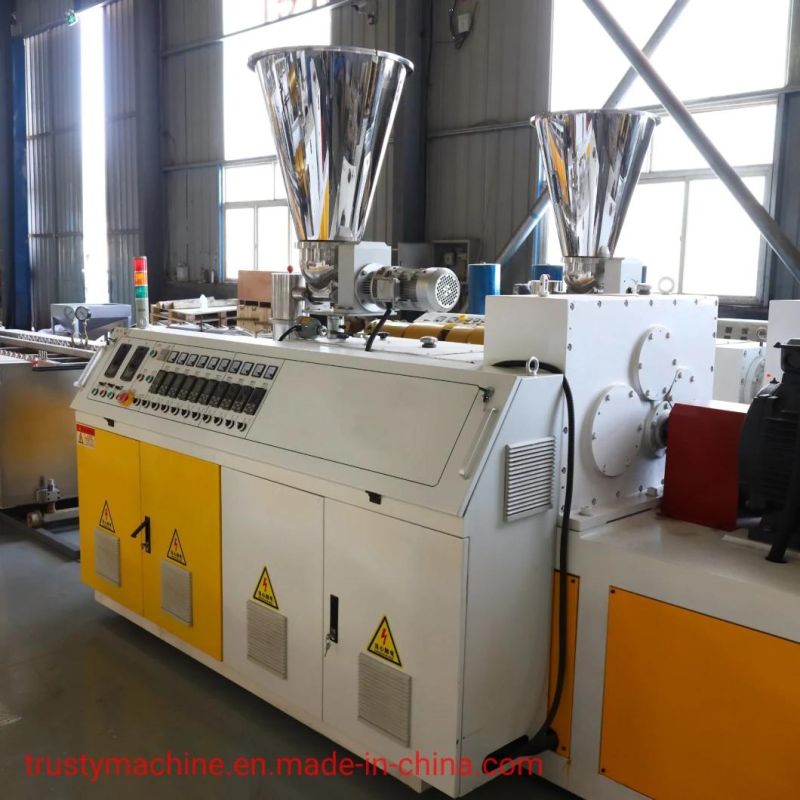

Single screw  extruder	1
Marker line extruder	1
Extruding mould	1
Shaper	1
Vacuum tank	1
Spray box	1
Haul off with caterpillar	1
Computer printer	1
Chipless cutter	1
Roll over table	1
Crusher	1




3.Technical parameter


Pipe range	16-63mm	20-110mm	75-160mm	90-250mm	110-315mm	160-450mm	315-630mm	500-800mm
Extruder	¢65mm	¢65mm	¢75mm	¢75mm	¢90mm	¢90mm	¢120mm	¢150mm
Extruder power	AC45kw	AC55kw	AC110kw	DC160kw	DC160kw	DC160kw	DC280kw	DC335kw
Extrusion capacity	80-120kg	100-150kg	250-300kg	250-300kg	350-400kg	350-400kg	650-700kg	850-900kg
Max. production speed	18m/min	12m/min	6m/min	6m/min	3 m/min	1.2m/min	0.9m/min	0.7m/min

4. Production Process
Feed→Extrude→Shape→Spray→Haul off→Print→Cut→Stack the material→Crush

5.After sales service

(1)After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine, we will test the machines and send the sample to buyer.
(2)After shipment, the seller will send one or two technicians to the buyer' s factory to help the buyer install the machine and train workers for buyer.
(3)We will supply all electricity drawing, machine installation drawing.
(4)When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays, and other items which is easier broken.
6.Company Profile
   Qingdao Trusty plastic machinery company is located in Qingdao shandong peninsula, a beautiful coastal city, where railway, sea and aviation are very convenient.Our company manages each kind of plastic machinery, has the rich mature technical experience.
     The quality of the equipment  is reliable, and the price is reasonable.New and old customers are willing to visit our company to guide and jointly develop new requirements, new standards, new technologies and new processes in this  industry.
