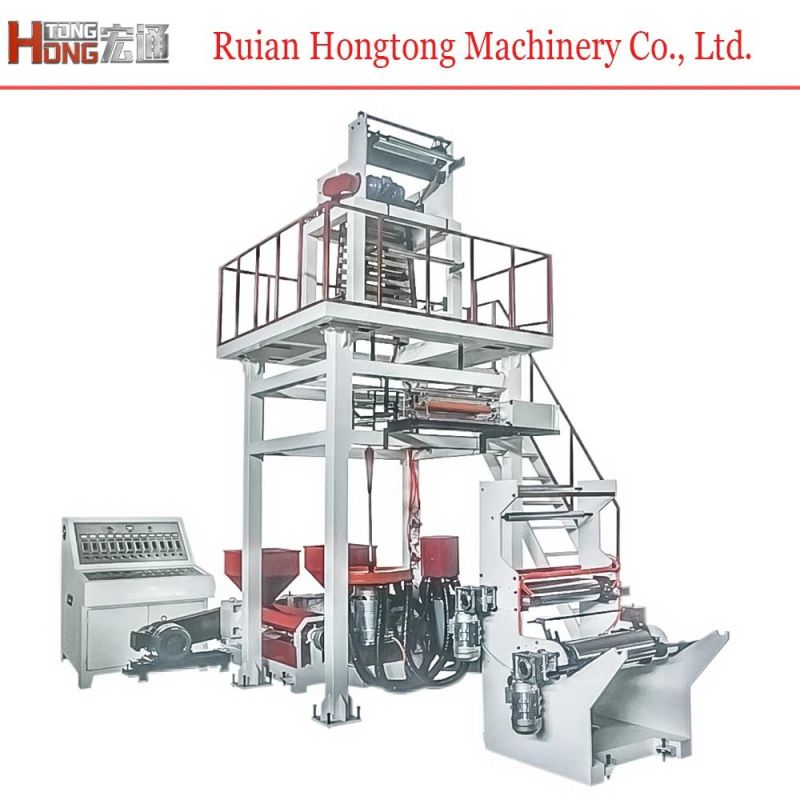

PE Film Blowing Machine, PE Plastic Film, Single Screw Film Blowing Machine, Degradation ...
Ruian Hongtong Machinery Co., Ltd.- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：600mm
- Screw Diameter：50mm
- Automation：Automatic
- Computerized：Non-Computerized
Base Info
- Model NO.：600
- Machine Weight：2500
- Certification：CE
- Transport Package：Wrap Film
- Specification：5000mmx3000mmx4500mm
- Trademark：RHT
- Origin：China
- HS Code：84773090
- Production Capacity：35kg,Hr
Description
Model
RHT-50FM600
RHT-55FM800
RHT-60FM1000
Screw diameter
50mm
55mm
60mm
Screw L/D Ratio
L/D30:1
L/D30:1
L/D30:1
Screw Rotary Speed
10-120r/min
10-120r/min
10-120r/min
Main motor Power
11Kw
15Kw
18.5Kw
Max.output capacity
(kg/hr)
35 for HDPE
40 for LDPE
40kg for HDPE
50kg for LDPE
45kg for HDPE
60kg for LDPE
maximum film width
600mm
800mm
1000mm
Single Film thickness
0.006-0.10mm
0.006-0.10mm
0.006-0.10mm
Machine heating power
20Kw
25Kw
30Kw
Machine working power
10Kw
13Kw
15Kw
Weight
1200kg
1500kg
2000kg
Overall Dimension(L×W×H)
3000×3000×4200mm
3200×3200×4500mm
3300x3500x4800mm
