• Model NO.：TSSK50
• Customized：Customized
• Certification：CE, SGS
• Condition：Used
• Capacity：150kg,H
• Screw and Barrel：38CrMoAl, Nitrogen, Bimetallic
• Application：PP PE CaCO3 Color Wax Butter Other Additives
• Degassing：One Vacuum
• Pelletizing Way：Pull Strap(Like Noodles) or Water-Ring Hot Die
• Delivery Time：45 Working Days
• Extruder：Co-Rotating Twin Extruder
• Cooling Way：by Water
• Heater：Cost Al or Cost Copper
• Ld：40:1
• Transport Package：Film Packing and Wood Base or Wood Case
• Specification：pellets size Φ 2.5*3mm
• Trademark：JORBIN
• Origin：Zhangjiagang City
• HS Code：84772010
• Production Capacity：10sets,Year

Model

TSSK20

TSSK30

TSSK35

TSSK50

TSSK65

TSSK72

TSSK92

Screw diameter(mm)

21.7

30

35.6

50.5

62.4

71.2

91

Rotary speed(rpm)

600

400

400/600

500/600

400/500

400/500

400/500

Main motor power(kw)

4

11

11/15

37/45

55/75

90/110

220/250

L/D

32-40

28-48

32-48

32-48

32-48

32-48

32-40

Capacity(kg/h)

2-10

5-30

10-80

20-150

100-300

300-600

600-1000

More machine photoes

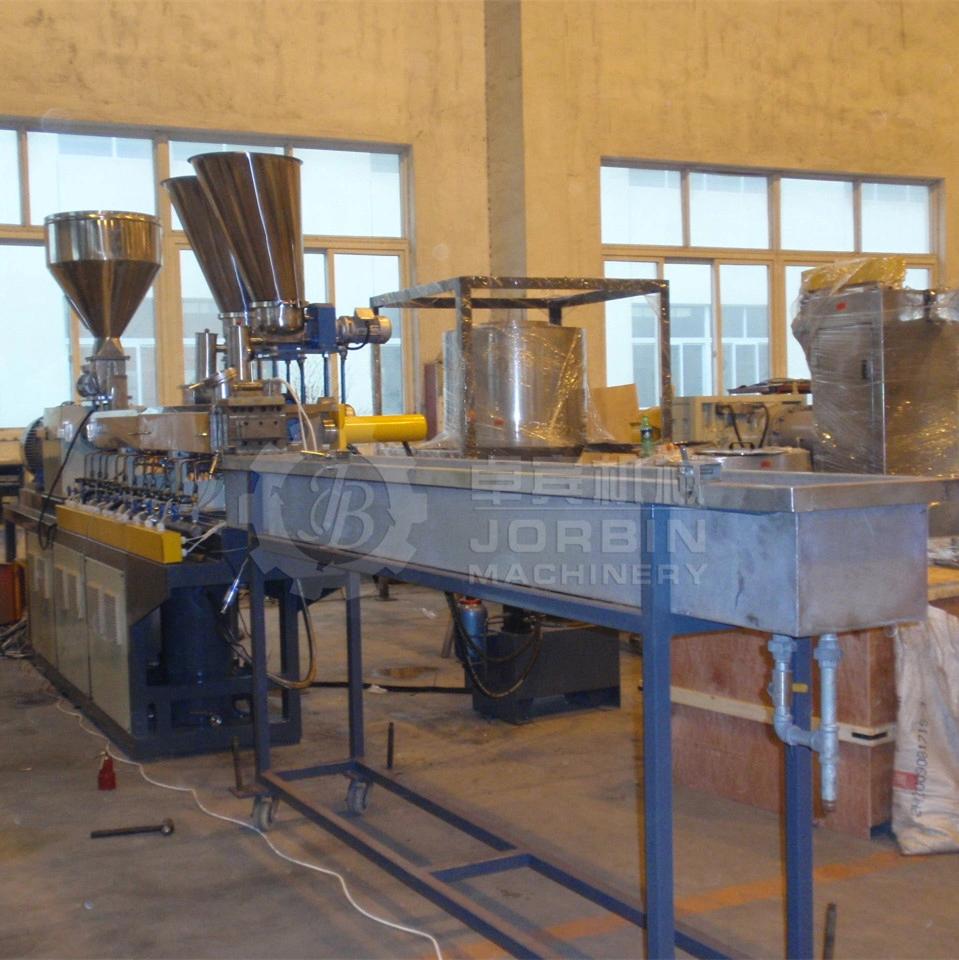

The Main extruder machine

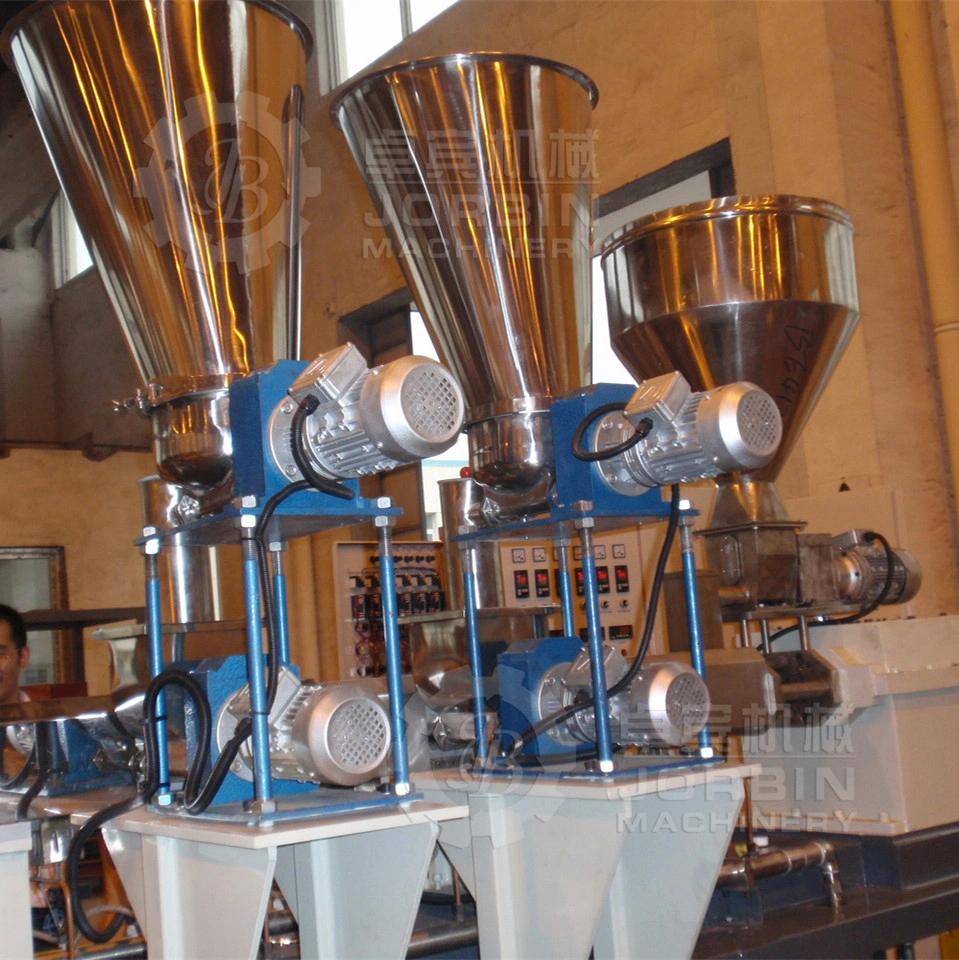

Main feeder for material Sider feeder for additive or color

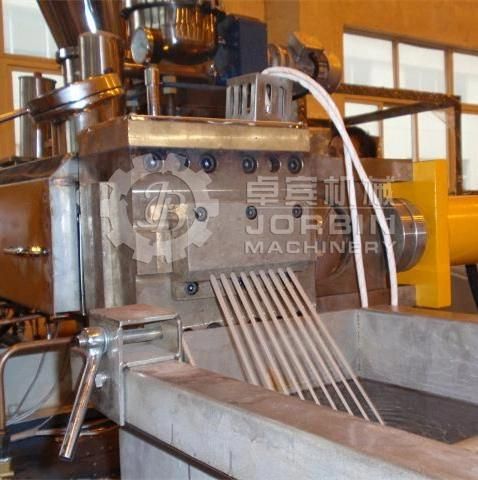

Pelletizing way(pull strap or like noodles), we also can produce water-ring way and wind cooling way

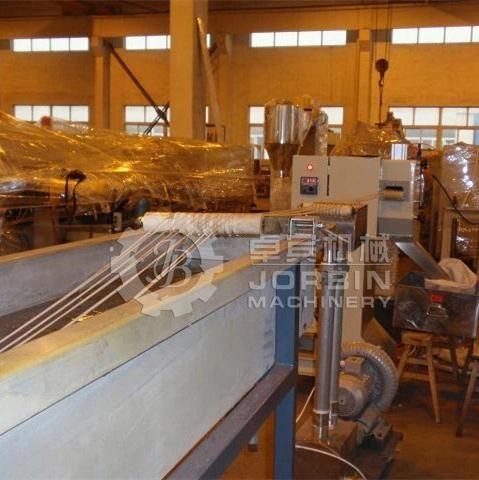

Water tank and gale dryer and pelletizer

Final pellets

If you need  more details of this kind of machine kindly contact me, I can send you more detail photoes and  vedios.


1. We supply below necessary documents with the machine:

1. Machine layout
2. Electricity diagram
3. Machine certificate
4. General manual book/maintenance book

2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.

3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.

4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.

5. 24Hours service :  Cell+86-13915707468
