• Model NO.：SMB-2-880S
• Cavity：2
• Max Length：360mm
• Max Diameter：180mm

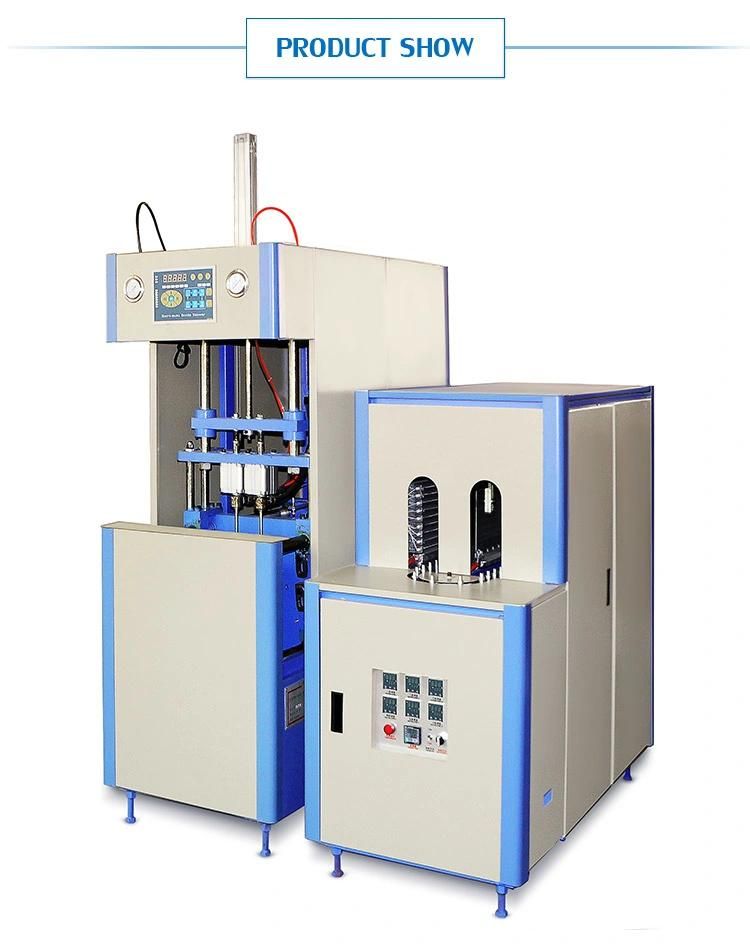

• Name：600 700 800 1000 1200 2000bph Plastic Blowing Mach
• Transport Package：Export Wooden Case
• Trademark：bowei
• Origin：Wenzhou
• HS Code：8477309000
• Production Capacity：800-900bph

TECHNICAL  DATA    ITEM   MEASURE-MENT   SBM-880    Material   /   PET/PP    Volume   L   0.05-2.0(2-cav)3-5(1-cav)    Theoritical output   Pcs/h   700-1000    Max.length   MM   360    Max.diameter   MM   180    Max.mould plate dimension(l*h)   MM   420*500    Clamping force   KN   180    Power   KW   12    Voltage/Frequency   V/HZ   220~380/50~60    Machine dimension(l*w*h)   M   1.66*0.74*2.2    Machine weight   Kg   700    Pre-heater dimension(l*w*h)   M   1.46*0.71*1.58    Pre-heater weight   Kg   300

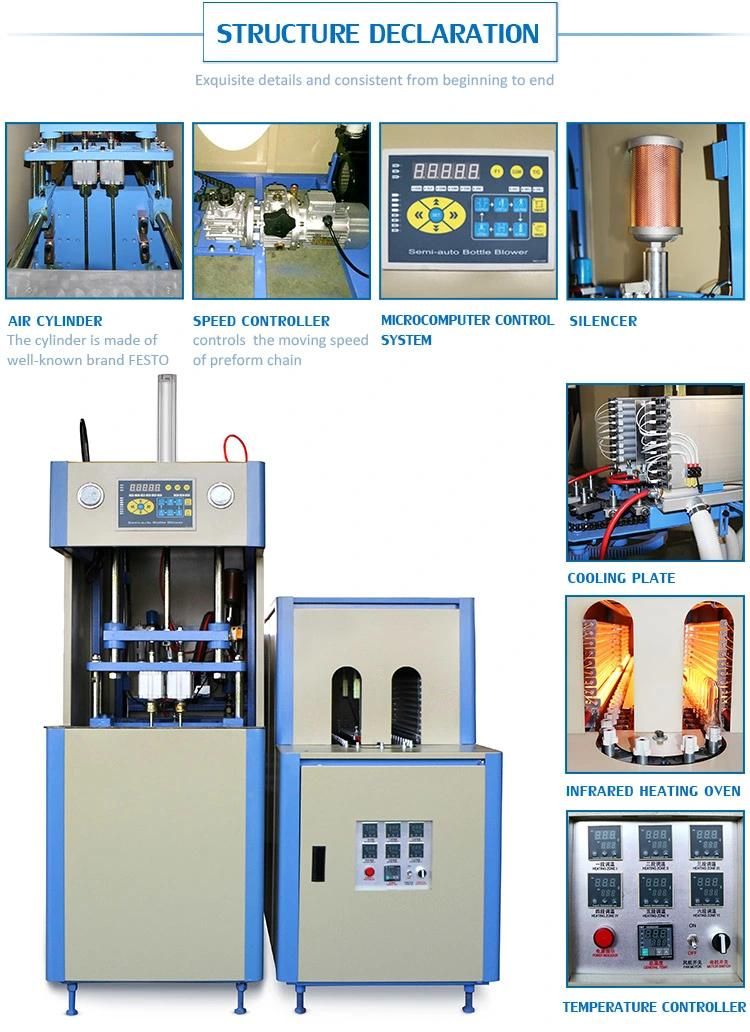

MAIN PARTS BRAND  ITEM   Name of the main spare parts   BRAND NAME   COUNTRY   1.    Closing cylinder   FESTO   GERMAN   2.    Sealing cylinder   FESTO   GERMAN   3.    Stretching cylinder   FESTO   GERMAN   4.    Closing magnetic valve   FESTO   GERMAN   5.    Stretching magnetic valve   FESTO   GERMAN   6.    Blowing magnetic valve   FESTO   GERMAN   7.    Moving magnetic valve   SIEMENS   GERMAN   8.    Voltage regulator      CHINA   9.    Computer controller   BOTHFIT   TAIWAN JOINT   10.    Infrared lamp      CHINA   11.    Open circuit controller(32)   DELEX   CHINA   12.    Heat continue controller   DELEX   CHINA

APPLICATIONThis system is ideal for start-up and small-scale companies and is reliable, heavy duty, and capable of producing a wide variety of high quality P.E.T. bottles for many industries like water, alcohol, juice, liquid detergent, vegetable oil, cosmetics, pharmaceutical and personal care items which are just a few examples.FEATURES  1  Original FESTO air cylinder.  2  Minimize your initial investment by starting small.  3  Add additional systems economically as your business grows.  4  Bottles of different sizes can be produced simultaneously to meet your exact requirements.  5  Change over from one size to another can be completed simply and quickly.  6  The tooling costs (molds) are low since the design of the system is simple.  7  Systems can be dedicated to produce particular bottle sizes. A short operator-training period due to the   simplicity of the design.  8  Maintenance costs are kept to a minimum and highly-trained personnel are not requiredHOW IT WORKS1.The Blow Molding system does not require highly trained operators to produce consistent quality bottles.2.The bottle making process starts by loading preforms into the preheater.3.The preheater uses a variable speed track that moves the preforms through a heating tunnel. The heat tunnel has specially designed heating elements for a consistent heating operation with minimal maintenance.4.When the preforms have made one "trip" through the preheater, they are manually loaded two(three or four) at a time into the blow molder.5.After the bottles are formed in the blowing cycle, they are removed and the cycle continues. The finished bottles are then loaded directly onto a conveyor for filling or can be stored for later use.FAQ 1  What is the terms of payment ?   We accept L/C ,40% dawn payment balance pay before shipment by T/T  2  What is your delivery time?   Normally we will delivery the goods in 15-30 working days .  3  Warranty time ?   One year.  4  How you ship the machine?   We will send by sea,as the machine dimension is large we do not suggest you send by air ,but if you need   urgently ,send by air we can also do it .  5  Any easy broken parts free of charge,when we place order?   Yes .
