Semi Automatic Pet Blow Molding Machine
Zhangjiagang Eceng Machinery Co., Ltd.- Raw Material：PET
- Making Method of Parison：Stretch Blow
- Automation：Non-Automatic
- Computerized：Non-Computerized
- Certification：CE, ISO9001:2008, QS, UL, GMP
- Machine Automatic：Semi-Auto
Base Info
- Model NO.：YC-2L-2
- Structure：Blower & Oven
- Blower Size：1.6*0.6*1..5
- Oven Size：1.4*0.6*1.2
- Total Power：30kw
- Color：Orange
- Material：Pet
- Blower Weight：500kg
- Oven Weight：400kg
- Auxiliary Machines：Compressor,Dryer and Filter

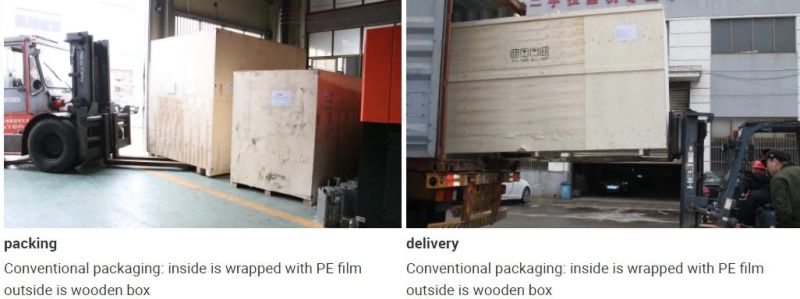

- Transport Package：Nude Package,as Customers Request
- Specification：CE, ISO, SGS,
- Trademark：ECENG
- Origin：Zhangjiagang Jiangsu
- HS Code：8477300000
- Production Capacity：500 Sets Per Year
Description
Blow molding part
Die force (KN)
100
Die stroke (mm)
270
Max. mould size(mm)
390*345
Mould thickness
Adjustable
Mould spacing(mm)
Adjustable
Max. pulling stroke(mm)
400
Operation pressure(Mpa)
0.8-1.0
Operation air pressure consumption
(1tr/min)
200
Blow pressure(Mpa)
1.2-2.8
Blow air pressure consumption (1tr/min)
300
Output(pcs/h)
1000-1200
Machine size(LxWxH)(m)
1.46*0.58*1.8
Machine weight(KG)
650
Oven
Temperature grade(rate)
8
Heating time(S)
90-200
Voltage(V)
220 or as your request
Frequency(HZ)
50/60
Total power(KW)
16
Oven Size (LxWxH)
1.35*0.55*1.15
Oven weight (KG)
300
Technology Advantage
l. Special design,high rigid compound die structure
2. Wide adaptability, suitable for every type mould thickness
3. Adjust convenience
4. No mould rolling out
5. More energy conservation,no need much air supply
6. High burnish principal axis, with very precise polishing, light action and low noise.
7. Short mould stroke,quick action
8. All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
9. Hig dead-weigh, ensure the steady during the opeartion
