• Model NO.：DPP-250DII
• Certification：ISO9001:2008, CE, GMP
• Packing Mode：Blisters
• Transport Package：Export Wooden Case
• Specification：CE, ISO9001, GMP
• Trademark：Trustar
• Origin：Ruian Zhejiang
• HS Code：8422400000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. DPP-250DII Certification ISO9001:2008, CE, GMP Packing Mode Blisters Transport Package Export Wooden Case Specification CE, ISO9001, GMP Trademark Trustar Origin Ruian Zhejiang HS Code 8422400000 Production Capacity 30 Sets/Month

Product Description

1. Machine Description

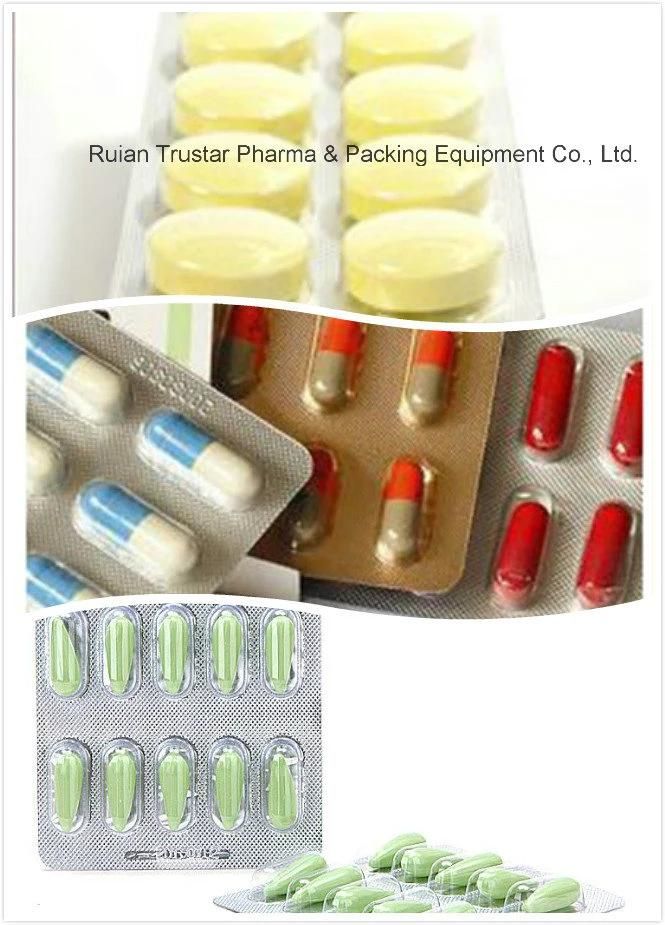

DPP-250DII Automatic Blister Packing Machine is designed according to the GMP standard, and this machine is widely used for packing capsules, tablets and some similar articles in the pharmaceutical industries.
2. Some technical features
1) PLC+touch screen control system
2) Main motor is equipped with a variable frequency speed controller
3) Modular-type work station make the adjustment of work station is simple and easy

OPTIONALS
1) Servo Drive.
2) Organic Glass Safety Enclosure.
3) Photoelectric Registration Device System.
4) Chiller Cooling System.


Main parameters

Punch Frequency	20-30 times/min for alu-pvc
Capacity	100-200 blister packs/min (According to Standard blister pack size: 80*57mm)
Stroke	Standard type: <120mm (special size can be customized)
Max. Forming Area	240*120mm
Max. Forming Depth	12mm (special size can be customized)
Packing Material	PVC/PVDC/PET: 260*0.25 (0.15-0.5)mm  PTP Alu-Foil: 260*0.02mm
Power Supply	3 Phase 380V 50Hz 5.7kw   (can be customized)
Air Compressor	0.5-0.7Mpa, air flow>0.38M3/min
Machine Size	4200* 650*1700mm
Machine Weight	1500Kg

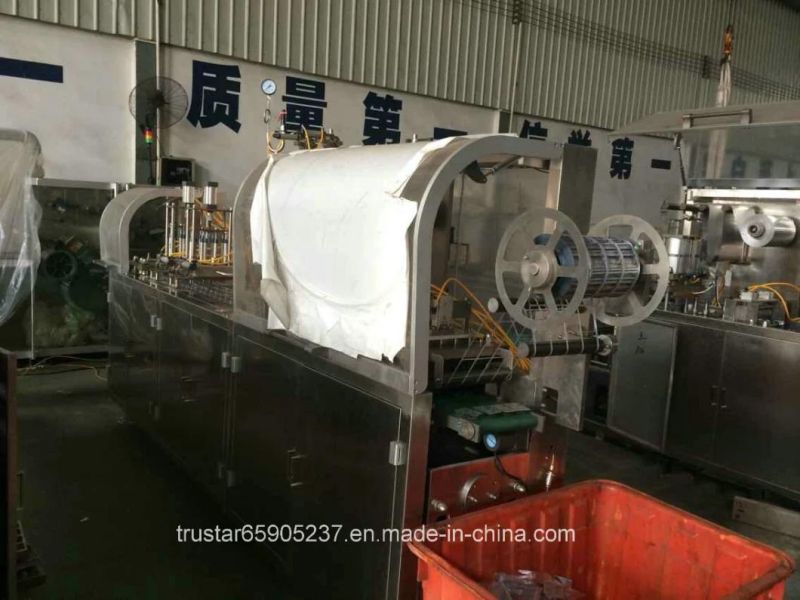

Machine photo

Frequently Asked Questions (FAQS)



what if there are some complicate problems about machines after buying them?

Contact with us by email or telephone, even we can go to visit you with our



technician if it necessary.



what's your advantage about your products?

Good quality with favorable price, produce equipment according customer's
