• Model NO.：hdpe tube machine
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Pipe Diameter：20mm-110mm
• Extruder Model：Sj60,36
• Control System：Siemens PLC Control System
• Electrics：Schneider Brand
• Inverter：ABB Brand
• Overseas Service：Engineer Is Avaiable for Overses Installation
• Line Speed：10m,Min-35m,Min
• Transport Package：Soft Package for Sea Transportation
• Specification：HDPE Pipe Making Machine
• Trademark：KAIDE
• Origin：China
• HS Code：8477800000
• Production Capacity：500 Sets Per Year

Basic Info.

Model NO. hdpe tube machine Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Pipe Diameter 20mm-110mm Extruder Model Sj60/36 Control System Siemens PLC Control System Electrics Schneider Brand Inverter ABB Brand Overseas Service Engineer Is Avaiable for Overses Installation Line Speed 10m/Min-35m/Min Transport Package Soft Package for Sea Transportation Specification HDPE Pipe Making Machine Trademark KAIDE Origin China HS Code 8477800000 Production Capacity 500 Sets Per Year

Product Description

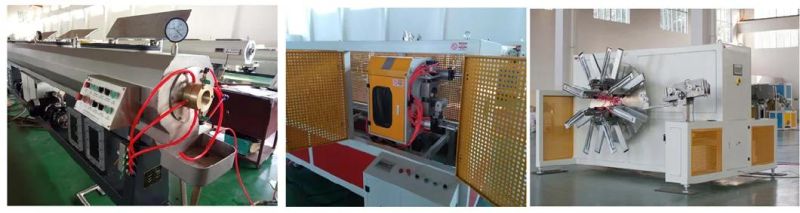

The HDPE pipe production line adopts specially designed high efficient five-section type screw andbarrel, independently designed by KAIDE company. Which is the essential conditions for the rapid materials plasticizing & dispersion in high output production.

 Technical Data

Line Model	Screw Diameter	L/D	Production Scope	Production Speed	Nominal Power
SJ-60	Ф60mm	36:1	ф20-110mm	35-40m/min	145KW
SJ-80	Ф80mm	33:1	ф110-315mm	0.8-8m/min	186KW
SJ-90	Ф90mm	36:1	ф200-450mm	0.2-2m/min	250KW

Die Head
The HDPE pipe making machine use spiral diehead, which ensures the stability of high speed extrusion and manufactured pipe quality. Mandrel and mouth die are chrome plated for die head long life span.

Gravimeter System
(1)High precise Gravimeter control system is applied in this HDPE Pipe line.
(2)It is used formeasuring & calculating and precise control of pipe weight per meter andits extrusion output
(3)The application of this system can shorten thestart-up time, improve the produced pipe quality, and save raw material.

PLC Control System
The HDPE pipe extrusionmachine adopts new generation Siemens PLC programmable computer control system,which could ensure the whole line high synchronous control and its stable &reliable running.

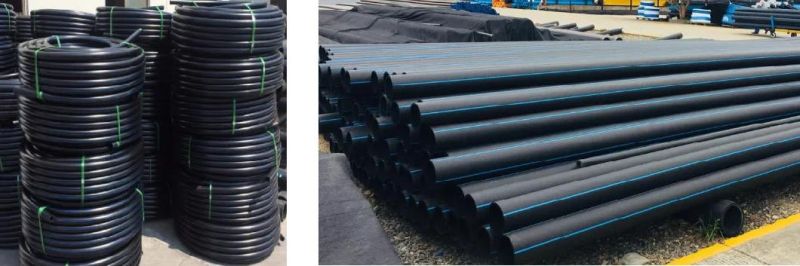

Generally, we often contact with HDPE pipes it has been used for 50 years in developed countries such as Germany, Japan, South Korea and so on. As a new building material widely used in domestic municipal pipelines, which industries are PE pipes mainly used in?
1) Urban and rural water pipe system
PE pipe is hygienic, non-toxic and non scaling, which is more suitable for urban and rural water supply trunk pipe and buried pipe. It is safe, hygienic, economical, convenient for construction and has long service life.
2)Urban gas pipeline:Because PE pipe has better creep resistance and economy, it can gradually replace ductile iron pipe for urban gas transmission.
3)Replaceable cement pipe, cast iron pipe and steel pipe
It can be widely used in the old city network reconstruction project, without large area excavation, convenient construction and low cost.
4) Industrial raw material pipeline
It can be used in chemical industry, chemical fiber, food, forestry, pharmacy, light industry, papermaking, metallurgy and other industries.
5) Landscape water supply network
Landscaping needs a large number of water pipes, and the flexibility and low cost of PE pipe make it the best choice.
6) Pipes for sewage discharge
PE pipe has unique corrosion resistance, can be used for industrial wastewater, sewage discharge, low cost and maintenance.




For more information, please feel free to contact us !
