• Model NO.：20-630mm
• PE Pipe Making Machine：75-250mm
• PE Pipe Extruder：315-630mm
• Transport Package：Wooden
• Specification：SGS
• Trademark：XJG
• Origin：China
• HS Code：847780000
• Production Capacity：500kg

Basic Info.

Model NO. 20-630mm PE Pipe Making Machine 75-250mm PE Pipe Extruder 315-630mm Transport Package Wooden Specification SGS Trademark XJG Origin China HS Code 847780000 Production Capacity 500kg

Product Description

HDPE/PPR Pipe Production Line

Machine Characteristics

1. The optimum spiral structure feeding throat highly improves the output of extruder

2. Accurate temperature control system ensures materials melting performance

3. Unique screw design achieves better plasticizing and high quality products

4. Precisely designed gearbox with a high torsion guarantees stable running

5. "H" shape frame to decrease vibrating of extruder

6. Advanced PLC operation system realizes synchronization and automation

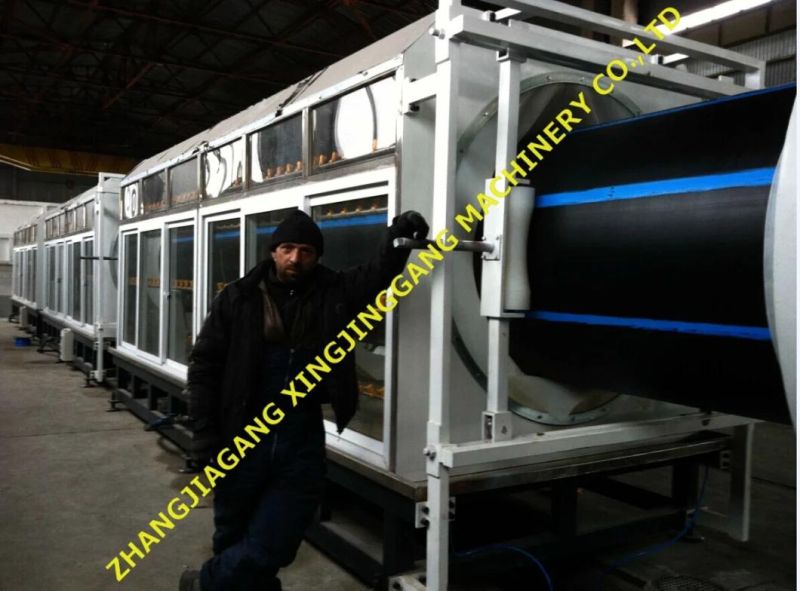

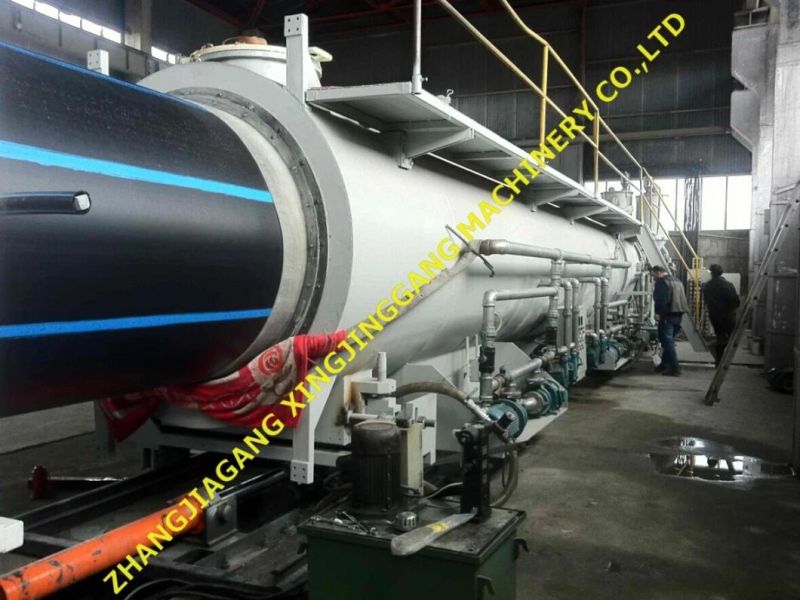

7. Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks

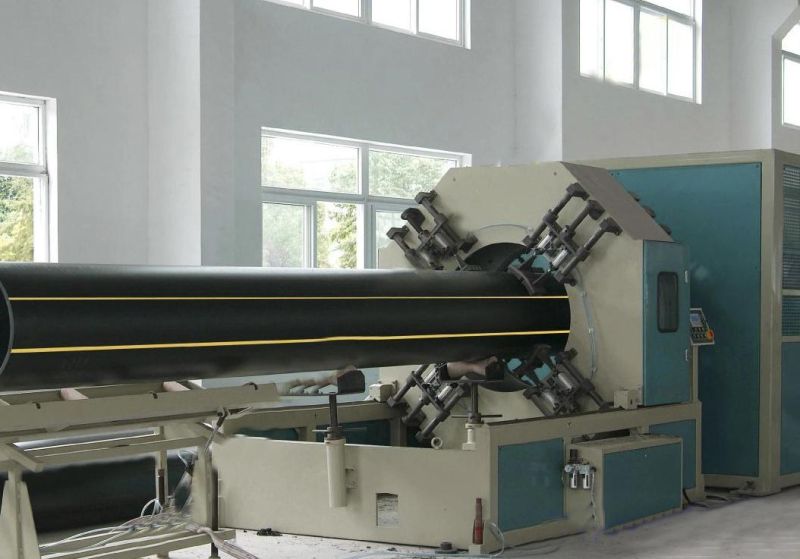

8. Offer stable haul-off unit with 2-12 caterpillars

9. Provide saw & chip-free cutting options

10. Low energy consumption, excellent performance, and easy maintenance

Pipe ranger(mm)	20-63	50-160	150-250	250-315	280-630
Extruder	SJ65/33	SJ75/33	SJ90/33	SJ120/33	SJ150/33
Capacity(kg/h)	50-80	80-150	180-260	300-400	450-600
Total power(kw)	75	145	195	220	350
Line length	35	38	42	44	56
Control system	PLC	PLC	PLC	PLC	PLC
