• Model NO.：PE 300
• Material：Stainless Steel 304
• Capacity：300kg,H ~ 3000kg,H
• Inverter：ABB
• OEM：Avaliable
• Flakes：FDA Grade
• Desigh：Big and Deep Desigh
• Motor：Siemens
• Brand：Sevenstars
• Manufacturing Ability：100sets Per Year
• Delivery Time：60 Days After Receiving Deposit
• Transport Package：Film and Wood Box as Internation Standard
• Specification：CE
• Trademark：Sevenstars
• Origin：Jiangsu Province
• HS Code：84778000
• Production Capacity：300-3000kg,H

Basic Info.

Model NO. PE 300 Material Stainless Steel 304 Capacity 300kg/H ~ 3000kg/H Inverter ABB OEM Avaliable Flakes FDA Grade Desigh Big and Deep Desigh Motor Siemens Brand Sevenstars Manufacturing Ability 100sets Per Year Delivery Time 60 Days After Receiving Deposit Transport Package Film and Wood Box as Internation Standard Specification CE Trademark Sevenstars Origin Jiangsu Province HS Code 84778000 Production Capacity 300-3000kg/H

Product Description

PE 300 Pet Bottle Flakes Crushing Cleaning Drying Line 1.It is mainly for PET bottle crushing,washing and drying. PP PE and some other rigid plastics are also can be washed by this line.

2.The whole line is fully automatic and it has characteristics of high efficiency, low noise and easy operation. It adopts hot water washing to get good quality.

3.Various output capacities can be chosen: 200KG/H, 300kg/h, 500kg/h, 1000kg/h...

4.The recycling line can easily crush, wash and pelletize wasted plastic products

5.From beginning to finished products. Waste and dirty agricultural films and
Waste packing material or rigid plastics can be treated step by step by this machine

The whole equipment includes parts as follows:


NO	ITEM	DESCRIPTION	SELECTIVITY
1	Prewasher	Remove the solid impurity which are water insoluble, such as hand stone, sand, etc. It can also wash bottles' surface.	Optional
2	Bale Breaker	It is used in large capacity recycling line, and bottles are compressed in bale.	Optional
3	Belt Conveyer	Including the metal detector.	Necessary
4	Label Remover	Label removing efficiency, more than 98%	Optional
5	Manual Select Platform	Made according to workers' height, supply a suitable plate for selecting the left labels or some other impurity.	Optional
6	Belt Conveyer	Conveying the bottles into crusher.	Necessary
7	Crusher	With water, the materials of the blade adopt SKD-II or 9CrSi. It has a function of prewashing too.	Necessary
8	Screw Feeder	Conveying the flakes into friction washer.	Optional
9	Friction Washer	Scrubbing material in high-speed with water.	Optional
10	SCrew Floating Washer	Remove few remand paper, sand, label from material based on different density.	Optional
11	Screw Feeder	Conveying the flakes into hot washer.	Necessary
12	Hot Washer	High temperature stirring washing with caustic soda. Water can be heated by steam or electric.	Necessary
13	Screw Feeder	Same as Item 8.	Necessary
14	Friction Washer	Same as Item 9.	Necessary
15	Screw Floating Washer	Same as Item 10.	Necessary
16	Dewatering Machine	High speed centrifuge drying.	Necessary
17	Drying System	Electric heating wind drying.	Necessary
18	Label Wind Separator	The last left impurity will be separated from flakes by the blower fan.	Optional
19	Silo	Store the final material.	Necessary
20	Electrical Control Panel	Adopts Siemens and DELIXI as main component.	Necessary

 Quality Control:

1.We have technician, engineer team design the qualified machinery before enter the market
2.QC team ensure the machine manufacturing step and final machine quality
3.We will running every machine after it's finished
4.We provide client running test the machinery by raw material

After sales Service:
1.Pre-sale: we given client the details technician offer, sign the sales contract etc.
2.In-sales: we supply the details layout, installation instruction, technician support for the clients;
3.After sales: we arrange engineer to install the machinery and training the workers for client abroad;
4.We have 24 hours team to solve problems after sales;
5.We have free spare parts with the right machine;
6.We supply whole machine lifetime spare parts for every customer
7.We always up date the new technology to every customer

Delivery information:
1. Delivery: 50 days after ur order
2. Warrenty: 15 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: standard export wooden case

Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine.

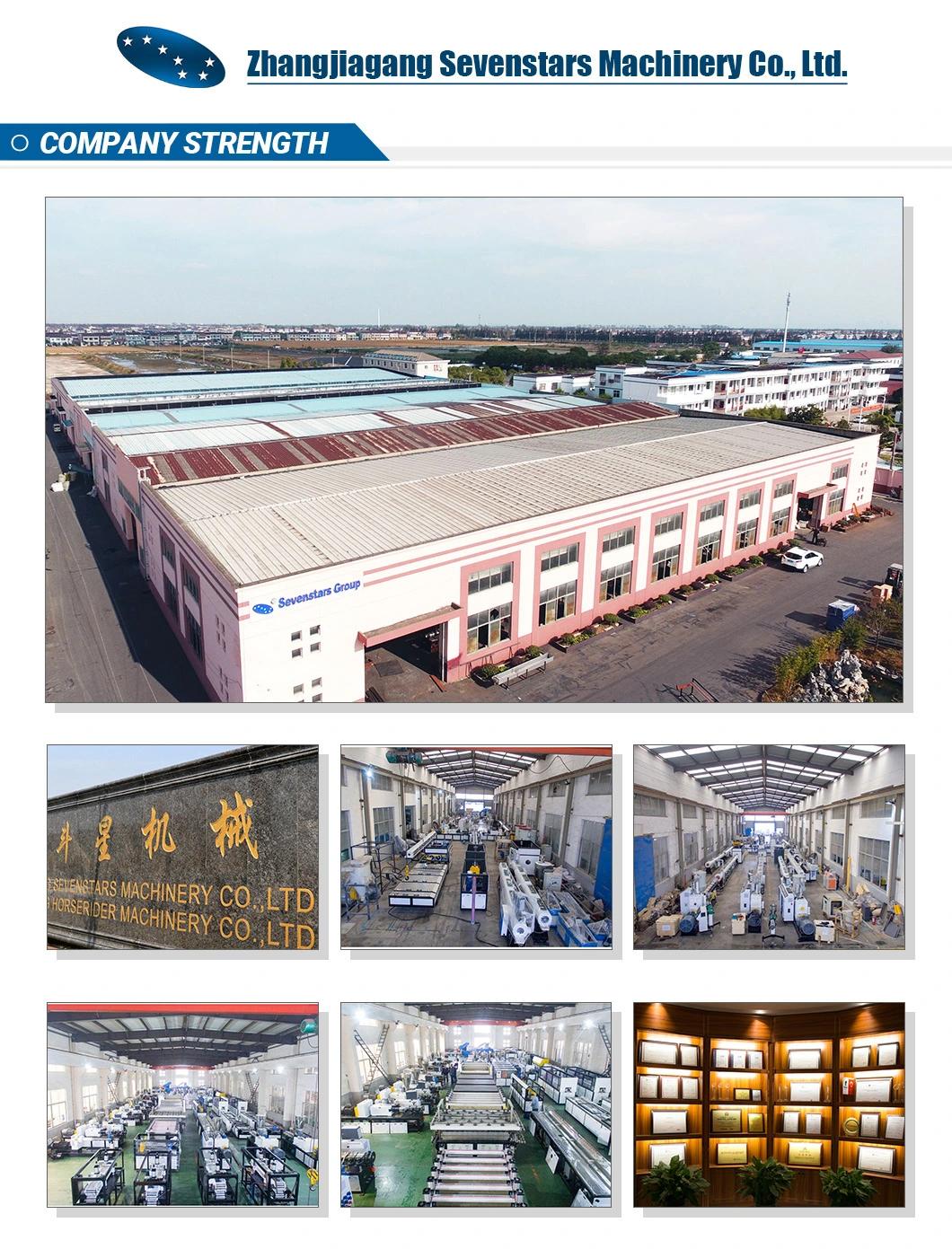

We have 17000 square meters land and new modern workshop, we mainly development, design, manufacture and marketing plastic pelletizing machine, plastic recycling machine, pet bottle recycling machine, PVC pipe making machine, PE pipe making machine, PVC foam board production line, plastic granulator, plastic shredder, plastic pulverizer, Plastic agglomerator, single shaft shredder, double shaft shredder, plastic crusher and so on. By the several years developing, we grown up to a middle scale company in China plastic industry.

As one of the reliable supplier in China, We have keeping improved our management and technology level. Up to now, we have earned good reputation in domestic and abroad market. And our products have been exported to many countries, like mexico, America, Argentina, Chile, Brazil, Russia and so on.

Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buit up a professional after-sale services team with rich-experienced in machine commissioning and installation. We believe our quality and service will bring success to each customer.

Welcome final users and distributors from all the world contact with us and create success.
With your support and our effort, we deeply believe that the tomorrow of sevenstar will be much better.
