• Model NO.：SJ-BWG
• Condition：New
• Name：Plastic Double Wall Corrugated Pipe Production Lin
• Motor：Siemens Beide,Wnm
• Contactor：Siemens,Schneider
• Temperature Controller：Rkc,Omron
• Pipe Size：63-800mm
• Product Application：Water Drainage, Electric Conduit
• Gearbox：Jc Brand
• Inverter：ABB,Holip
• Transport Package：Covered by Plastic Film
• Specification：20mx3mx3m
• Trademark：CAMEL
• Origin：China(Mainland)
• HS Code：84772090
• Production Capacity：800 PCS,Year

Basic Info.

Model NO. SJ-BWG Condition New Name Plastic Double Wall Corrugated Pipe Production Lin Motor Siemens Beide/Wnm Contactor Siemens/Schneider Temperature Controller Rkc/Omron Pipe Size 63-800mm Product Application Water Drainage, Electric Conduit Gearbox Jc Brand Inverter ABB/Holip Transport Package Covered by Plastic Film Specification 20mx3mx3m Trademark CAMEL Origin China(Mainland) HS Code 84772090 Production Capacity 800 PCS/Year

Product Description

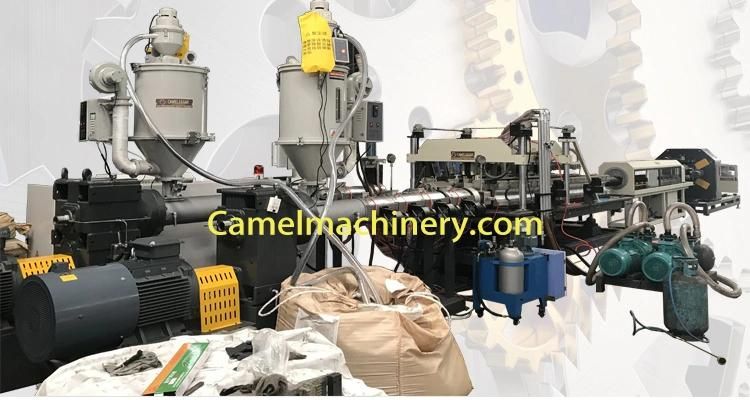

HDPE PE PP double wall corrugated pipe make machine

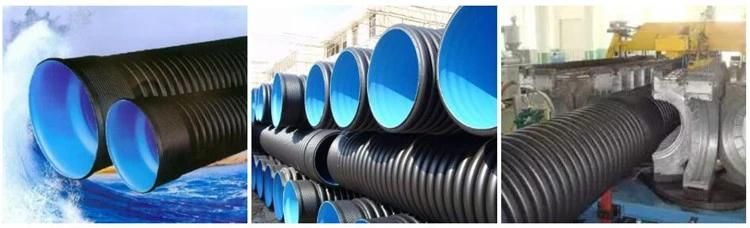

Double wall corrugated pipe is mature product which has the advantage of low weight, low cost, anti-corrosion,good ring stiffness and flexibility. Our company has developed PE double wall corrugated pipe extrusion line formore than ten years. We have the whole series of double wall corrugated pipe machine: horizontal type, verticaltype and shuttle type. Our machine can process wide range of material, including HDPE, PP, PVC, etc.

Our double wall corrugated pipe extrusion line can produce from inner diameter of 63mm to 800mm.




Techiniacal Parameter

Model	Structure	Raw material	ID (Min.mm)	ID (Max.mm)	Speed (m/min)
SGB250	Horizontal	HDPE / pp	110	250	0.5-5.0
SGB400	Horizontal	HDPE / pp	200	400	0.5-3.5
SGB600	Vertical	HDPE / pp	250	600	0.5-3.0
SGB800	Vertical	HDPE / pp	250	800	0.3-3.0
SGB800	Shuttle	HDPE / pp	500	800	0.3-3.0

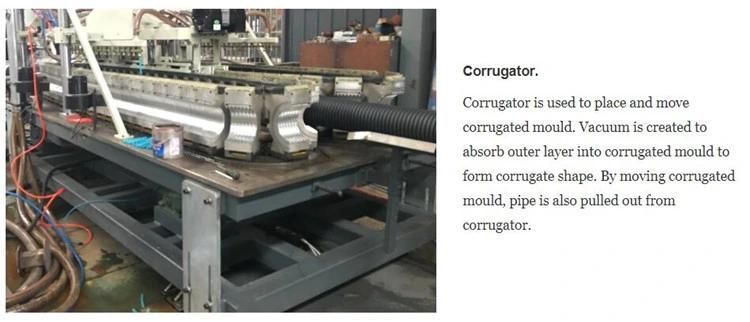

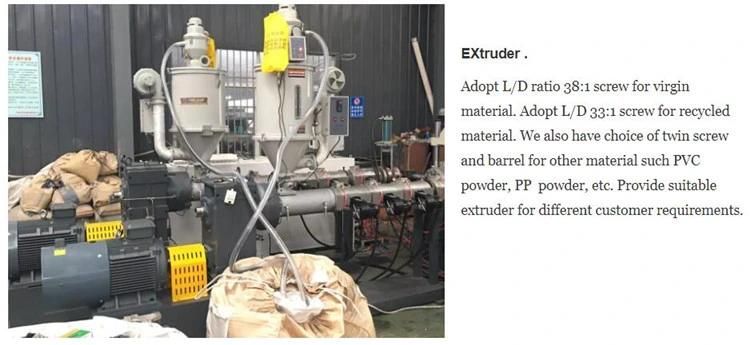

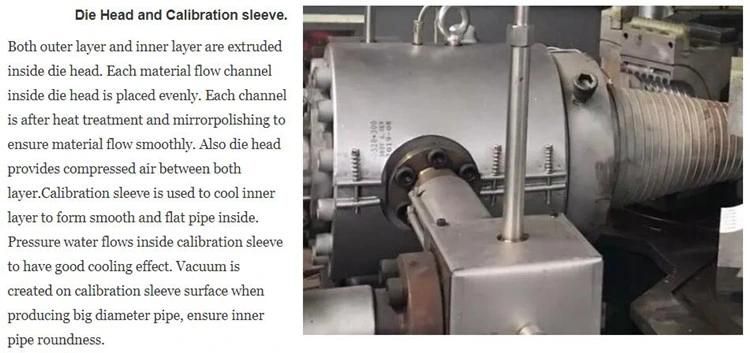

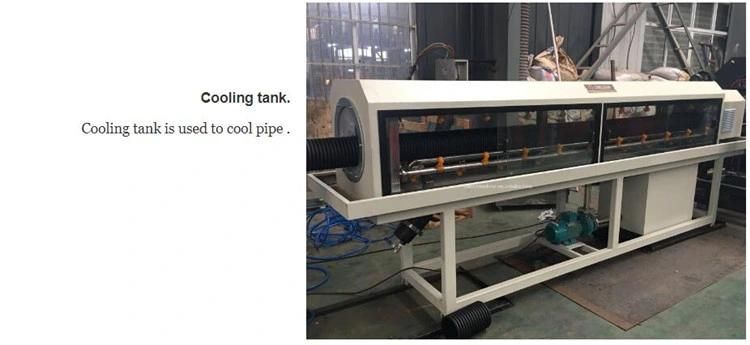

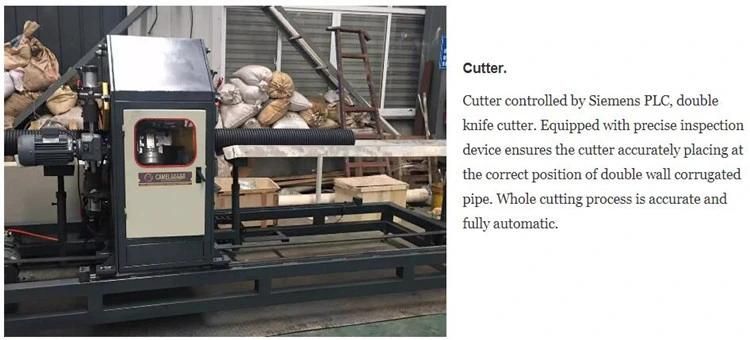

Details Images
