Plastic Machinery

Home > Product > Film Blowing Machine

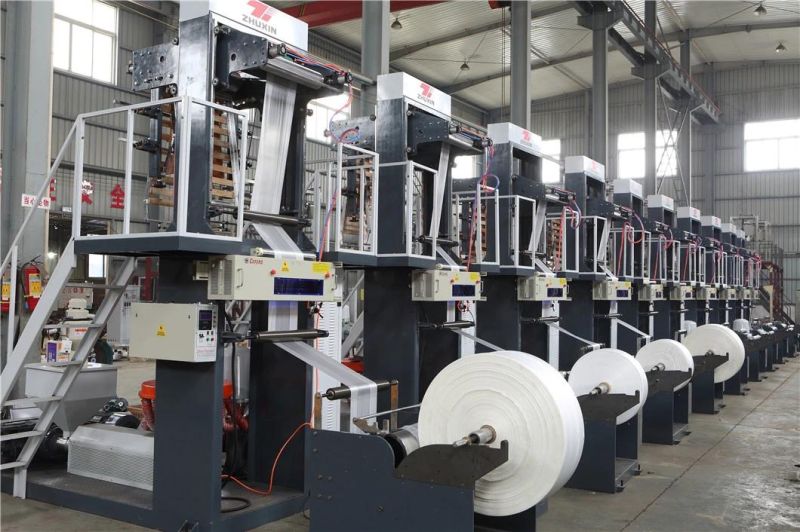

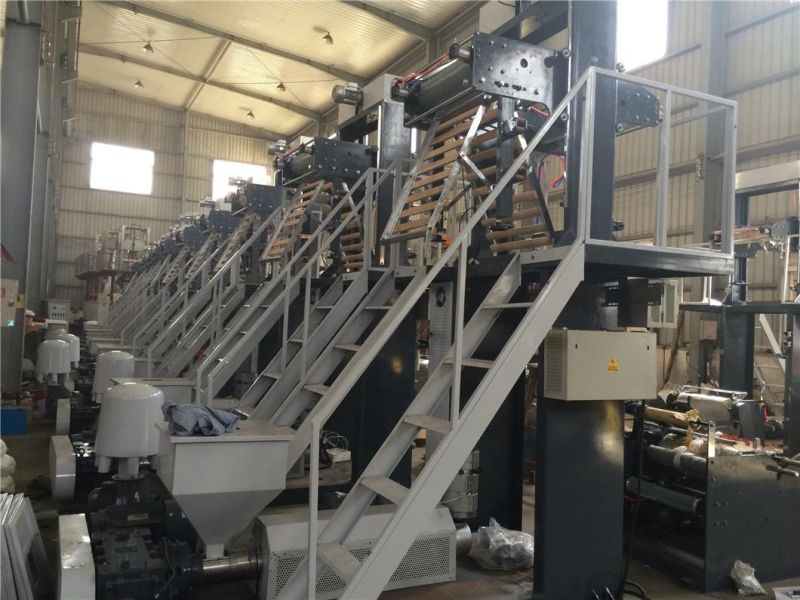

Taiwan Die Head Mini Film Blowing Machine

Zhejiang Zhuxin Machinery Co., Ltd.
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：600mm
  • Screw Diameter：45mm
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：SJ-mini
  • Machine Weight：4T
  • Certification：CE, ISO9001:2008
  • Machine Design：High Speed
  • Transport Package：Seaworthy Packing
  • Specification：SJ-45
  • Trademark：Changyin
  • Origin：China
  • HS Code：84773090
  • Production Capacity：200sets,Year

Description

Model :SJ-A 45Suitable material : HDPE,LDPE,LLDPEFilm width:500mmFilm thickness:HD(0.005-0.15MM),LD(0.02-0.15MM)Max extrusion output:HD 40KG,LD 50KG Gear case :GB 146  Inverter :15kw delta brand Low-voltage apparatus : Schneider Adjustable rubber roller before winding Effective motor :0.75KW Control system: Turbine reducer +delta inverter Winding roller :Air shaft The electrical control and measuring length display of the pinch and winder should install on the place of winder Temperature controller: Omron Switch box &contractor: Schneider Outline dimension :3x1.5x3.6m Taiwan Die Head Mini Film Blowing Machine
Taiwan Die Head Mini Film Blowing Machine
