• Computerized：Customize
• Certification：CE
• Transport Package：Standard Packing
• Trademark：Kowloon
• Origin：Zhengzhou

Basic Info.

Computerized Customize Certification CE Transport Package Standard Packing Trademark Kowloon Origin Zhengzhou

Product Description

passenger car tires truck tyres rubber recycle machine single shaft tire shredder granulator

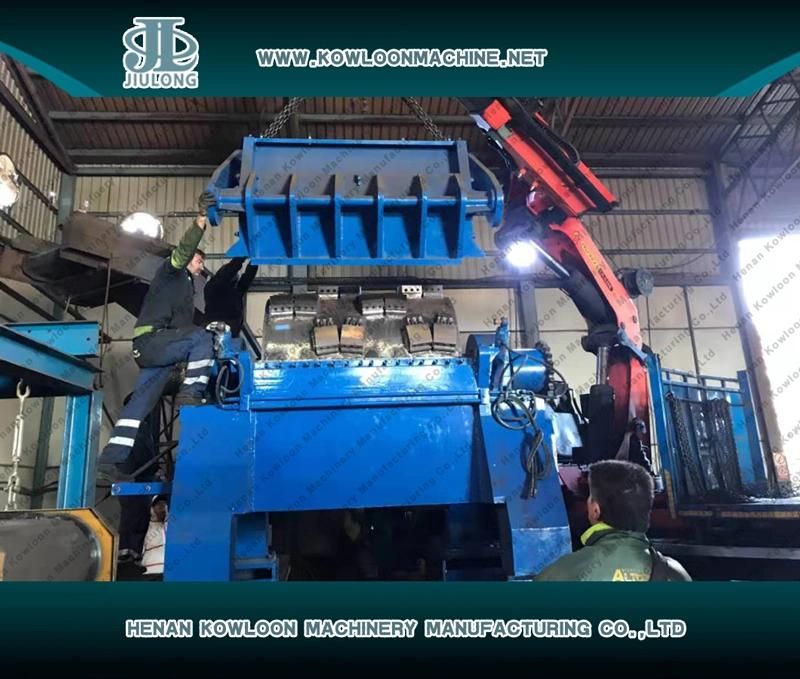

Instruction of JLRS rasper

After pre-shredding, sometimes rubber or plastic shreds with steel wires and fiber, these composite materials can be further broken down with JLRS rasper, steel wire can be cleaned, in the end steel wire available with a purity of 98%.

Application

Steel wires composited plastic, rubber.....like used tire shreds, automobile window sealing rubber strip, wire cable, natural gas pipeline.

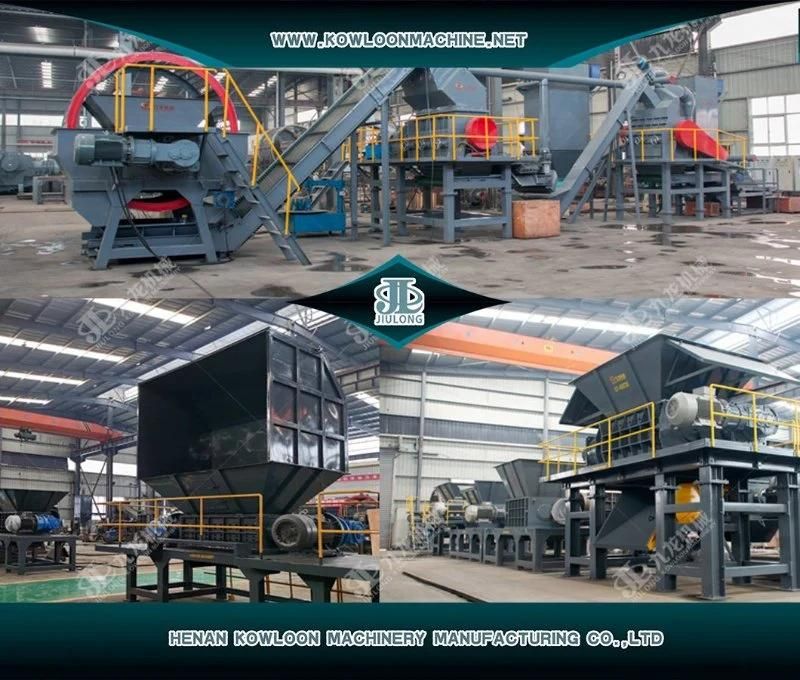

Main equipments of tire recycle plant

1. Tire debeader - pull out steel in tire bead
2. Double shaft shredder  - coarse crushing
3. Rasper - crushing shredded rubber into 10-15mm
4. Magnet separator - sorting out steel wire from 10-15mm rubber mulch
5. Granulator - Fine crushing 10-15mm rubber mulch into 1-7mm
6. Vibrating screen - sort different size rubber granules, separate and collect fiber
7. Rubber disc mill - milling 1-7mm rubber granules into rubber powder
8. Centrifugal sorter - supper fine rubber powder classification

9.  Packing system

Technical parameters


Model	JLRS1600D
Main motor	350kw x 1unit
Gearbox type	Hard surface gearbox

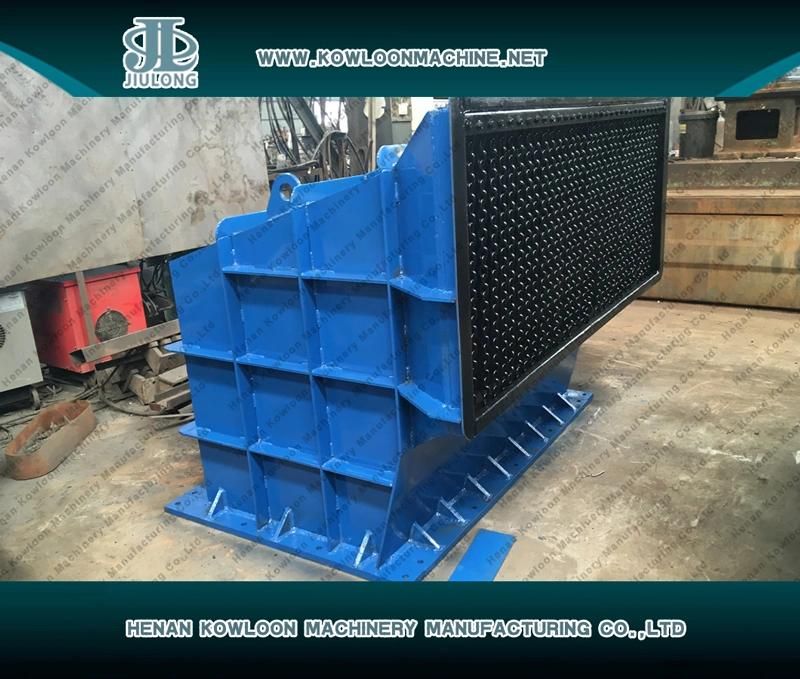

Screen	Mesh size Φ20mm, 1-pieces, thickness 16mm
End product size	16-20mm
Rotor	Diameter 1600mm
Blade	Made of H13
Screen	Thickness 16mm, hole size 20x20mm
Discharging system	3kw motor, vibrating table
Lubrication system	Equipped with self oil feeder
Control system	Mechanical control cabinet,  Schneider elements

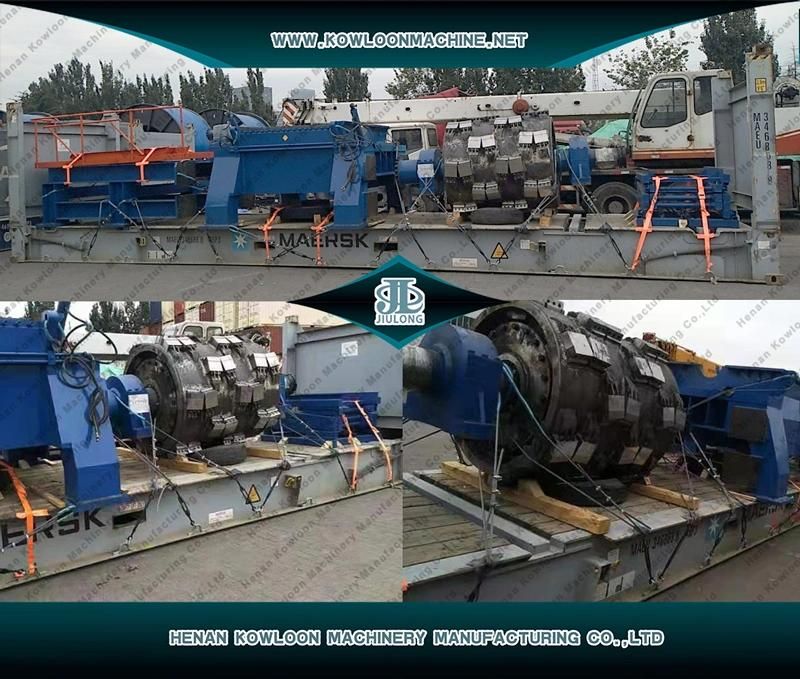

Delivery &Shipping for Twin Shaft Shredder

1. Plastic wraps to protect wood shredder, tire shredder from dust, moisture and corrosion.
2. Wooden case for compact machine or wearing parts as the outside package. Or according to the     customer requirements.
3. Excellant logistic team to guarantee the shredder machines to be safely shipped to customer warehouse,  no extra fee on export or import on custom.


Kowloon Service
  1. Pre-sales: Provide fitted solution and offer to customers, is able to adjust the layout of complete line to fit customers' working area, also provide technical support 24 hours service online.
2. After sales:
Kowloon skilled technicians are experienced at oversea installation; therefore they are available to assist with onsite installation, commissioning & training on request. Layout drawing, circuit diagram and maintenance manual will be provided together with our products after sales, so that ensure customers have plenty of time to get prepared for installation.
 3. Wearing parts support
Kowloon has widely built extensive cooperation with wearing parts partner manufacturers more than 14years, has ability to continuously provide wearing parts and after-sale service to global market.


Company Introduction

Henan Kowloon, located in industrial hub of China Zhengzhou city, is one professional manufacturer of various wood crushers and other recycling machinery. We were established since 2006, and it′ S been 14 years since we started exporting. By 2014, Kowloon machines were approved by CE, BV, SGS and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, such as Turkey, Spain, Romania, Italy, America, Mexico, Costa Rica, Saudi Arabia, Israel, Libya, Egypt, Uganda, South Africa, Kenya, Venezuela, Ecuador, Peru, Russia, India, Malaysia, Philippines, Indonesia, Australia, etc. Besides, Kowloon has owned two oversea distributors and after-sale service center and now are still growing continuously.

Henan Kowloon adopts advanced technology parts, design and craft, united technology from USA, Germany, Japan and Australia, not only suits Chinese market and woods, as well as different materials and countries. Main machines are as follows: Double-shaft shredder, drum wood chipper, multi-functional wood chipper, disc wood chipper, heavy-duty sawdust machine, hammer grinder, mobile shredder, mobile wood chipper, mobile sawdust machine, chaff cutter, fiber crusher, wood powder machine, rotary dryer, air-flow dryer, dust collector, cyclone, etc.

Kowloon support team has 4 professional engineers to provide clients professional solutions, facing multitudinous requirements, Kowloon team always pay patience and offer as more options as possible, to ensure every users have all security while running our machines, in this way, Kowloon keep growing and now owns ability of taking large wood processing project, wood sawdust, wood pellet and wood flour production line in China or abroad, under the support of internal business department, Kowloon is able to take "Turn-Key" projects in China or abroad.

Kowloon never stop on improving and researching, in past 19years, 80% traditional products get improved and various of new products were developed based on traditional technology, such mobile type, diesel wood chippers, heavy-duty shredders, wood pallet crusher… etc, more and more machines become popular in Chinese and abroad market, won a good reputation and corporate image, for better meets the worldwide market, Kowloon accept requests to customize machines according to users' demand, welcome to inquiry us with detailed requirements, all Kowloon people would offer best and all possibility!



FAQ for double shaft shredder

You May Have Following Questions:
1: Are You Trading Company or Factory?
 Kowloon Machinery is a Factory with 31 years experience in machinery manufacturing; we provide you completive Factory Price and good After-sale Service!


2: What about the Machine Installation?
For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary

3: How About the Spare Parts?
We offer some free spare parts like belt, gasket etc small parts, for the BLADES, KNIVES, SHAFTS etc important wearing parts, we suggest customers buy some along with the machines to save the shipping cost, and we have enough spares parts in stock.
4: What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service; if customers outside China have problems when machine working, just feel free to send us the picture or video to show us, we will give you solutions in 24hours.
5: Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
