• Model NO.：SR600-SR2500
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008, SGS,BV
• Size：1850X1300X1700mm
• Transport Package：Wooden Package,Film Package,Steel Frames Package,C
• Specification：CE,ISO9001,SGS
• Trademark：SOYU
• Origin：Suzhou
• HS Code：84778000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. SR600-SR2500 Automation Automatic Computerized Computerized Certification CE, ISO9001:2008, SGS/BV Size 1850X1300X1700mm Transport Package Wooden Package/Film Package/Steel Frames Package/C Specification CE/ISO9001/SGS Trademark SOYU Origin Suzhou HS Code 84778000 Production Capacity 1000sets/Year

Product Description

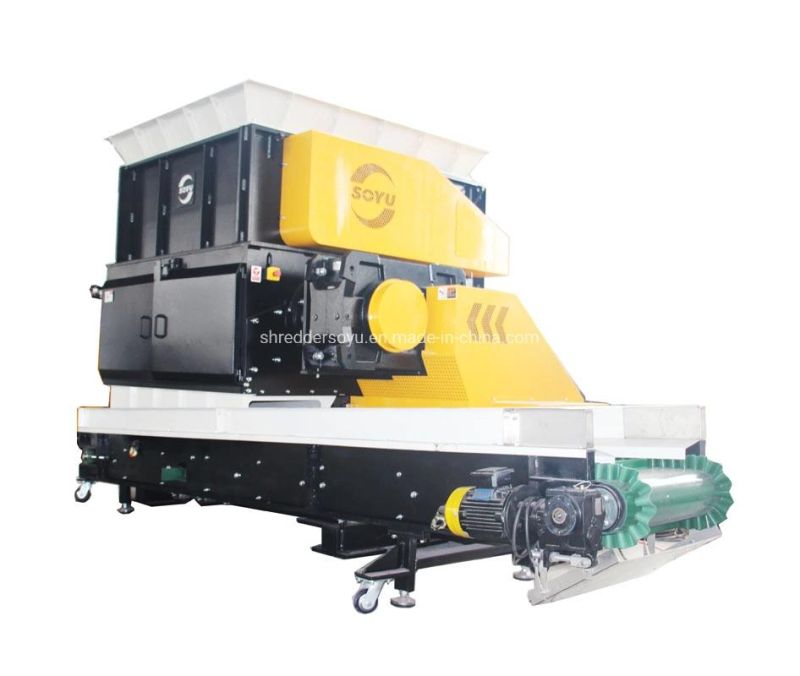

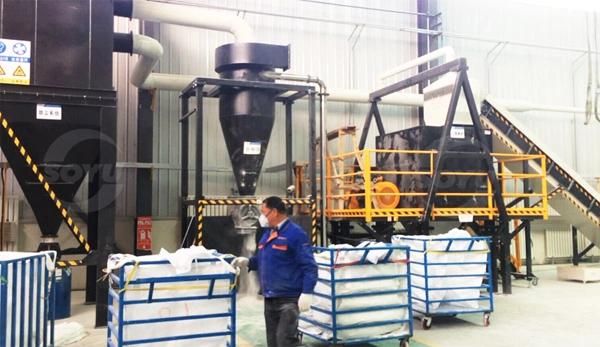

Glass Fiber Mesh Shredder
The glass steel crusher is driven by planetary gear reducer, the blade is made of high strength alloy steel, with strong wear resistance and high strength characteristics, differential operation between shafts, tearing, extrusion, bite and other functions.  The electrical part adopts Siemens electrical components programming control, with automatic overload detection protection and other functions.  Suitable for all kinds of large volume, difficult to break the material refinement, with uniform discharge, size controllable advantages, such as tearing: glass fiber reinforced plastic, iron sheet, steel sheet and so on.

Application scope:

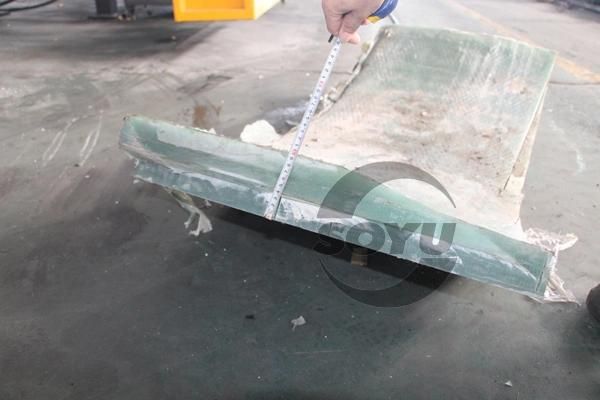

Glass fiber reinforced plastic



iron



Sheet steel



copper

Features:

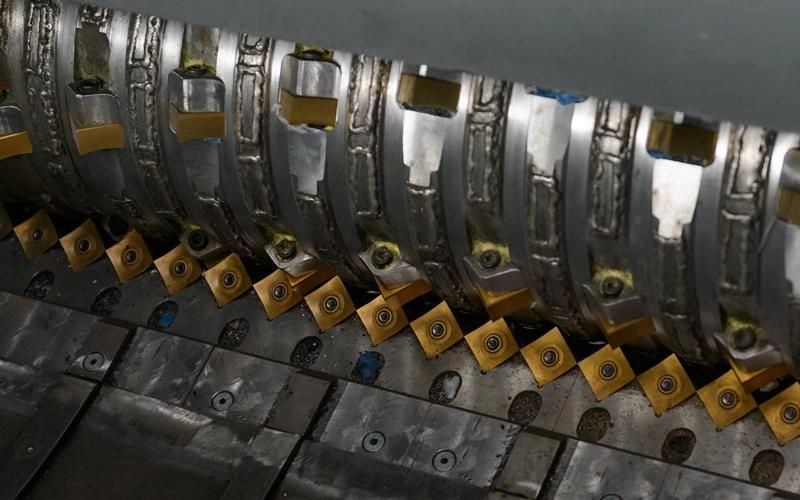

• Teeth are DC53 steel. Stator knives are D2 steel.

• The main electronic controls are a combination of Siemens .

• Microcomputer technology incorporating rotator speed variations with start, stop and reverse features.

• Automatic reverse sensors to protect the machine against over loading and jamming.

• Engineered using split bearing block technology so the blades can be changed quickly and efficiently.

• Specifically designed rotor to be extremely wear resistant.

• Rotor teeth can be rotated 4 times before they need changing, lowering running costs and reducing down time.

• Extremely versatile machine able to process a number of different materials

• Machinery protection, accord with the European CE standard.

Model	SR600	SR750	SR900	SR1100
Main shaft speed(rpm)	73	73	73	73
Ram travel(mm)	500	820	820	820
Rotor diameter(mm)	Φ220	Φ400	Φ400	Φ400
Number of rotor blades(pcs)	23	44	52	66
Number of fixed blades(pcs)	4	6	6	8
Discharge height(mm)	500	610	610	610
Screen holes diameter(mm)	40	40	40	40
Motor power(kw)	18.5	37	45	55~75
Hydraulic power(kw)	1.5	2.2	2.2	5.5
Cutting chamber dimensions(mm)	540x600	830x708	830x840	830x1071
Overall dimensions(LxWxH)(mm)	1800x1350x1700	2810x2000x2115	2810x2100x2115	2810x2650x2115
Weight(kg)	Approx 1600	Approx 4460	Approx 4560	Approx 5464

Model	SR1400	SR1600	SR2100	SR2500
Main shaft speed(rpm)	73	73	73	73
Ram travel(mm)	820	1000	1000	1200
Rotor diameter(mm)	Φ400	Φ480	Φ480	Φ660
Number of rotor blades(pcs)	80	94	122	150
Number of fixed blades(pcs)	10	12	16	20
Discharge height(mm)	610	950	950	950
Screen holes diameter(mm)	40	40	40	40
Motor power(kw)	75~90	2x55~2x75	2x75~2x90	2x90~2x110
Hydraulic power(kw)	5.5	7.5	7.5	11
Cutting chamber dimensions(mm)	830x1302	1000x1533	1000x1995	1200x2457
Overall dimensions(LxWxH)(mm)	2810x2890x2115	3475x4100x2700	3475x4900x2700	3475x5400x2700
Weight(kg)	Approx 6200	Approx 10800	Approx 13000	Approx 16000
