UPVC Window Making Machine/ UPVC Door Window Making Machine

Qingdao Tongsan Plastic Machinery Co., Ltd.
  • Type：Profile Extruder
  • Plastic Processed：PVC
  • Product Type：Extrusion Molding Machine
  • Feeding Mode：One Feed
  • Assembly Structure：Integral Type Extruder
  • Screw：Twin-Screw

Base Info

  • Model NO.：SJ65,132
  • Engagement System：Full Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Machine Type：PVC Window and Door Making Machine
  • Material：PVC UPVC CPVC
  • Product Width：Customerized
  • Extruder Size：Sj51,105 65,132 80,156
  • Production Speed：0.5-5m,Min
  • Product：Ceiling,Wall,Skirting,Window,Door Frame
  • Transport Package：Shipping Packing
  • Specification：SJ65,132
  • Trademark：TS
  • Origin：China
  • HS Code：8477209000
  • Production Capacity：100sets,Year

Description

for recycle wastagemiller air compressorprovide compressed airlaminating/hot stamping machinesurface treatmentwater chillerprovide chilling water

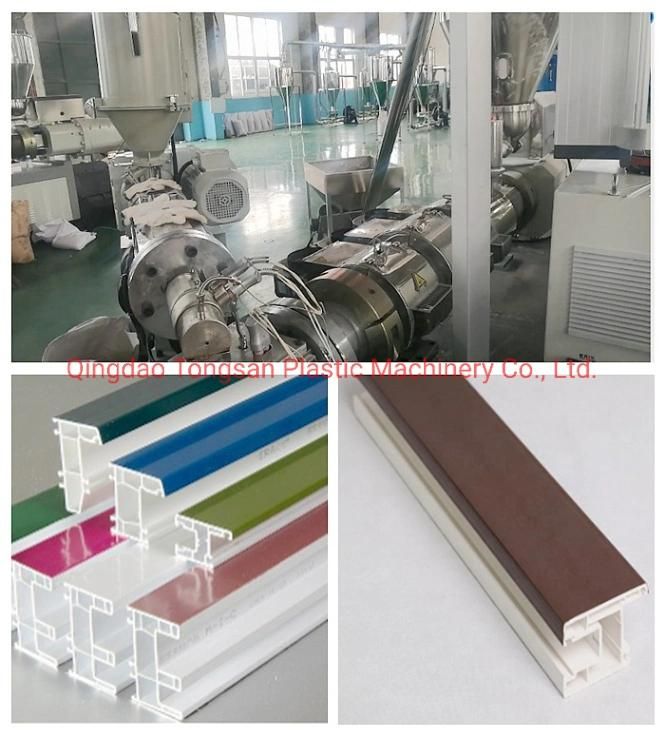

a. connical double screw extruder with auto loader
machine model: SJSZ51/105,  65/132,  80/156,  92/188
motor: SIEMENS
inverter: ABB
temperature controller: SIEMENS
UPVC Window Making Machine/ UPVC Door Window Making Machine


b. die unit and mold
material: 3Cr17, tempering HRC28-32, ensure anti-rust, hardness and service life
Calibrator size: 240mm or 320mm
Quantity of calibrator section:1 or 2 or 3 or 4 sets according to product size shape
Water tank length: 2000mm or 4000mm, fiber glass board, accessories are made of stainless steel

UPVC Window Making Machine/ UPVC Door Window Making Machine

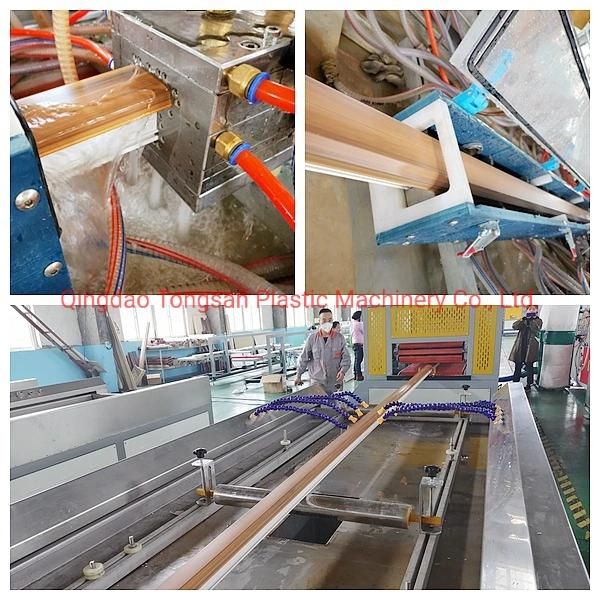

c. vacuum calibrating table
length: 6m,8m,10m,12m
material of surface: 304 stainless steel
vacuum pump included
water pump included

UPVC Window Making Machine/ UPVC Door Window Making Machine

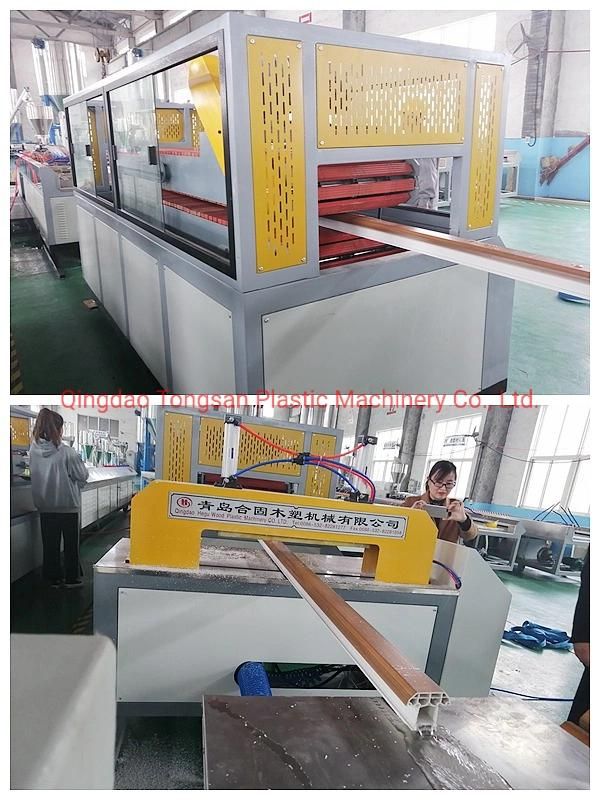

d. haul off and cutting machine
haul off with double gear box
haul off controlled by ABB inverter
saw blade cutting
dust collector included
UPVC Window Making Machine/ UPVC Door Window Making Machine

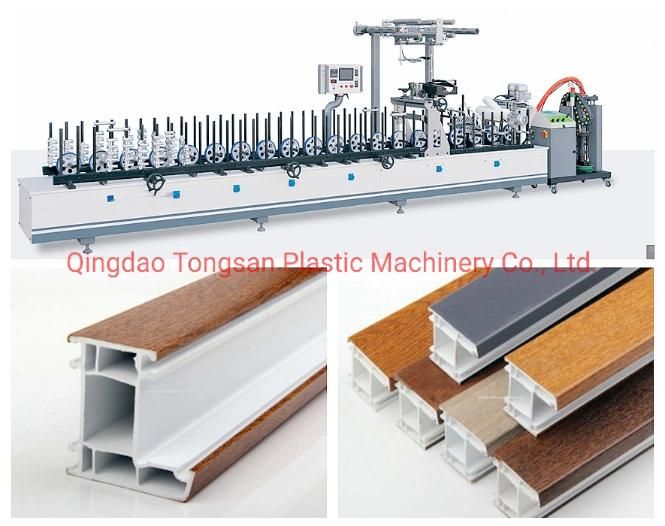

e. surface treatment machine:
mostly laminating is used for pvc window and door profile

UPVC Window Making Machine/ UPVC Door Window Making Machine

f. ASA co extrusion can be achived online to get wooden grain surface
ASA co extrusion to get wooden grain
UPVC Window Making Machine/ UPVC Door Window Making Machine

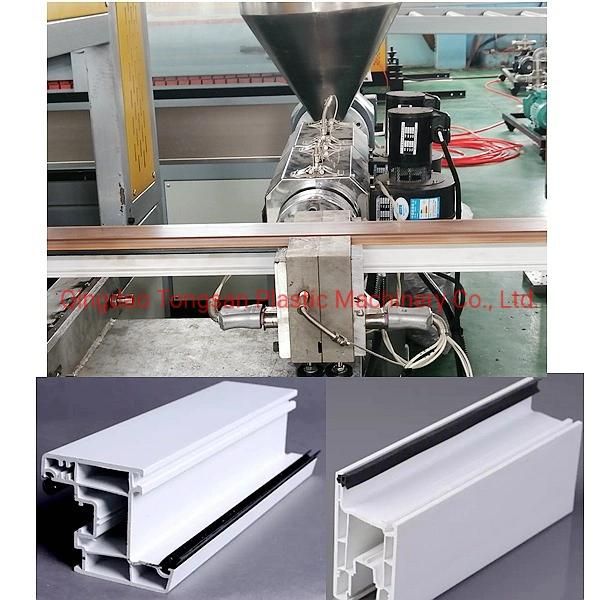

g. pvc seal extruded online is possible
you can extrude pvc seal gasket online
UPVC Window Making Machine/ UPVC Door Window Making Machine

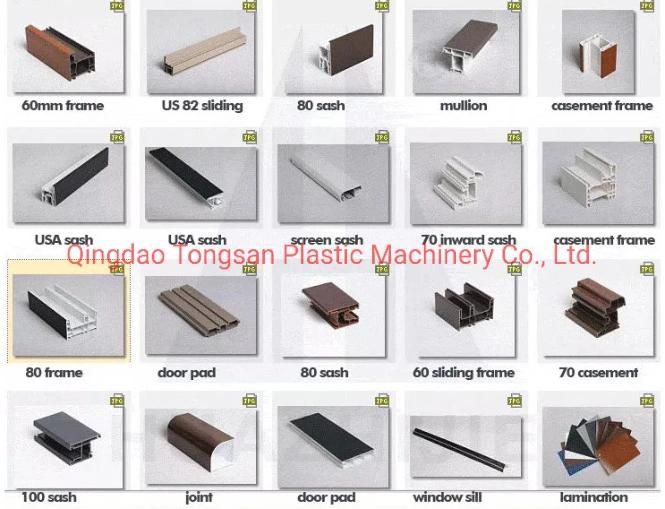

h. by change mold, you can get different pvc window and door profiles
UPVC Window Making Machine/ UPVC Door Window Making Machine

UPVC Window Making Machine/ UPVC Door Window Making Machine

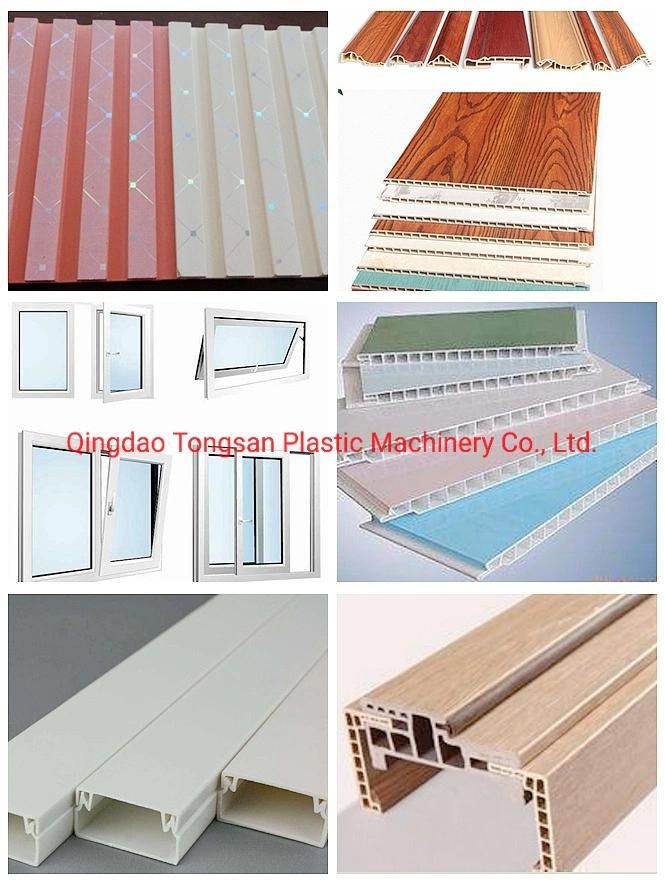

4. by change mold, same machine can produce the following products:
wall panel, skirting, window frame, door frame,decorative profile
