• Model NO.：TL6000
• Specification：as per layout of washing line
• Trademark：BoReTech
• Origin：China
• HS Code：8477800000
• Production Capacity：15 Sets Per Year

Basic Info.

Model NO. TL6000 Specification as per layout of washing line Trademark BoReTech Origin China HS Code 8477800000 Production Capacity 15 Sets Per Year

Product Description

Big Capacity PET Bottle Washing Line (Bottle to Bottle Grade, Fiber grade)
Input Capacity: 500 kg/h-10000 kg/h
 BoReTech PET bottle recycling line is used to recycle big capacity and stable quality post-consumer PET bottles to rPET flakes.
We have exported more than 150 sets of PET bottle washing lines over the world.
Pic.
Leading Supplier of Large Scale Food Grade PET Bottle Recycling System







Products Feature:
Greater capacity - Greater than 6t/hr input capacity of PET bottle recycling system with full automation and intelligentialize.
Water-saving - provide wastewater treatment, recycling 1-ton flakes only need 0.5t water
Bottle to fiber integration -put into waste bottles and get high-quality recycled fiber, reasonable process, and smart applications can reduce manpower and make sure the quality of fiber.

Products Feature:
1. Solutions for diversification of PET bottle bales;
2. Automatic de-baling technology, reduces labor, a strong bale breaking ability for high-density PET bottle bales;
3. Patent technology for PVC label removal;
4. Patented Pre-washing and hot washing process to ensure the cleanliness of rPET flakes;
5. Integrated technology and capability for automatic sorting machine and PET bottle recycling line;
6. The hot washing process reduces impurities content to achieve food-grade index;
7. Stable and reliable quality of rPET flakes, online inspection to ensure the stability of rPET flakes;
8. Completed online water recycling treatment system for pre-washing, hot-washing and rinsing.
9. Low operation breakdown, production management guidance service for the customer;

Process Flowchart
De-baling - Dry Trommel - Metal Separation - Label Separation - Bottle Pre-washing - Automatic Sorting - Manual Sorting - Wet Grinding - Hot Flotation - Friction - Continuous Rinsing - Drying - Dust Removal - Metal Separation - Automatic Flakes Sorting - Packing
A standard sampling of the PET bottle recycling process, equipment configuration, and the process will be optimized according to raw materials.

Estimated Plant Parameters--Food Grade

Capacity  (kg/h)	Required Area (m²)	Installation Power (kW)	Steam Consumption (kg/h)	Compressed air (m²/min)	Water consumption(m³/hr)	Manpower
500	600	300	280	1.5	0.75
1500	800	600	700	3.5	2.25	5
3000	1200	900	1300	6.5	4.5	7
6000	3000	1000	2300	12	9	11
9000	4500	1600	3200	20	14	16

Estimated Plant Parameters -Fiber Grade

Capacity (kg/h)	Installation power (kW)	Required  area (m²)	Steam Consumption(kg/h)	Compressed Air (m²/min)	Water Consumption(m³/hr)	Manpower
500	170	800	200	0.5	0.75	8
1500	400	1200	700	0.5	2.25	12
3000	600	1800	1300	0.7	4.5	18
6000	900	2800	2300	1	9	30
9000	1400	4200	3200	1.5	14	40

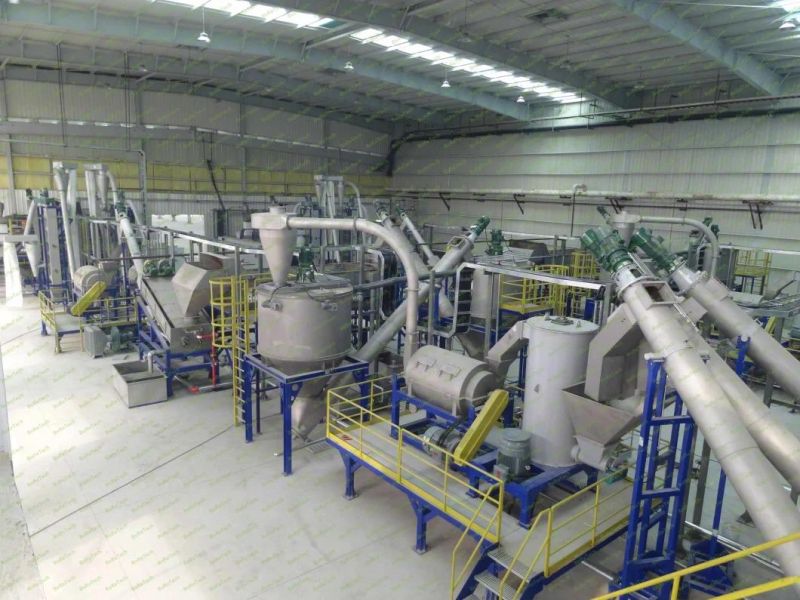

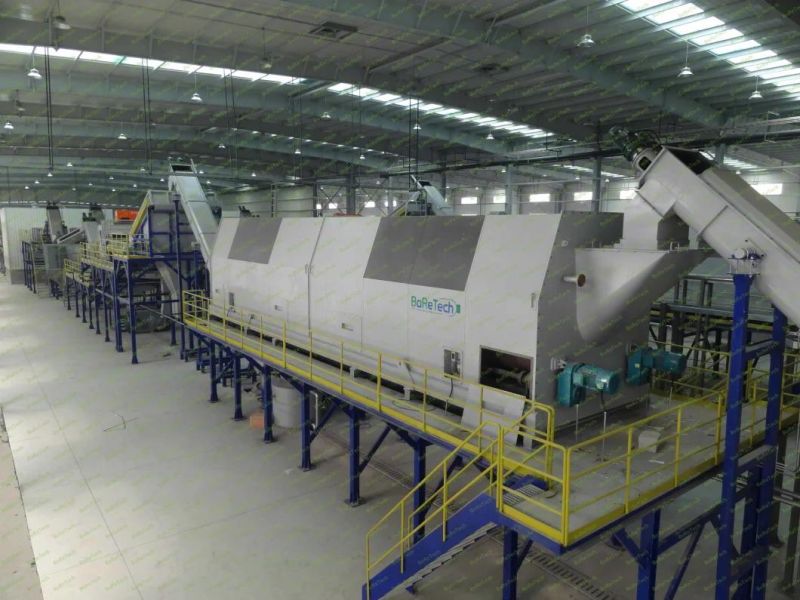

MAIN Equipment
Pic.






Packing & Loading
BoReTech will pack the Goods into containers reasonably and under international standards and requirements applicable to the packaging of goods of this type. like Film, Wooded Case, Regular Seaworthy Packing, Ect.
Pic.






Final Product - rPET Flakes
Pic.




PET Flakes Quality Standard Reference Table (Food Grade)

Moisture(%)	<1	Label (ppm)	<15
PVC(ppm)	<30	Inorganic Compounds (ppm)	<10
Glue  (ppm)	<10	PH	7.5±0.5
PP/PE (ppm)	<15	Total Impurity (ppm)	<100
Metal  (ppm)	<10	Flakes Size (mm)	12mm

PET Flakes Quality Standard Reference Table (Fiber Grade)


Moisture(%)	≤1.5	Label (ppm)	≤30
PVC(ppm)	≤100	Metal  (ppm)	<10
Glue  (ppm)	≤30	PP/PE (ppm)	<15
Flakes Size (mm)	12	Total Impurity (ppm)	≤ 200

-----------------------------------------------------------------------------------------------------------------------------------------------










1,pre-sale support:
Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
2,after-sale service:
Warranty:1 year for machinery,6 months for electrical.
For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
3,technical support:
Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.


BoReTech is one of the major supplier of PET bottle recycling system in Asia . We uses the around 30 years of fiber making and bottle recycling experiences to manufacture PET Bottle recycling machine and configure Pelletizing line, Polyester Staple Fiber line, POY line and Bottle to Bottle Line. At present, we have supplied about 170 sets plant for more than 30 countries. Our customers in the US, Japan, EU manufacture food grade rPET resin for such well-known brand owner's such as Coca Cola, Niagara Bottling, Nestle, etc.
Boretech can help our customers to make right configuration of the machinery, and find the right position in the industries. The most important value is that we can help our customers to minimize the learning cost and to avoid making any mistake during investment.
