Double Head Film Blowing Machine
Ruian Hoin Machinery Co., Ltd.- Type:Dual Head Plastic Film Blowing Machine
- Raw Material:HDPE
- Maximum Folding Width of Film:800mm
- Screw Diameter:65mm
- Automation:Automatic
- Computerized:Computerized
Base Info
- Model NO.:SJ-55,FM-500 SJ-55,FM-600 SJ-60,FM-700
- Machine Weight:4T
- Certification:CE, ISO9001:2008
- Double Head:Two Rolls
- Plastic Film:PE Extruder
- HDPE:Blown Machine
- Transport Package:Stretch Film or Wooden Case
- Specification:CE, ISO9001 certificate
- Trademark:HOIN
- Origin:Ruian, Zhejiang, China
- HS Code:84773010
- Production Capacity:30 Set,Month
Description
Basic Info.
Model NO. SJ-55/FM-500 SJ-55/FM-600 SJ-60/FM-700 Machine Weight 4T Certification CE, ISO9001:2008 Double Head Two Rolls Plastic Film PE Extruder HDPE Blown Machine Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 84773010 Production Capacity 30 Set/MonthProduct Description

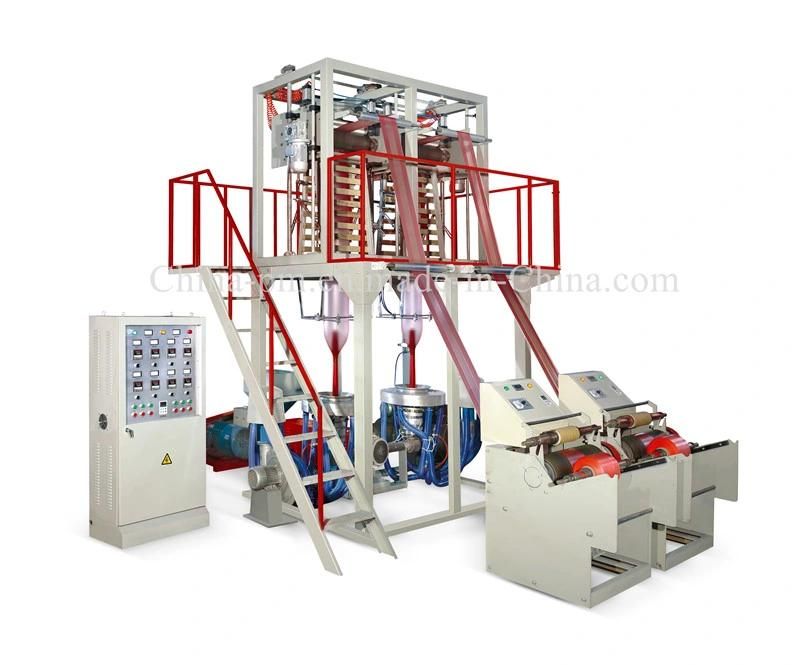

Product Specification:This machine set is used for blowing Low-density polyethylene(LDPE) and high-density polyethyene(HDPE)plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, garment industry and textile industry, etc.
Characteristics:
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance. Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity, saving energy, labour and workshop area, etc.
Technology Parameter:
Model | SJ-55/FM-500 | SJ-55/FM-600 | SJ-60/FM-700 |
Screw Diameter | 55mm | 55mm | 60mm |
Screw Ratio | 1: 28 L /D | 1: 28 L /D | 1: 28 L /D |
Screw Speed | 10-110r/min | 10-110r/min | 10-110r/min |
Max. Extrusion output | 46kg /h | 46kg /h | 55kg /h |
Max. Folding Width of Film | 400mm ×2 | 500mm ×2 | 600mm ×2 |
Single-sided Thickness of Film | 0.008 -0.10mm | 0.008 -0.10mm | 0.008 -0.10mm |
Power of Main Motor | 15Kw | 15Kw | 18.5Kw |
Total Power | 26Kw | 26Kw | 30Kw |
Weight of Machine | 2700kg | 2800kg | 3200kg |
Overall Dimensions(L×W×H) | 4800×2000× 3200mm | 4800×2200× 3500mm | 4800*2400*3800 |
After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 80USD per day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
