Big Bag Plastic Film Shredder
Changshu Shi Shouyu Machinery Co., Ltd.- Warranty：1year
- Type：Shredder Big Bag
- Raw Material：Plastic, Film,Metal, Glass, Waste, Wood.
- Structure：Top Feed
- Knife Classification：Piece Knife Crusher
- Knife Roll：Solid Knife Roller
Base Info
- Model NO.：Multiple models
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, SGS,BV
- Size：2700X2300X2150
- Transport Package：Wooden Package,Film Package,Steel Frames Package,C
- Specification：CE,ISO9001,SGS
- Trademark：SOYU
- Origin：Suzhou
- HS Code：84778000
- Production Capacity：1000sets,Year
Description
Basic Info.
Model NO. Multiple models Automation Automatic Computerized Computerized Certification CE, ISO9001:2008, SGS/BV Size 2700X2300X2150 Transport Package Wooden Package/Film Package/Steel Frames Package/C Specification CE/ISO9001/SGS Trademark SOYU Origin Suzhou HS Code 84778000 Production Capacity 1000sets/YearProduct Description

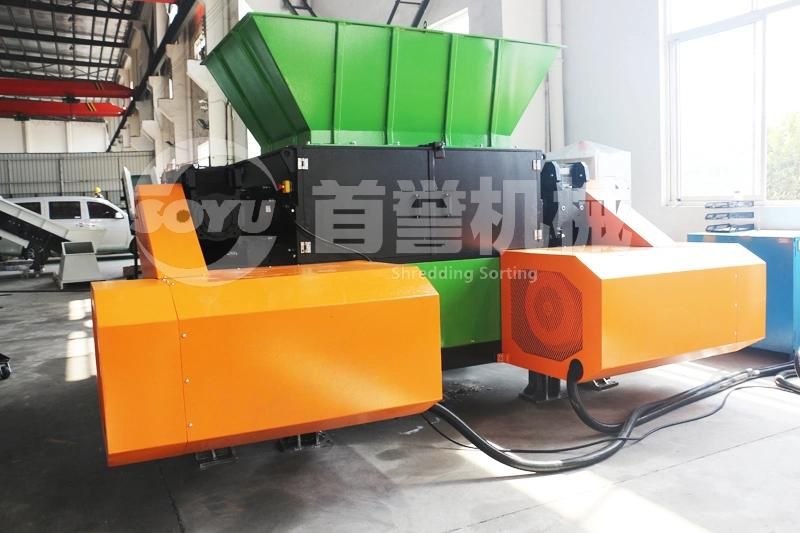

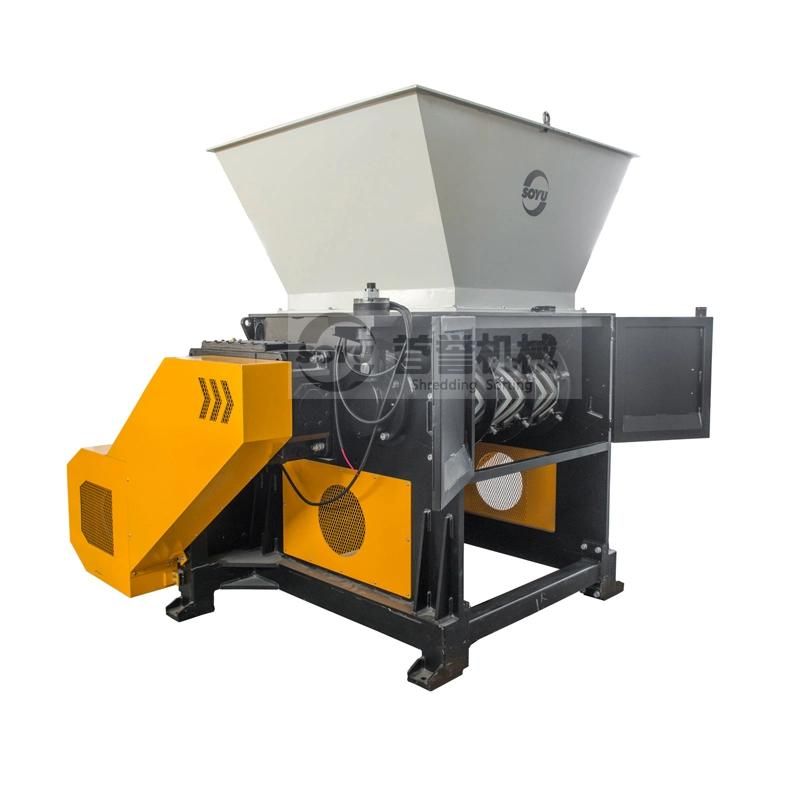

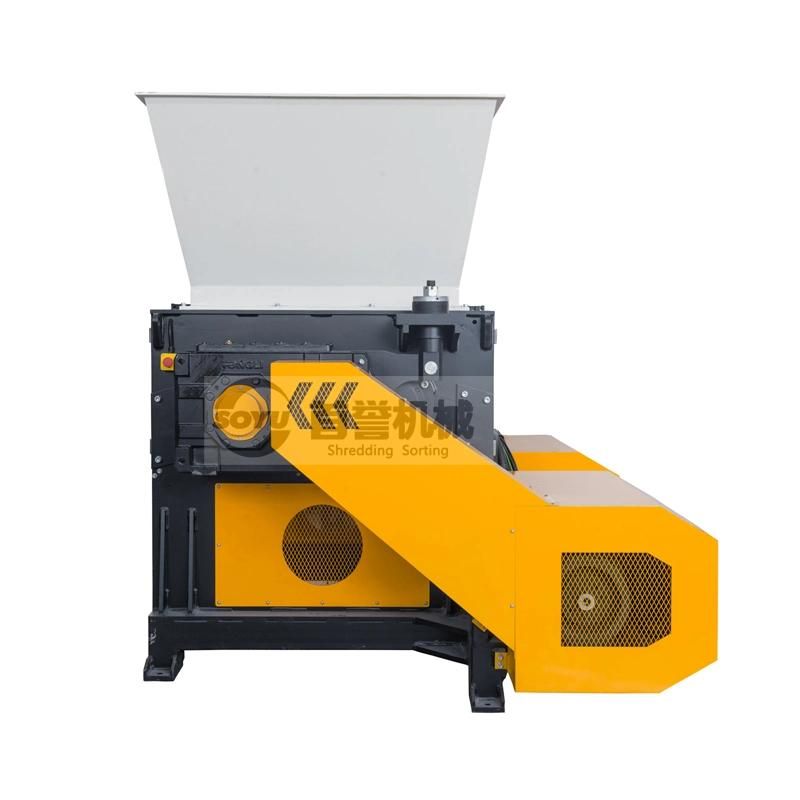

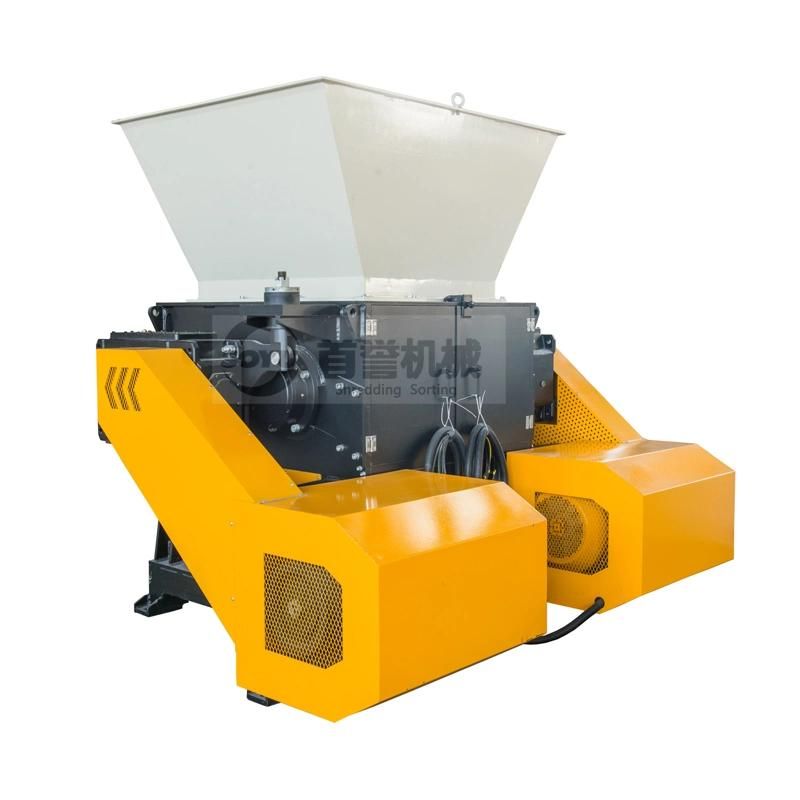

Big Bag Plastic Film Shredder
This machine specifically for PP / PE waste film, woven bags, big woven bags, paper design, production models according to the size, reach 500-6000KG per hour, the expected size of about 40-100MM.
Features:
Large feed opening, easy to feed;
Automatic continuous crushing, high yield;
Knife roller surface using surface hardening treatment can prolong life;
Standardized blade design, blade replacement fast, convenient and reduce the cost;
Standardized screen design, size optional, easy to replace.
| Model | SR600 | SR750 | SR900 | SR1100 |
| Main shaft speed(rpm) | 73 | 73 | 73 | 73 |
| Ram travel(mm) | 500 | 820 | 820 | 820 |
| Rotor diameter(mm) | Φ220 | Φ400 | Φ400 | Φ400 |
| Number of rotor blades(pcs) | 23 | 44 | 52 | 66 |
| Number of fixed blades(pcs) | 4 | 6 | 6 | 8 |
| Discharge height(mm) | 500 | 610 | 610 | 610 |
| Screen holes diameter(mm) | 40 | 40 | 40 | 40 |
| Motor power(kw) | 18.5 | 37 | 45 | 55~75 |
| Hydraulic power(kw) | 1.5 | 2.2 | 2.2 | 5.5 |
| Cutting chamber dimensions(mm) | 540x600 | 830x708 | 830x840 | 830x1071 |
| Overall dimensions(LxWxH)(mm) | 1800x1350x1700 | 2810x2000x2115 | 2810x2100x2115 | 2810x2650x2115 |
| Weight(kg) | Approx 1600 | Approx 4460 | Approx 4560 | Approx 5464 |
