PVC Corrugated Roof Panel Extrusion Line
GPM Machinery (Shanghai) Co., Ltd.- Product Type：PVC Board
- Board Layers：Single Plate
- Screw No.：Double-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：GYF
- Customized：Customized
- Condition：New
- Product Name：PVC Corrugated Board Extrusion Line
- Processing Type：Wall Board Extrusion
- Raw Material：PVC Powder
- Usage：Factory,Warehouse,Carport,Coaming
- Motor：Simens
- Inverter：ABB Brand
- Contactor：France Schneider Contactors
- Temperature Control：Japan Omron
- Output：250-550kg,H
- Motor Power：37kw-132kw
- Transport Package：PE Film Winding Wrapping
- Specification：5mm-50mm
- Trademark：GPM
- Origin：Shanghai
- HS Code：8477209000
- Production Capacity：500 Sets,Year
Description
SPECIFICATIONS FOR PVC Corrugated Roof Panel Extrusion LineModel GYF600 GYF800 GYF1000 GYF1250 Max.width of product(mm) 600 800 1000 1250 Extruder model GSZ65/132 GSZ80/156 GSZ92/188 GSZ92/188 Max.extrusion capacity(kg/h) 250 350 450 550 Extruder 37 55 110 132 Cooling water(m³/h) 12 13 15 18 Compressed air(m³/h) 0.5 0.6 0.8 1
Display of PVC Corrugated Roof Panel Extrusion Line
Name: WPC Product
Brand: GPM
Original: Shanghai, China
PVC wide board , multiple hollow plate
Name:Strong haul-off
Brand: GPM
Original: Shanghai , China
Enhanced driving haul-off machine,amplify torque more than 30% than the normal type .

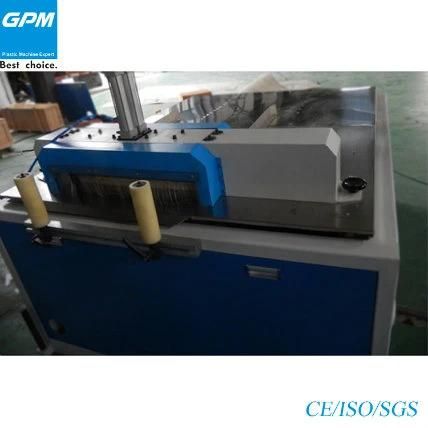

Name:Transverse cutting machine
Brand: GPM
Original: Shanghai , China
Precision transverse cutting machine, smooth cutting surface and no chipping .
Name: Co-extrusion die
Brand: GPM
Original: Shanghai , China
Single-sided or double-sided co-extrusion die and stereotypes template, suitable for PVC roofing tile or hollow plate
Display of PVC Corrugated Roof Panel Extrusion Line
Name: WPC Product
Brand: GPM
Original: Shanghai, China
PVC wide board , multiple hollow plate
Name:Strong haul-off
Brand: GPM
Original: Shanghai , China
Enhanced driving haul-off machine,amplify torque more than 30% than the normal type .
Name:Transverse cutting machine
Brand: GPM
Original: Shanghai , China
Precision transverse cutting machine, smooth cutting surface and no chipping .
Name: Co-extrusion die
Brand: GPM
Original: Shanghai , China
Single-sided or double-sided co-extrusion die and stereotypes template, suitable for PVC roofing tile or hollow plate
