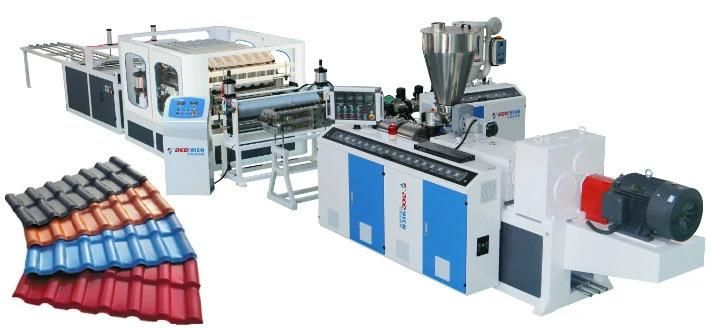

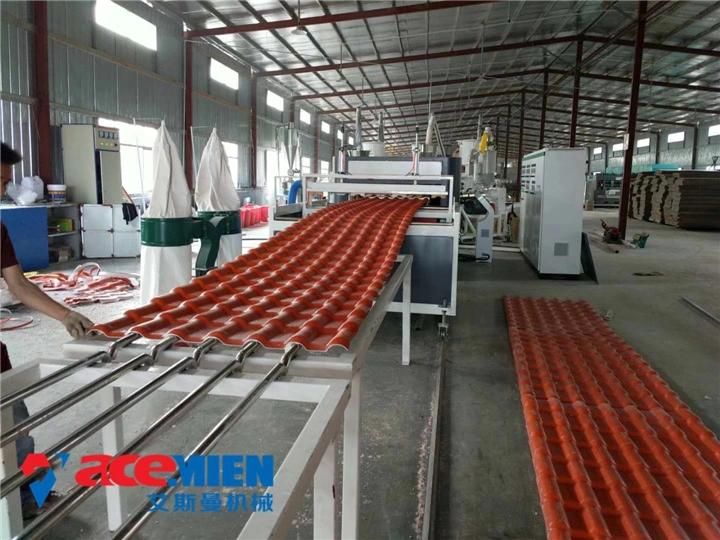

PVC+ASA Roofing tile production line



Machine list:

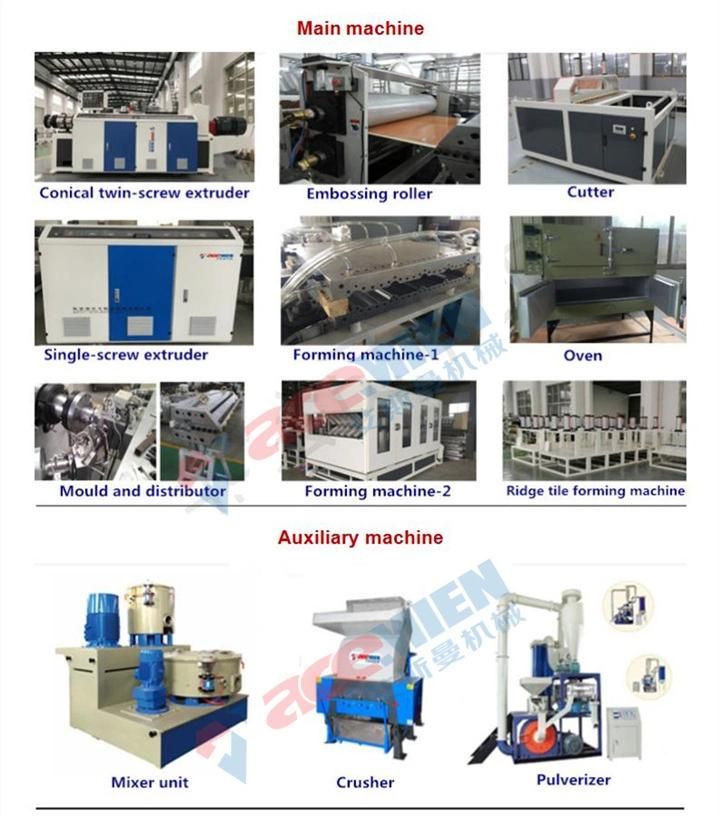

No.	Main machine name	Qty.
1	Screw loader	1set
2	SJZ80/156 conical twin-screw extruder	1set
3	Vacuum loader and drying hopper	1set
4	SJ50/30 single screw extruder	1set
5	Extrusion mould and distributor	1set
6	Roof tile forming machine with trimming device	1set
7	Haul off unit	1set
8	Cutter	1set
9	Stacker	1set
10	Ridge tile Oven	1set
11	Ridge tile Forming machine	1set/4sets



No.	Auxiliary machine name	Qty.
12	Screw loader	1set
13	Mixer unit	1set
14	Crusher	1set
15	Pulverizer	1set



Machine name	Introduction
SJZ80/156 conical twin-screw extruder	Function:make bottom layer Capacity:280-350kg/h Feeder with 2 screws,Feeding smooth and prevent bridging. 2 sets vacuum pots,when clean 1 set pot,do not stop machine running,because other pot also can use,otherwise there is 1 set vacuum pot,it will waste about 10m roof tile when clean pot. Big nut,this can protect the screw and barrel
SJ50/30 single screw extruder	Function:make surface layer(ASA/PMMA) With vacuum loader and drying hopper,can make the ASA/PMMA granules dryer. Surface color can according to customers.
Extrusion mould and distributor	Function:make ≥ 2 layers roof tile,need the distributor,it can make surface layer and bottom layer together.
Embossing roller machine	Function:Embossing pattern, Make the surface more beautiful.The pattern can according to customers. With a type wheel ,customer can type your company name,brand,words etc.
Forming machine with trimming device	Function:make roofing tile. Type 1: make corrugated tile             forming machine with a length counter. type 2: make glazed tile             forming machine witha wave counter.
Cutter	Function:according to customers needed length,cutting the roof tile.There is a PLC control,it can set 5 data.
Ridge tile Oven	Function: put the flat tile to the Oven, when the temperature reach to 150ºC,put the flat tile to the Ridge tile forming machine.
Ridge tile Forming machine	Function:according to ridge mould to make the ridge tile. Corrugated ridge mould:1set         Glazed ridge mould:4sets All kinds of ridge tiles,we can according to customers requirements. Ridge tile mould: Alloy aluminum,surface with polishing process.



Auxiliary machine name	Introduction
Mixer unit	Function:mixing  PVC powder, CaCO3, CPE, Stearic acid , Compound stabilizer ,ACR etc.
Crusher	Function:crush the waste roof tile and recycled PVC materials,such as PVC pipe,sheet,profile etc.
Pulverizer	Function:grind the PVC flakes to powder.

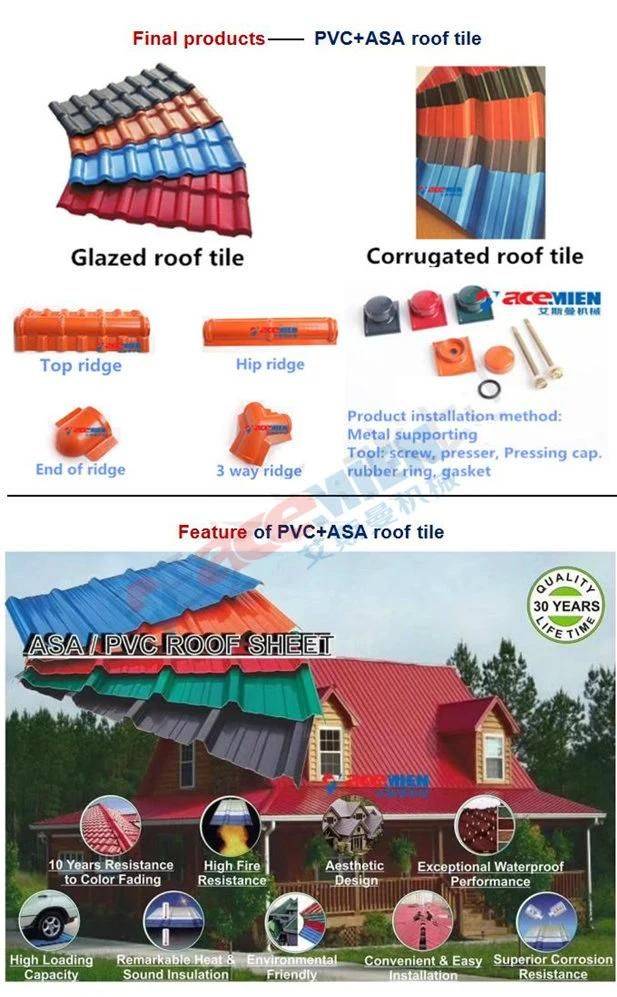

Final product:

Raw materials	Bottom layer: PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer, ACR, paraffin. Surface layer: ASA granule
Description final product	Glazed tile: Width:880mm;1040mm Thickness: 1.5~3mm; Main tile:1set Ridge tile:4sets Corrugated tile: Width:920mm;1130mm Thickness: 1.5~3mm; Main tile:1set Ridge tile:1set All kinds of ridges,customers can choose.

 Feature of roofing tile:
ASA benefit:Longer life using ,anti-UV,keep color for more than 10 years
1.Heat & sound insulation
2.Water resistance
3.Fire retardant
4.Corrosion proof
5.Light weight
6.Easy to install and move
7.Cost effective in installation (as less steel and less overlap)
8.Chemical and alkali resistance
9.Eco friendly
10.As per the efficiency and benefits it provides



Work condition (Provide by customer):

Warehouse/Workshop	Machine Dimension (M*M*M): 25(L)×5(W) ×3.5 (H) Crane: Machine positioning
Temperature & Humidity	≤40ºC, ≤95%
Power supply	3-phase, 380 V, 50 Hz(or customized)
Wire/cables:	Wires/cables from power supply to control cabinet of this production line;
Cooling Water pool size	8-12m³
Lubrication oil:	Sinopec, Exxon mobile
Compressor	necessary (7.5kw)

Energy consumption

Installation power	Total 284.75KW,Actual consumption about 70% Suggested 200KVA transformer,Needing at least 150KVA transformer
Cooling Water	≤20ºC, ≥0.3Mpa, ~5-6tons/hr
Compressed air	0.3m3/min, >0.6Mpa
Manpower	3 Persons/shift
