5gallon Pet Preform Plastic Inject/Injection Mould/Molding Machine 380ton
Taizhou Doria Plastic Equipments Co., Ltd.- Type：Preform Injection
- Structure：Horizontal
- Plastic Type：Thermoplastic
- Plasticizing Way：Screw Type
- Clamping Way：Hydraulic & Mechanical
- Automation：Automatic
Base Info
- Model NO.：injection machine 380
- Computerized：Computerized
- Certification：CE
- Product Capacity：380ton
- Shot Weight：1120PS
- Motor：Servo
- Payment：T,T;LC
- Delivery：35-45days
- Application：Application
- Transport Package：Plastic Film
- Specification：metal
- Trademark：D-R
- Origin：Taizhouhuangyan
- HS Code：8477101090
- Production Capacity：Clamping Stroke 380tons
Description
Basic Info.
Model NO. injection machine 380 Computerized Computerized Certification CE Product Capacity 380ton Shot Weight 1120PS Motor Servo Payment T/T;LC Delivery 35-45days Application Application Transport Package Plastic Film Specification metal Trademark D-R Origin Taizhouhuangyan HS Code 8477101090 Production Capacity Clamping Stroke 380tonsProduct Description

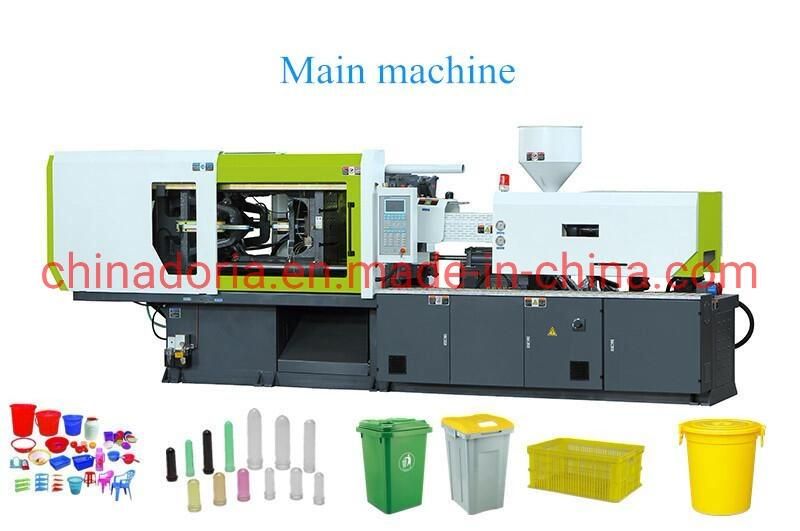

Specification of D-RI380 plastic injection moulding machine1. Product details:
2. Technical data of D-RI380
| Type items | D-RI 380 |
| Screw diameter (mm) | 70 |
| Injection pressure (Mpa) | 185 |
| Shot weight(PS) | 1120 |
| Screw L/D ratio (L/D) | 20:1 |
| Screw stroke(mm) | 315 |
| Screw speed (r.p.m) | 5-200 |
| Injection rate (g/s) | 318 |
| Plasticizing capacity | 52 |
| Clamping force (KN) | 380 |
| Mould clamping stroke (mm) | 680 |
| Max daylight opening (mm) | 1400 |
| Mould thickness(Min-Max) | 250-720 |
| Space between Tie-bars (mm) | 710*710 |
| Hydraulic ejection force(tons) | 11 |
| Hydraulic Ejector stroke (mm) | 200 |
| System pressure | 16 |
| Pump motor power (KW) | 37 |
| Heat power (KW) | 19 |
| Temperature control zones | 5+1 |
| Tank capacity(L) | 1000 |
| Machine dimension (m) | 7.18*1.95*2.6 |
| Machine weight (ton) | 11.5 |
3.1 AUTOLOADER HOPPER DRYER
3.1.1. Heating capacity: 300kg/hour.
3.1.2. PLC controlling system, easy to operate.
3.1.3. Automatic alarm for overloading/shortage
3.1.4. Adopting inductive fan, which is durable and anti-noise.3.
3.2 The specification of Water Chiller 12HP (OUBA):
3.2.1, Size of machine: 1200*700*1300mm;
3.2.2, Tank capacity: 200L;
3.2.3, weight: 100KG;
3.2.4, cooling flow rate: 5.1cbm/hr
3.2.5, Cooling water pipe size: 40DN.
3.2.6, water pump power: 0.75KW;
3.2.7, Refrigerants: R22
3.3 cooling tower:
3.4 The specification of Dehumidifier:
3.4.1. Compressor capacity: 6KW;
3.4.2. pump capacity: 2HP.
3.4.3. Air flow: 130cbm/min
3.4.4. Refrigerant medium: R22.
3.4.5. Cooling water pipe size: 25DN.

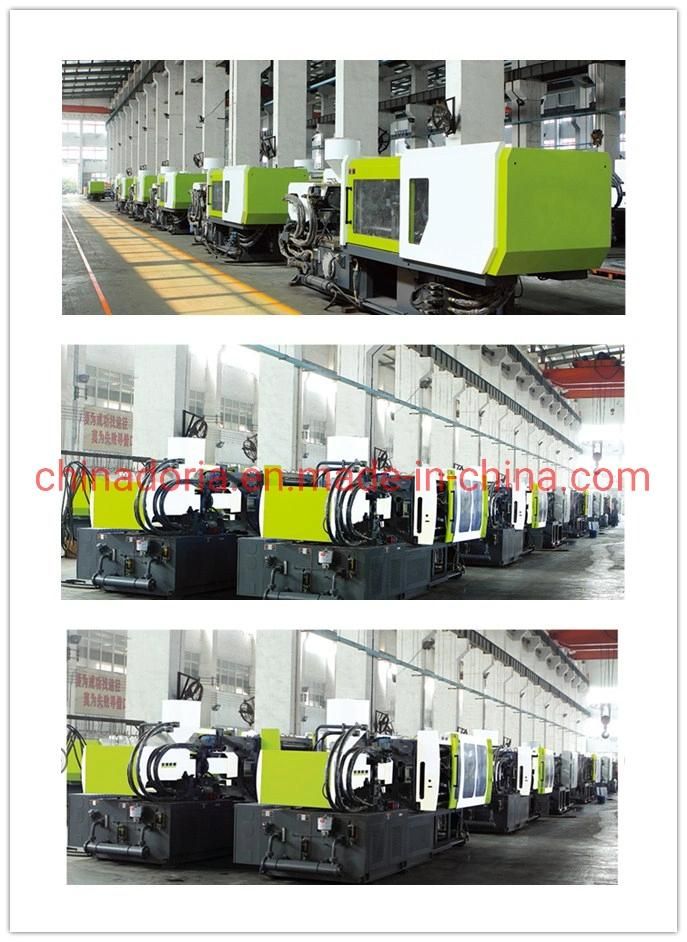

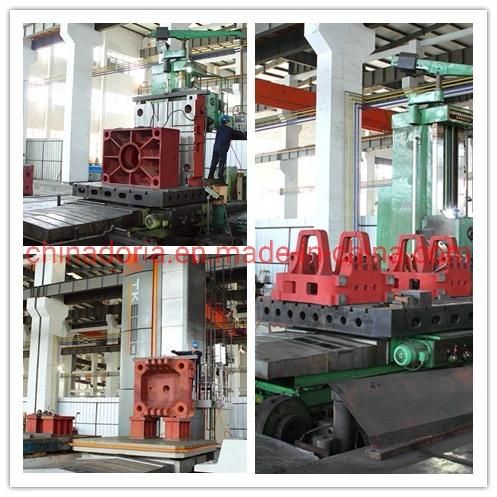

4. Workshop of machine:
5. Warehouse of machine:

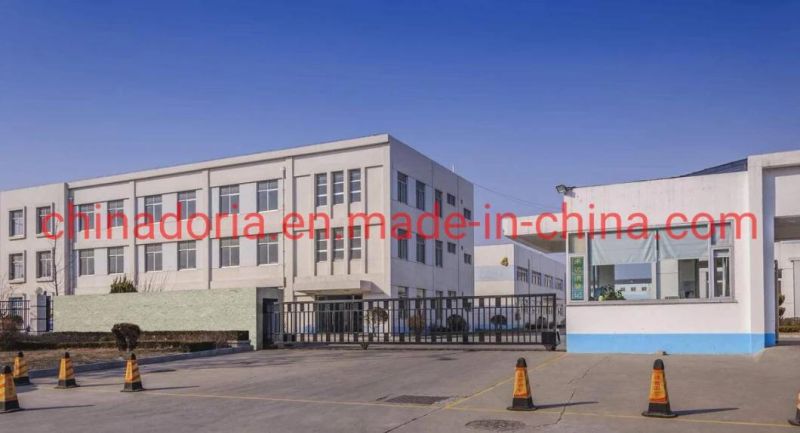

5. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.

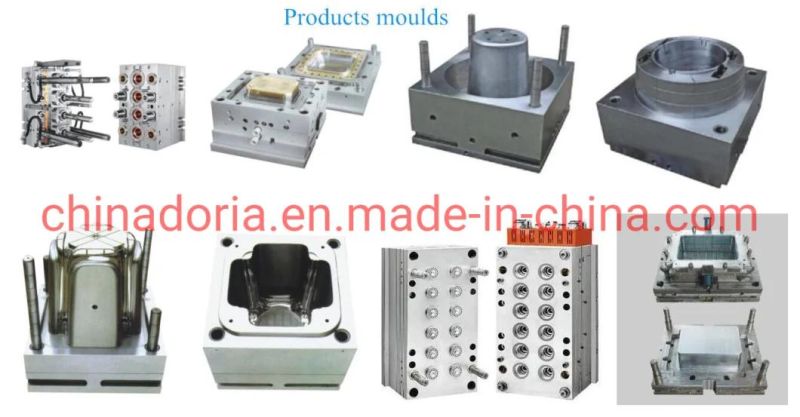

The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
Welcome everyone to visit us, we hope we will have good chance to cooperate!
6. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
