• Model NO.：SJ-45, SJ-55, SJ-60
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Transport Package：Stretch Film or Wooden Case
• Specification：CE, ISO9001 certificate
• Trademark：HONG QI
• Origin：Ruian, Zhejiang, China
• HS Code：84773010
• Production Capacity：30 Set,Month

Basic Info.

Model NO. SJ-45, SJ-55, SJ-60 Machine Weight 4T Certification CE, ISO9001:2008 Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 certificate Trademark HONG QI Origin Ruian, Zhejiang, China HS Code 84773010 Production Capacity 30 Set/Month

Product Description

Characteristics:
The unit integrated film-blowing & printing that was designed by the company can save labor force, workshop rooms, and improve the quality of products and economic results.

USE:

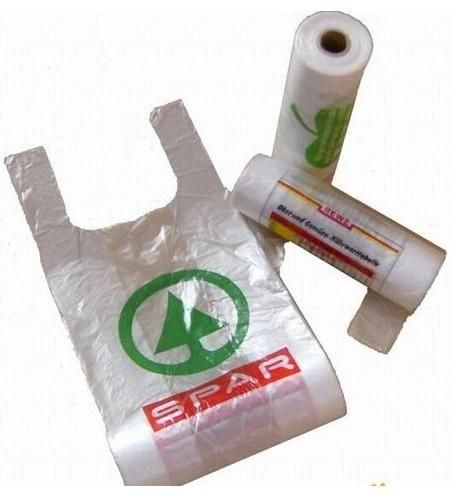

It is applied to blowing plastic films like low density polygene(LDPE), high density polygene(HDPE) and linear low density polygene(LLDPE), etc. It is widely applied to packing foodstuff, clothing, rubbish bags, vest ones, etc. In the civil and industries sectors.

Main Technical Variables:
Model: SJ-45-YT2600; SJ-55-YT2800; SJ-60-YT21000
Applied Materials: LDPE, HDPE, LLDPE; LDPE, HDPE, LLDPE; LDPE, HDPE, LLDPE
Screw DIA.: 45mm; 55mm; 60mm
Screw L/D Ratio: L/D28:1; L/D28:1; L/D28:1
Blow Film Motor Power: 11Kw; 15Kw; 18. 5Kw
Max. Extrusion output: 36kg/h; 50kg/h; 70kg/h
Film Head DIA.: Φ60, φ80; Φ80, φ130; Φ80, φ160
Blow Film Width: 600mm; 800mm; 1000mm
Blow Film Thickness: 0.008-0.10mm; 0.008-0.10mm; 0.008-0.10mm
Length Range of Printing: 191-1200mm; 191-1200mm; 191-1200mm
Printing Width: 560mm; 760mm; 960mm
Total Power: 28Kw; 32Kw; 40Kw
Weight of Machinery: 3800Kg; 4200Kg; 5000Kg
Dimensions of Machinery: 6000x2400x4000mm; 6200x2600x4300mm; 6400x2800x4800mm


After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 80USD per day per person.
4. How long of your machine's warranty period?
All our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We also can offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installing machines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
