• Model NO.：SJSZ80,156 SJSZ92,188
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Dimension (L*W*H)：23m*3m*3m
• Transport Package：PE Wrapping Film, Fumigating Wooden Cases.
• Specification：CE, SGS
• Trademark：BOYU
• Origin：Wuxi, Jiangsu, China
• HS Code：8477209000
• Production Capacity：350kg,H

Basic Info.

Model NO. SJSZ80/156 SJSZ92/188 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Dimension (L*W*H) 23m*3m*3m Transport Package PE Wrapping Film, Fumigating Wooden Cases. Specification CE, SGS Trademark BOYU Origin Wuxi, Jiangsu, China HS Code 8477209000 Production Capacity 350kg/H

Product Description

High Quality Plastic Extrusion Machine/SPC Flooring Conical Twin Screw Production Line

SPC/WPC/PVC Flooring Base Sheet is a new and high-tech environmental protection material. It is the product of the mixing pvc resin and processing agent going through the extruding mould. PVC floor substrate board has the properties and features of non-toxic, no smell, anti-corrision, anti- weathering, waterproof etc. It is the perfect substitute for wood.
SPC/WPC/PVC Flooring Base Sheet can be worked with the tools for wood material. It's easy for sawing, drilling, nailing, bonding and planning. Meanwhile, It is a kind of durable indoor and outdoor waterproof and anti-corrosion building material with excellent performance.


I. Basic Information:

Brand Name: BOYU
Screw Design: Conical double screw
Model Number: SJSZ 80/156
Voltage: 380-440V
Main Motor Power: 75kw
Capacity: 350kg/h ~ 400kg/h
Dimension (L*W*H): 23m*3m*3m
Weight: 18t
Packaging Details: PE wrapping film, fumigating wooden cases.
Delivery Details: 30 working days.

2. Product Configuration:

1) Main motor: SIEMENS BEIDE
2) Contactor: SIEMENS
3) Auxiliary relay: SCHNEIDER or DELIXI
4) Temperature control system: DELTA PLC Touch Screen Control System
5) Inverter: ABB
6) All Extruder by the DELTA PLC Controlled.

3. Production Introduction:

Item	Foam PVC board
Origin	Wuxi, China
Introduction	PVC Foam Board is the new man-made material, the main component is PVC, it has the fine chemical stability, anti-corrosive and high intensity, it can be the substitute of wood, it is widely used in the building, advertisement and decoration.
Thickness	1-30mm
Length	As your request
Density	0.35-0.8g/cm3
Size	1220*2440mm,1560*3050,2050*3050mm
Color	White, black, red, blue, yellow, green, gray, or as your request.
Applications	1.Building outdoor wall board, indoor decoration board, decorative Wall Panel, furniture Board, cupboard, partition board in office and house. 2.Advertisement Board, screen printing, flat solvent printing, engraving, billboard and exhibition display. 3.Chemical anti-corrosion project, special cold project, environmental protection. 4. Indoor flooring base board.
Features	1. Waterproofing. 2. Fire retardant and self-extinguishing. 3. Heat preservation. 4. Sound-insulated. 5. Insulation. 6. Non-corrosion. 7. Non-toxic. 8. Tough, rigid with the high impact strength. 9. Stable color retention.

4.Production process:
The screw feeder takes the material from the silo → The Extruder Feeding Hopper → The extruder → Material Plasticizing → T-die → Calender→Edges Trimming → Roller Cooling Bracket →Air Cooling Cabinet(Optional) → Traction Machine→ Cutting Machine →Automatic Stacking Machine

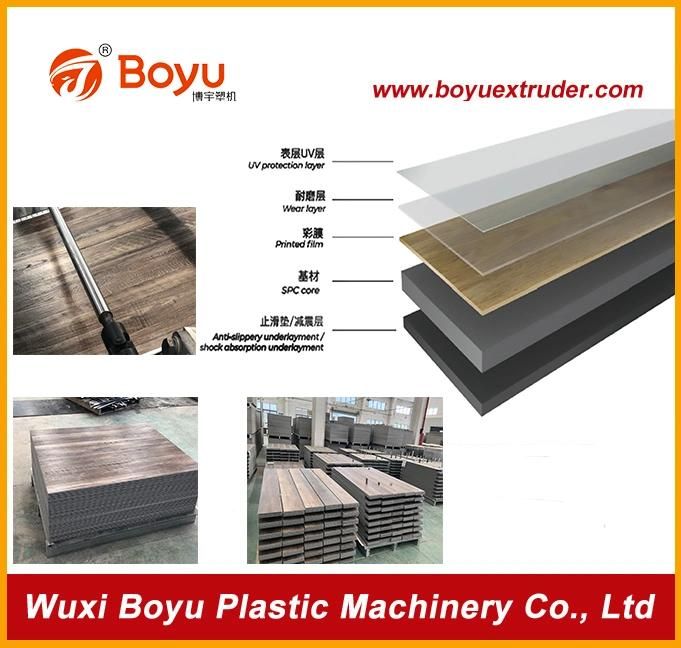

5.Finished Products:

6. Boyu Company Development:


7. Advantages of BOYU SPC Production Machine Line

1. More than 20 years experience on palstic machinery designing and manufacturing:
Leading industry level of mechanical and electric design
Various of machine lines for optional
Provide flooring production proposal of expert level
Proposal customized as per different market demand
High Stability, performance, safet
High efficiency smart equipment, less operator needed

2. EIR(High Quality&High Depth Embossing Performance)
The word leading level EIR technology
The unique one key embossing function is effectively short operation time
Deep embossing is helpful to achieve products differentiation
Constant tension system for film unwinding
Automatic deviation rectification system for film unwinding

3. Simple and Smart Electric Control System
PLC smart control system
Profinet connection method, to ensure fast data communication and achieve remote monitoring
Adopted famous internationla brand of electrical elements , much more decrease the faluts ratio.
Synchronous line speed control system
Anti-screw breakage, anti-bloacking die, automatic stacking control system
Automatic oil/water temperature control system

8. Our Service:

1. Pre-sale service:
To provide market research information and consultation;
To provide all kinds of convenience and market service;
To help customers make project planning and systematic analysis;
To maximize customer's satisfaction.

2. After-sale service:
To install products and test products for customers;
To provide the formulas and technologies of relevant products and the information of chemical materials manufacture;
To provide technical direction according to customers' requirements;
To provide technical training for clients' employees;
To be responsible for maintenance service, door-to-door service under necessary circumstance.

3. Technology Support
Provide different products for formula and material supplier.
Production technology&Technical guidance.
Technicians dispatching for Guidance and technology exchange.

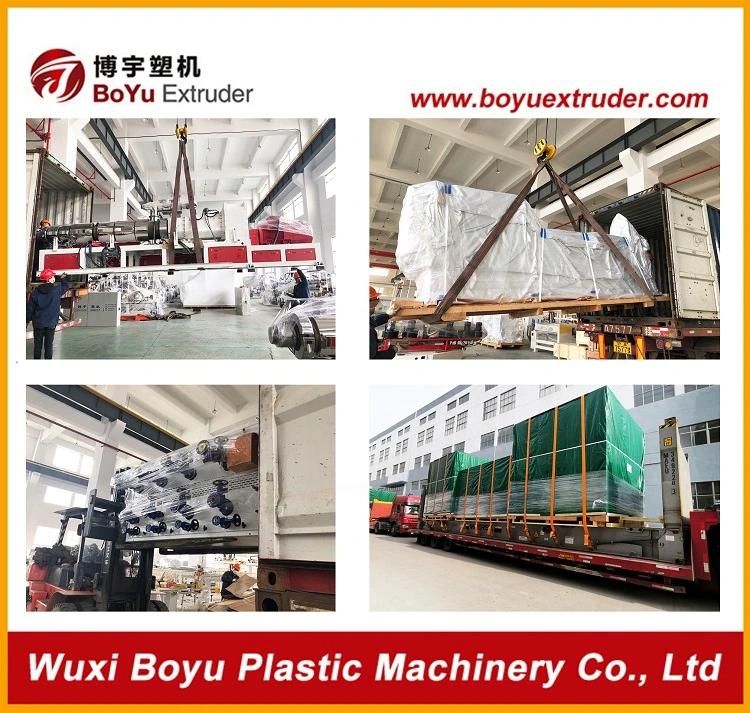

9. Shipping:

10. Certificate:
