• Model NO.：F3B-RD-1000
• Automation：Automatic
• Computerized：Computerized
• Machine Weight：8T
• Certification：CE, ISO9001:2008
• Output：100kg,H
• Transport Package：Stretch Film or Wooden Case
• Specification：CE, ISO
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：847730000
• Production Capacity：30 Set,Month

Basic Info.

Model NO. F3B-RD-1000 Automation Automatic Computerized Computerized Machine Weight 8T Certification CE, ISO9001:2008 Output 100kg/H Transport Package Stretch Film or Wooden Case Specification CE, ISO Trademark HOIN Origin Ruian, Zhejiang, China HS Code 847730000 Production Capacity 30 Set/Month

Product Description

Product Specification
A: Description
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home. It is optimum designed on the triunes of preference of analogous lines in foreign and home. The lines can be blown continuous 1200/1300/1500mm in fold width 0.08mm in the thickness packaging films, from LDPE, HDPE, LLDPE, MLLPE, horizontal extrusion up blown. The film has good insulation, for instance holding temperature, antique-mid, anti-breeze, anti-rain, anti-roust, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.
B: Technology Parameter

Model	F3B-RD-1000	F3B-RD-1200	F3B-RD-1500
Screw Diameter	φ 4 5mm	φ 50mm	φ 55mm
Screw Ratio	L/D30:1	L/D30:1	L/D30:1
Screw Speed	15-150r/min	15-150r/min	15-150r/min
Main Motor Power	11Kw ×3	15Kw ×3	18.5Kw ×3
Max. Extrusion Output	150kg /h	120kg /h	150kg /h
Range of Die	φ 200 φ 250mm	φ 200 φ 250mm	φ 250 φ 300mm
Single-sided Thickness of Film	0.01 -0.10mm	0.01 -0.10mm	0.01 -0.10mm
Max. Folding Width of Film	1000mm	1200mm	1500mm
Electric Total Capacity	176Kw	88Kw	102Kw
Weight of Machine	4200kg	5300kg	6200kg
Overall Dimension(L×W×H)	6600×4100× 5000mm	6800×4300× 6000mm	7000×4800× 6800mm

C: Details Information
1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: 2 Zones
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating:3Zones*3Sets
Heating Ring Material: Cast Aluminum
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box
2. Take Up Section
'A' Shape Film Forming Plate: Wooden Bar Type
Film Bubble Setting Ring: Wooden Bar Type
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder
3. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller

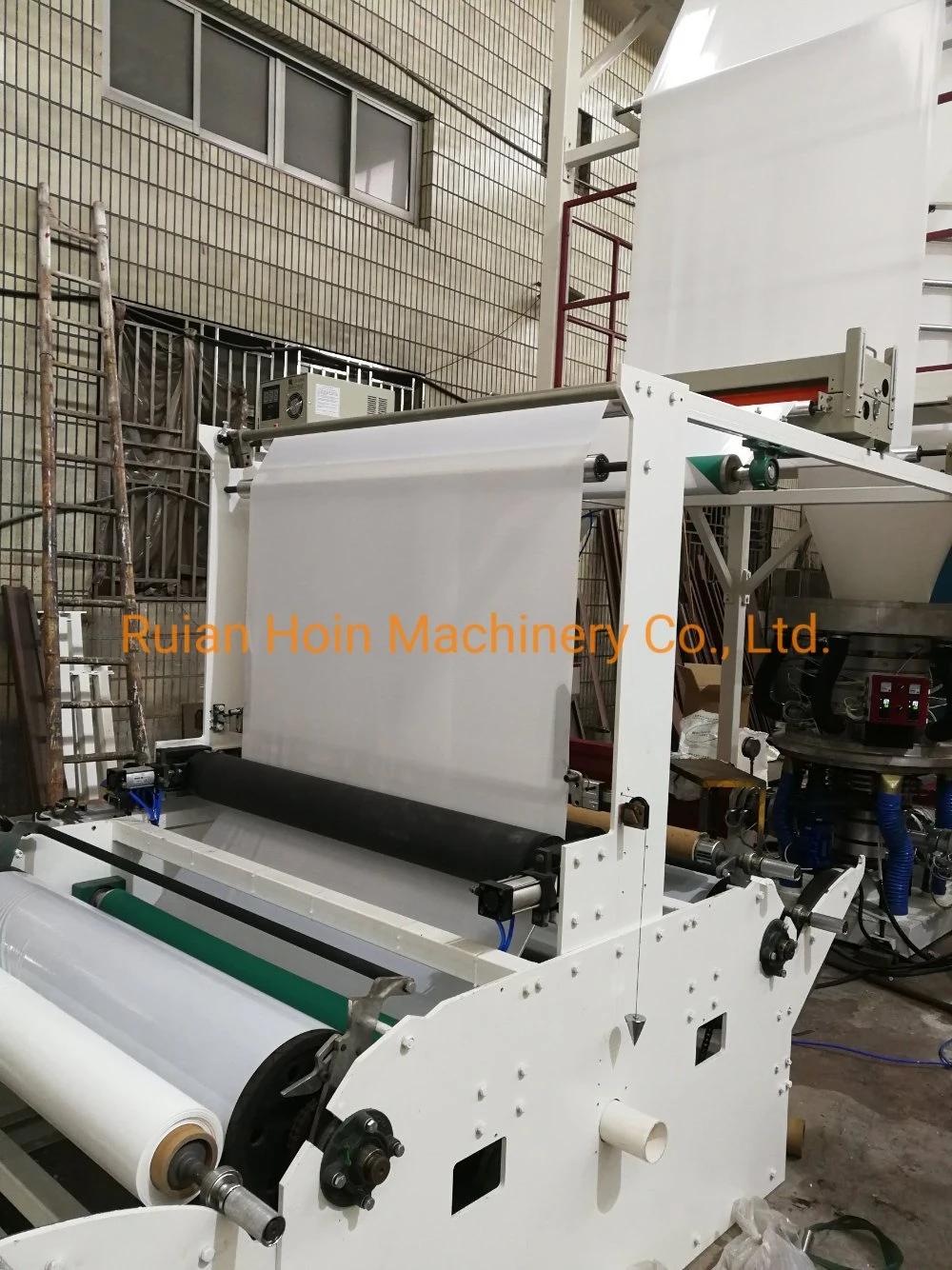

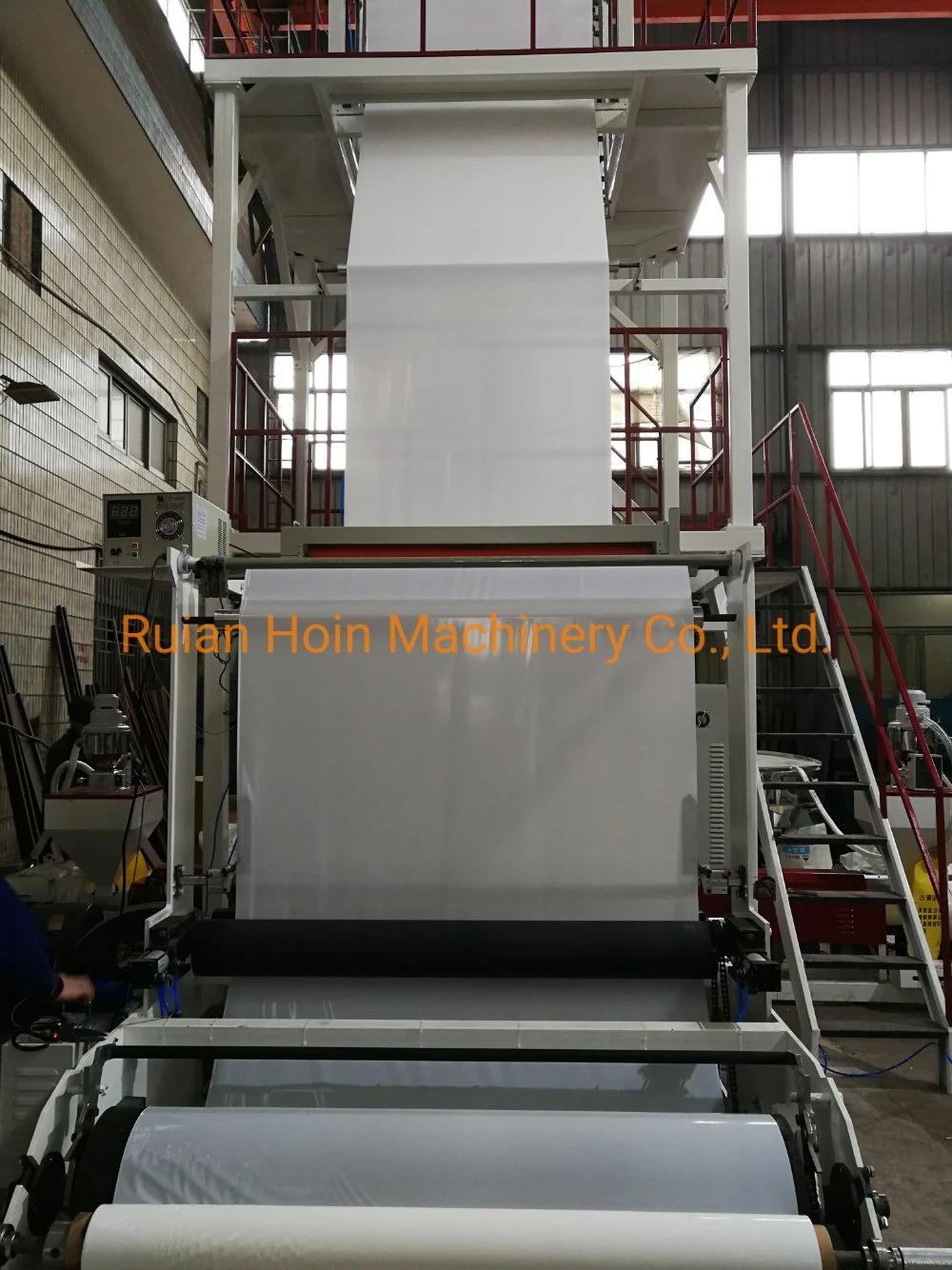

D.Machine Pictures for Reference:

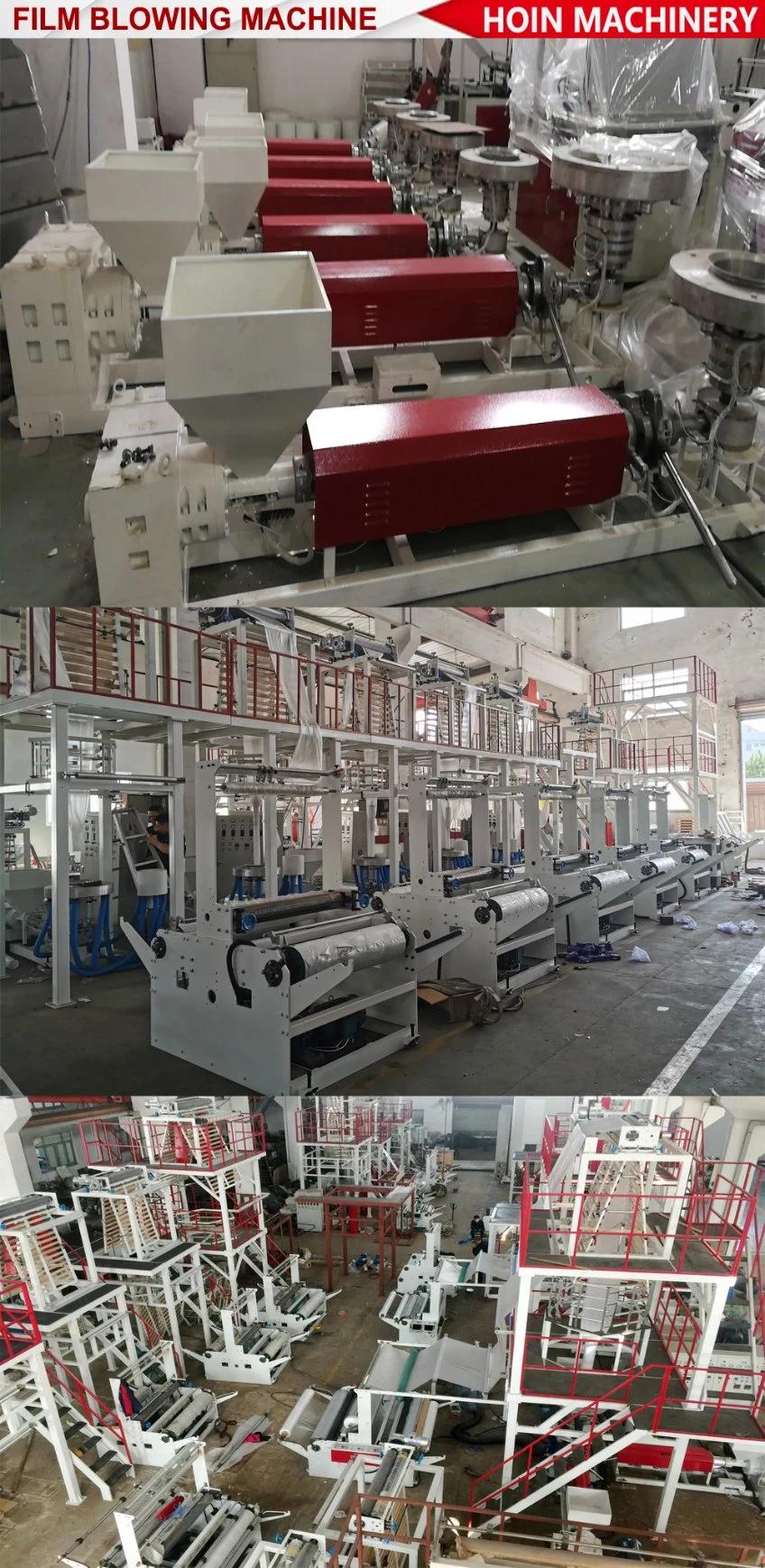

E. Workshop of HOIN

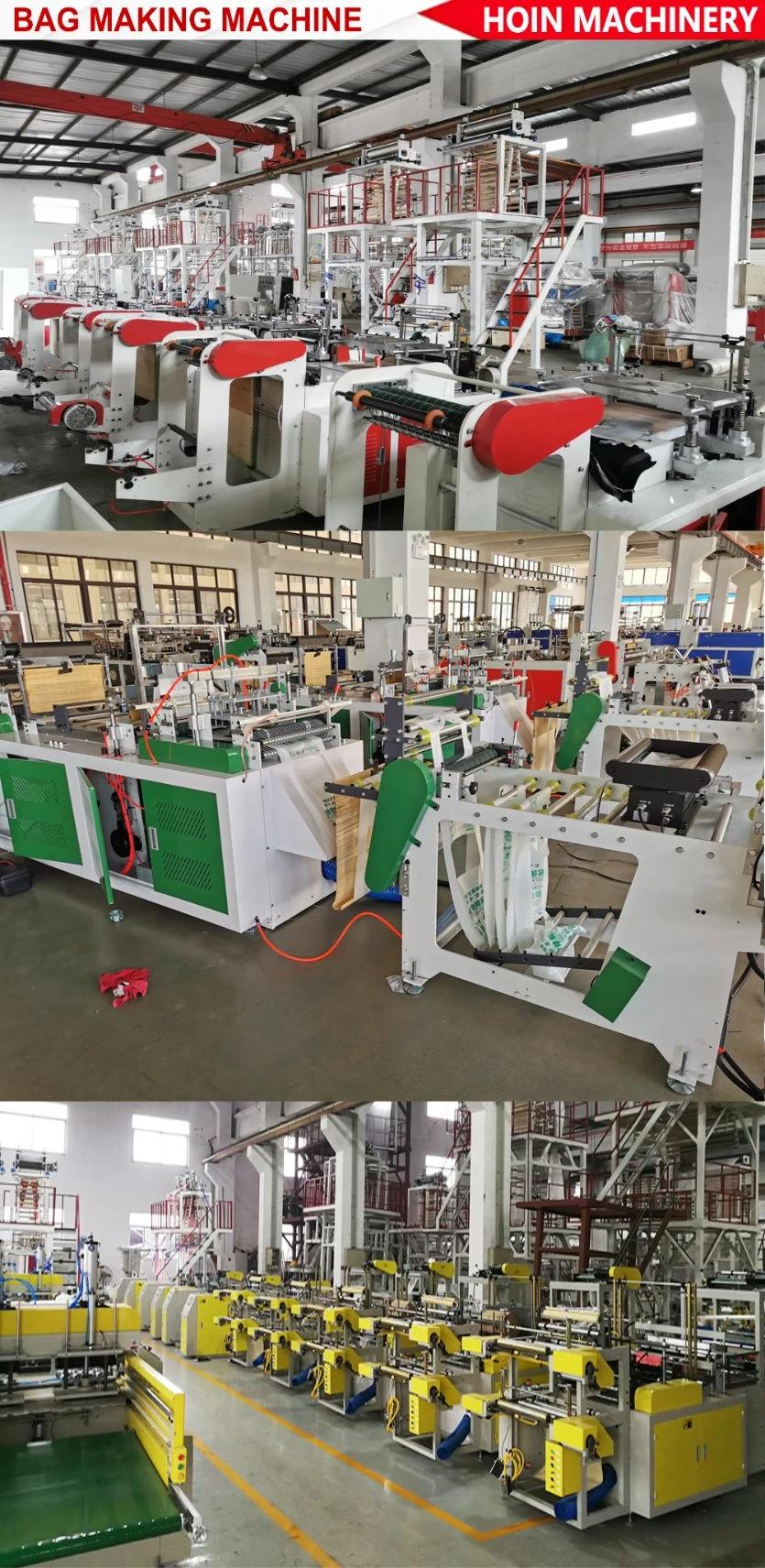

F.More Products Optional
G.After Service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will still offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
