Durable High Torque Twin Screw Shaft
Joiner Machinery Co., Ltd.- After-sales Service：24 Hours
- Warranty：6 Months
- Standard：DIN, GB
- Technics：Cold Rolling,Milling
- Feature：High Quality
- Material：Wr Series, 40CrNiMoA
Base Info
- Transport Package：Wooden Box
- Specification：As required
- Trademark：As required,JOINER
- Origin：China
- HS Code：8477900000
- Production Capacity：1000 Pieces,Year
Description

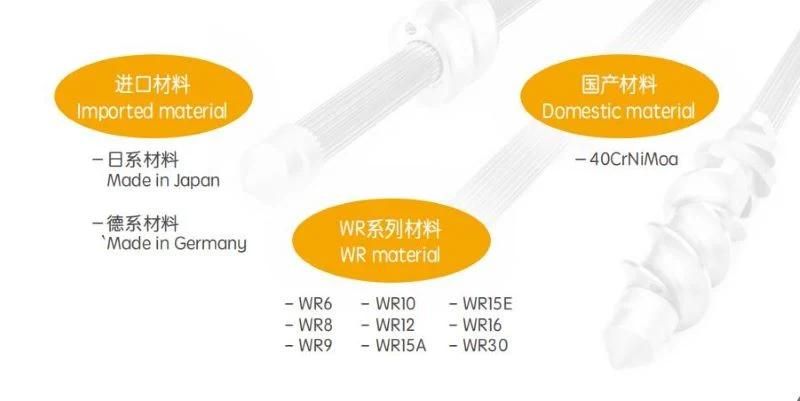

Imported Material
WR Material
Domestic Material
1.Made in Germany
2.Made in Janpan
WR6 WR12 WR8 WR9 WR15A WR15E WR10 WR30
40CrNiMo is a kind of alloy constructional steel.
a. WR9 with special treatment and involute form can be used under the circumstances of high torque, high torsion andhigh load. b. Nitrogen bearing Martensite stainless steel ,WR15E and WR30 can also be applied to make good toughnessand machine performance available. The performance parameters similar to the imported shaft but with more costefficient, the machining process is under accurate controlling to make sure the accuracy of groove depth anddistance, the smoothness of the surface, toughness and durability as well.

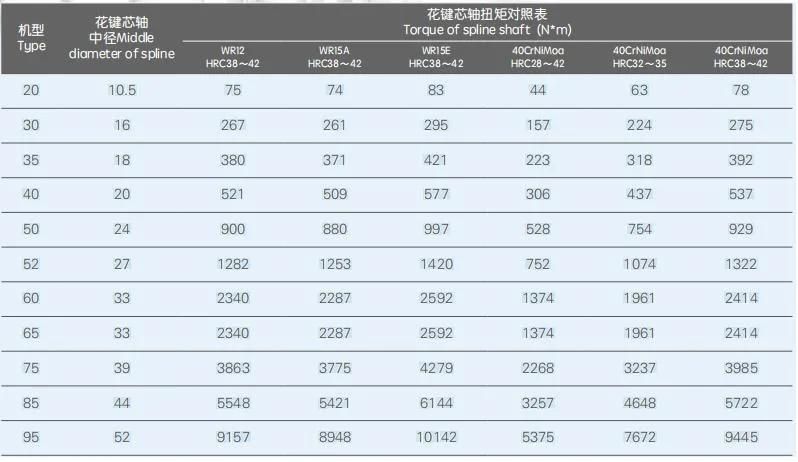

4. Torque of spline shaft

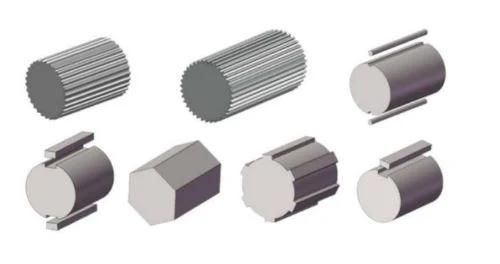

5. Types of shaft to choose:
Single keyway
Square keyslot
High torque key button
Dual keyslot
Involute inner spline
Round keyslot
Rectangle spline
Client requirements available

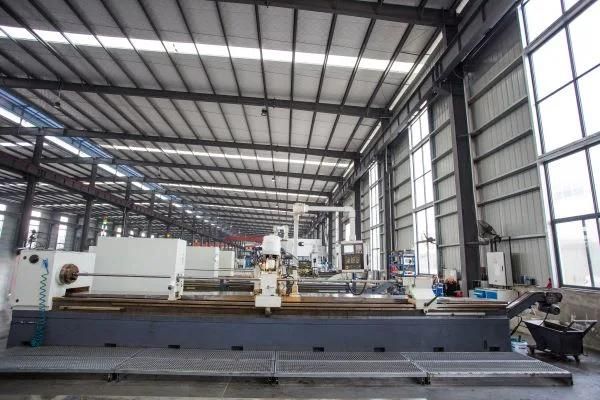

6. Our factory is state-of-the art and spans over 20,000 square meters. The factory houses more than 130 sets of different domestic and foreign high precision production equipment, with the degree of numerical control up to 95%.
We have several slender axle lathes to ensure high quality products.

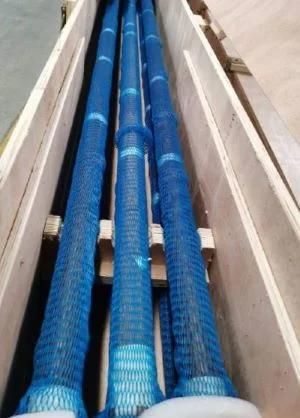

7. Packaging:
According to your order quantities and products sizes to choose the number of wooden boxes.
a. Rust-proof oil processing,
b. Oiled paper packages,
c. Bubble wrap package,
d. Special foam packaging,
e. Packing,
f. Sealing.
8. Why choose us?
(1) Total solution of highly wear-resistance and corrosion-resistance problems;
(2) Expert of engineering design and consulting,
(3) Advanced manufacturing capabilities and technology,
(4) Lean production management
(5) Top quality products with high cost performance
