• Model NO.：SZJZ110
• Assembly Structure：Integral Type Extruder
• Screw：Twin-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Dimension (L*W*H)：23m*3m*3m
• Transport Package：PE Wrapping Film, Fumigating Wooden Cases.
• Specification：CE, SGS
• Trademark：BOYU
• Origin：Wuxi, Jiangsu, China
• HS Code：8477209000
• Production Capacity：350kg,H

Basic Info.

Model NO. SZJZ110 Assembly Structure Integral Type Extruder Screw Twin-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Dimension (L*W*H) 23m*3m*3m Transport Package PE Wrapping Film, Fumigating Wooden Cases. Specification CE, SGS Trademark BOYU Origin Wuxi, Jiangsu, China HS Code 8477209000 Production Capacity 350kg/H

Product Description

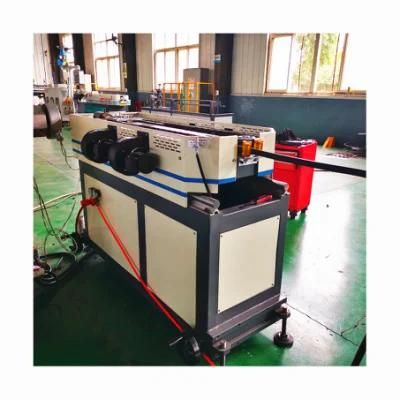

High Quality Plastic Extrusion Machine/SPC Flooring Conical Twin Screw Production Line

SPC flooring stands for Stone Plastic Composite. It is the newest generation of high-quality resilient flooring. SPC flooring is an upgrade of Luxury Vinyl Tiles (LVT). No matter laying them on concrete, ceramic or existing flooring. It has a unique interlocking-edge design (advanced "click" system) for easy installation.

The main component is lime stone (calcium carbonate)+ PVC Powder + Stabilizer. Different from regular vinyl floor, there is no plasticizer inside, so it is more environmentally friendly. SPC flooring mainly structured with the UV Coating , wear resistant layer, decorative film and core board. Meanwhile IXPE option available for high end usage.



I. Basic Information:

No.	Items	Data
01	Operation conditions	380V/3 phases/50Hz, DC24V.
02	Raw Material	PVC powder, calcium carbonate, stabilizer, lubricant
04	Main material proportion	PVC: CACO3= 1:3
05	Product specifications	Width is 1050mm;Thickness:2~9mm
06	Extrusion line mode	SJSZ110/220 conical twin screw extrusion line
07	Quality standard	Twin screw standard JB6492-2001 Electricity  standard: GB5226.1-2008/IEC  60204-1:2005

2. Product Configuration:

1). Main Motor: SIEMENS BEIDE/WEG IE32). Auxiliary Relay: SCHNEIDER3). Touch Screen: MCGS4). Inverter: ABB/INOVANCE5). Temperature Controller: OMRON

3. Production Introduction:

Waterproof and Fire-retardant
The SPC Flooring is 100% waterproof and ideal for kitchens, bathrooms and basements. The fire-retardant properties causes flames to go out automatically after 5 seconds and will not produce toxic or harmful gases.

Health, Safety and Environment
Say goodbye to formaldehyde, mildew and bacteria. This product has passed the test for more than 179 different types of hazardous materials and other chemicals. Different from regular vinyl floor, there is no plasticiser inside, so it is more environmentally friendly.

Heat/Cold Resistance
SPC flooring will not curl in most temperatures or environments. SPC flooring can withstand temperature differences ranging between -75°C to 80°C. The dimensional stability is brilliant.

Quality and Strength
It is stronger than WPC floors and laminate and the price is right as well! Instead of using wood stone the SPC is used with a silica core resulting in a flooring material that is made from waterproof ingredients to begin with. SPC has 20 times the impact resistance in comparison to base laminates and 10 times the impact resistance of WPC (wood composite core) flooring. SPC flooring is stronger, more durable and more stable than regular LVT flooring. It also has an improved click-and-lock joining system. This product has superior indentation resistance (scratch and wear resistance) as well as spill and stain resistance. It has anti-abrasion properties, anti-mold or mildew properties and is slip-resistant which enables you to install it anywhere, even in combination with underfloor heating systems. It comes with five layers of protection against wear as well as IXPE, EVA and CORK underlays. These underlays are are glue free, provides acoustic benefits and a comfortable underfoot. SPC flooring is safe and easy to use, silent when walked on and warmer than any other type of vinyl product on the market.

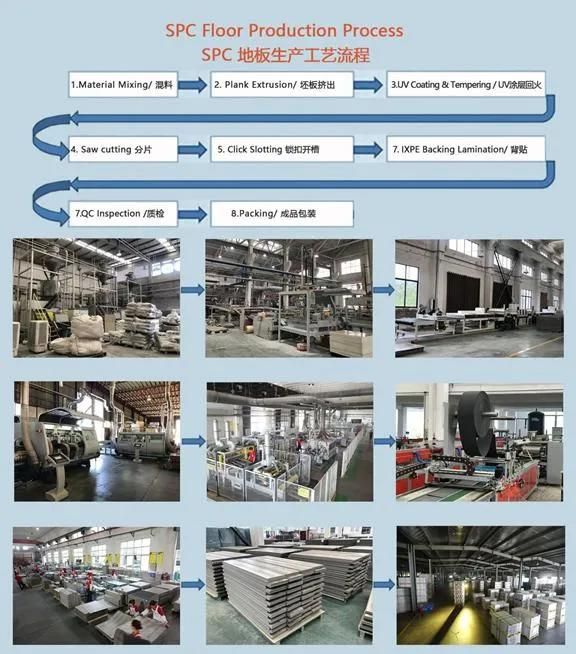

4.Production process:

The screw feeder takes the material from the silo → The Extruder Feeding Hopper → The extruder → Material Plasticizing → T-die → Calender→Edges Trimming → Roller Cooling Bracket →Air Cooling Cabinet(Optional) → Traction Machine→ Cutting Machine →Automatic Stacking Machine




5.Products Capacity:


No.	Item	SJSZ92/188	SJSZ110/220	SJSZ180/360
1	Output for 24hrs	12~18T	25~32T	80~100T
2	Output  sqm for 24hr	1500sqm	3000sqm	9000sqm
3	Hour output	500~700 Kg/H	1000~1350 Kg/H	3000~4000 Kg/H
4	Linear speed/min	0.80~1.3m/min	1.8~2.4m/min	5~9m/min

6. Boyu Company Development:


7. Why Us?
1). More than 20 years experience on plastic machinery designing and manufacturing:
Leading industry level of mechanical and electric design
Various of machine lines for optional
Provide flooring production proposal of expert level
Proposal customized as per different market demand
High Stability, performance, safety
High efficiency smart equipment, less operator needed 2). EIR(High Quality&High Depth Embossing Performance)
The word leading level EIR technology
The unique one key embossing function is effectively short operation time
Deep embossing is helpful to achieve products differentiation
Constant tension system for film unwinding
Automatic deviation rectification system for film unwinding

3). Simple and Smart Electric Control System
PLC smart control system
Profinet connection method, to ensure fast data communication and achieve remote monitoring
Adopted famous international brand of electrical elements , much more decrease the faults ratio.
Synchronous line speed control system
Anti-screw breakage, anti-blocking die, automatic stacking control system
Automatic oil/water temperature control system
 8. Our Service:
1). Pre-sale service:
To provide market research information and consultation;
To provide all kinds of convenience and market service;
To help customers make project planning and systematic analysis;
To maximize customer's satisfaction.

2). After-sale service:
To install products and test products for customers;
To provide the formulas and technologies of relevant products and the information of chemical materials manufacture;
To provide technical direction according to customers' requirements;
To provide technical training for clients' employees;
To be responsible for maintenance service, door-to-door service under necessary circumstance.

3). Technology Support
Provide different products for formula and material supplier.
Production technology&Technical guidance.
Technicians dispatching for Guidance and technology exchange.


9. Shipping:

10. Certificate:
