• Condition：New
• High Speed：30m,Min
• Transport Package：Wood
• Specification：ce
• Trademark：Middle tech industry
• Origin：Zhangjiagang City
• HS Code：84772090
• Production Capacity：30 Unit,Year

Basic Info.

Condition New High Speed 30m/Min Transport Package Wood Specification ce Trademark Middle tech industry Origin Zhangjiagang City HS Code 84772090 Production Capacity 30 Unit/Year

Product Description

Production introduce:

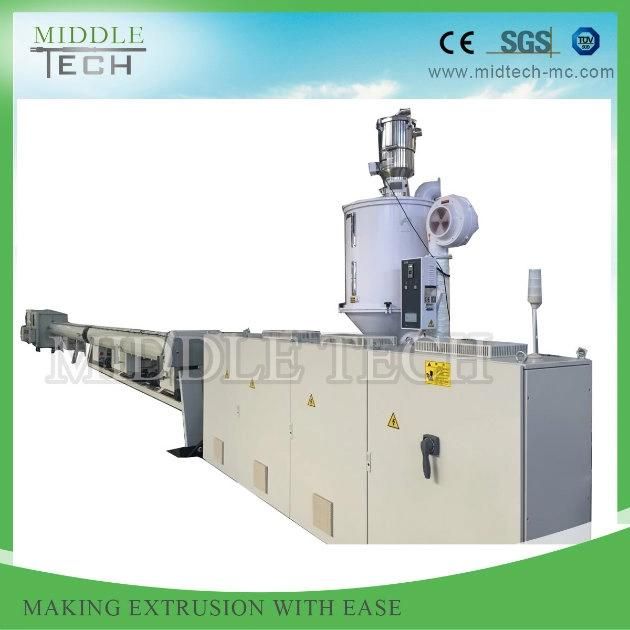

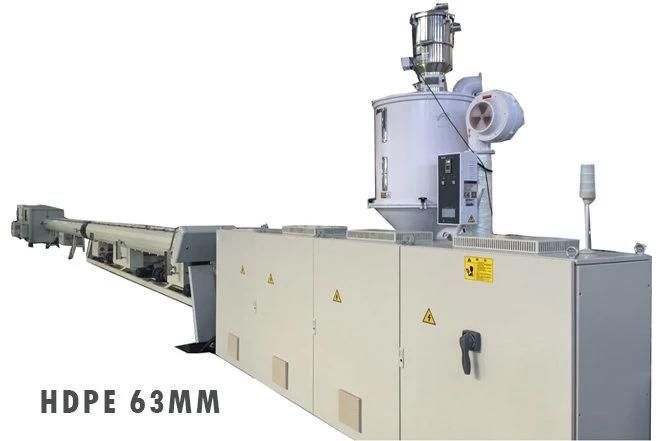

LDPE plastic Pipe machine extrusion and production line

PART 1 INTRODUCTION:
HDPE/PPR/LDPE series plastic pipe extrusion line is mainly used in the area of agricultural water supply, architectural water supply, gas supply and transportation, telecommunication cables etc. This line has the advantages of easy operation, high automatic degree, stable and reliable production, well received by customers.

 PART 2  FEATURES OF THIS LINE

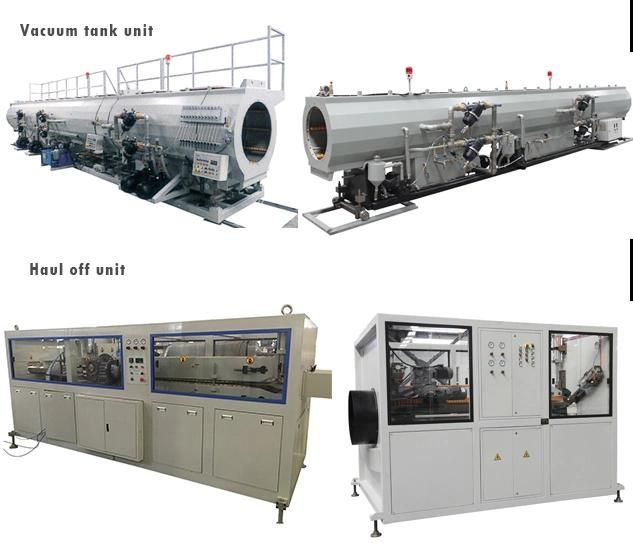

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker

1)  Single screw extruder
adopts long L/D, high efficiency screw, high extrusion capacity, uniformed plasticization. Extruder and haul off machine motors adopt imported AC/DC inverter as speed regulators.

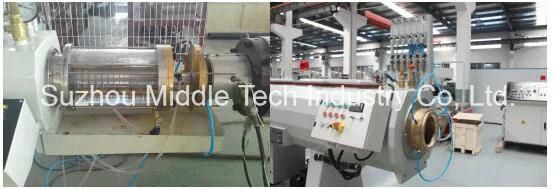

2)  Extrusion die head
is spiral type, good calibrating makes good quality pipe production.
Inner heating system, high efficient, easy extrusion. Bronze calibrators can make the pipes fast calibrated and cooled.

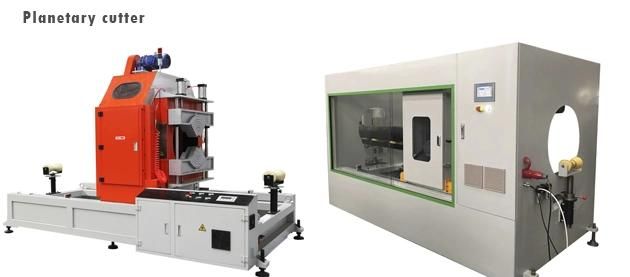

5)  Non-scraped cutting, saw cutting or planetary cutting
can be applied, accurate cutting, reliable property, high efficiency. Meter-counting device is also installed.

PART 4 ADVANTAGES OF THE PIPES PRODUCED BY THIS LINE
Pipe produced by this line has excellent hardness and flexibility, heat resistance, aging resistance, high mechanical strength, environmental stress cracking resistance and creep resistance, hot-melt connectivity, and other advantages, it is the first choice of city gas and water transmission pipe line.




Model/data	Pipe diameter(mm)	Co-extruder model	Speed (m/min)	Max capacity (kg/h)	Installed power(kw)	Dimension(m)	weight(t)
LSG65/30	16-63	LSJ25/25	1.2-15	100	75	32*3.0*2.2	9.5
LSG65/33	20-110	LSJ25/25	0.3-12	150-180	98	36*3.1*2.2	10.5
LSG75/33	63-160	LSJ25/25	0.5-5	220	120	40*3.2*2.4	12.5
LSG90/33	160-400	LSJ30/25	0.5-2	450	320	52*3.3*2.6	27.5
LSG120/33	355-630	LSJ30/25	0.1-1	800	510	60*3.5*2.8	41
LSG150/33	400--800	LSJ45/25	0.1-0.5	1000	630	68*3.6*3.0	62.1
LSG150/33	800-1200	LSJ45/25	0.07-0.8	1200	790	72*3.8*3.0	81.3
LSG150/33	1000-1600	LSJ45/25	0.03-0.4	1400	880	75*4.0*3.2	92.5


 If you do need any support, please don't hesitate to contact me on 0086-13962227556.
