Plastic LDPE PP Zipper Extruder for Plastic Zipper
Ruian Queensense Machine Co., Ltd.- Type：Zipper Extruder
- Plastic Processed：PP
- Product Type：Profile Extrusion Molding Machine
- Feeding Mode：Multiple Feed
- Assembly Structure：Separate Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：ZIP-45
- Engagement System：Full Intermeshing
- Screw Channel Structure：Non Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Size：45 Screw
- Material：PP,LDPE
- Speed：35-45m,Min
- S Screw：28:1
- Transport Package：Film
- Specification：CE
- Trademark：queensense
- Origin：Made in China
- Production Capacity：200000
Description

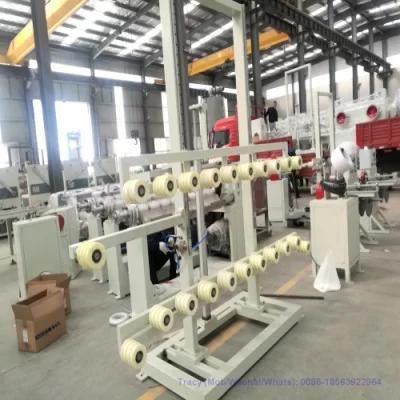

main partresin applicable LDPE / PP zipper line Single line Extrusion of film 10-50 cycle/min Extrusion of film 3-50mm tickness of film 0.1-0.3mm film annulus diameter 500mm diameter of screw 45mm draw ratio of screw 28:1 Gear box (Reducer) 133 ,made in xiaoshan,china transducer motor 5.5kw (made in shanghai ) Assist motor 0.4kw (made in shanghai ) power of assistand machine 0.75kw heater 6.8kw water chilling box made of stainless steel cooling 5HP (with cooling) Drying equipment 1 Total power 15kw overall diameter 6800X1200X1800 power voltage 50-60Hz/380v output 50m/min Frequency inverter ORUI brand (huifeng) Digital Temperature table made in shanghai (1set) Low electric parts CHNT Winder With winder die model 2pcs supply
