• Model NO.：RC-60
• Certification：CE
• Name：Plastic Cutting Machine
• Used for：Plastic Reycle Industrial
• Transport Package：Wrap Film
• Specification：60Ton
• Trademark：QIANGYE
• Origin：Guangdong, China (Mainland)
• HS Code：8477800000
• Production Capacity：100sets,Month

Basic Info.

Model NO. RC-60 Certification CE Name Plastic Cutting Machine Used for Plastic Reycle Industrial Transport Package Wrap Film Specification 60Ton Trademark QIANGYE Origin Guangdong, China (Mainland) HS Code 8477800000 Production Capacity 100sets/Month

Product Description



 Application :

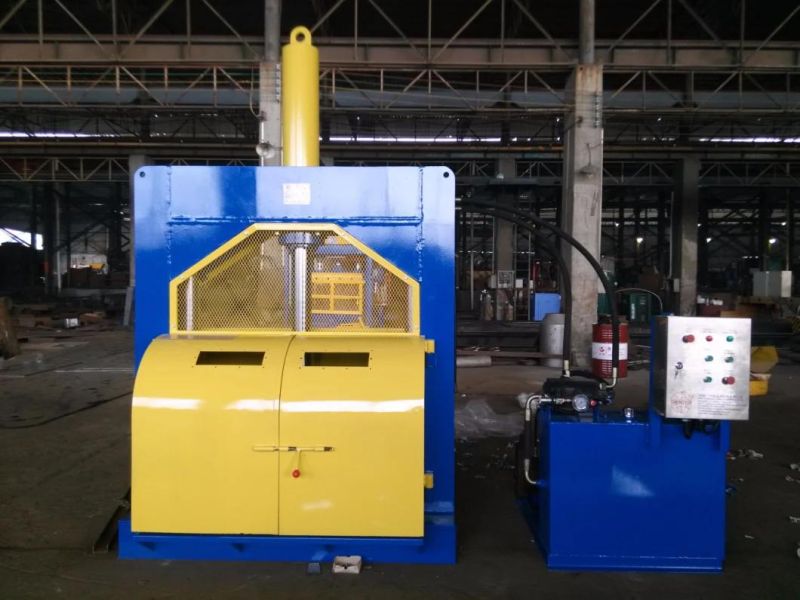

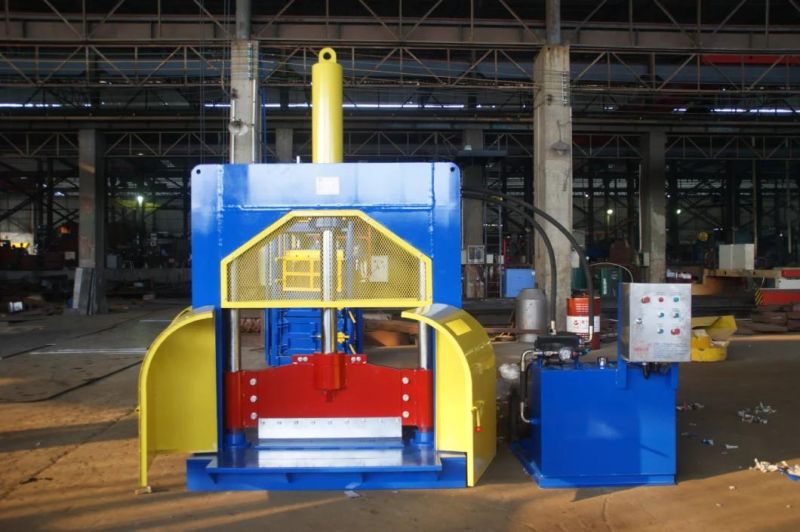

This rubber cutting machine/cutter/bale splitter is mainly used to cut the natural rubber, synthetic rubber, and other plastic materials into gommures / pieces, which is convenient to mix; especially it is suitable to be installed near the rubber mixer to cut small piece of rubber.

Feature :
1.This Rubber Cutting Machine mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system and etc. Simple structure,convenient to operate.
2.The lead is casted on the base right under the rubber knife for protecting the edge of the rubber knife.
3. Two limit switches are installed on the frame to control the reversal valve to control the movement direction of the rubber knife, at the same time it protects the cover of the cylinder

Model	Blade width (mm)	Stroke (mm)	Pressure (ton)	Oil pump discharge (L/Min)	Oil capacity (KG)	Motor power (KW)	Total weight (KG)	Dimension (mm)
RC-40T	900mm	900mm	40 ton	46 L/min	70kg	7.5kw	1400kg	1200X900X2800mm
RC-60T	1000mm	900mm	60 ton	63 L/min	110kg	11kw	2500kg	1300X800X2900mm
RC-100T	1200mm	1000mm	100 ton	63 L/min	130kg	15kw	3100kg	1400X1000X3100mm
RC-250T	1500mm	1000mm	250 ton	250 L/min	200kg	37kw	4000kg	1800X1200X3300mm
RC-300T	1500mm	1000mm	300 ton	340 L/min	250kg	37+11kw	4500kg	1800X1200X3400mm
