PVC Embossed Roofing Sheet Plastic Profile Extrusion Machine

Jiangsu Acemien Machinery Co., Ltd.
  • Product Type:PVC Board
  • Board Layers:Multilayer
  • Screw No.:Double-screw
  • Automation:Automatic
  • Computerized:Computerized
  • Certification:CE, ISO9001:2008, UL, QS, GMP

Base Info

  • Model NO.:Acemien
  • Customized:Customized
  • Condition:New
  • Transport Package:Plastic Film Package and Loaded Into The Container
  • Specification:28m*5m*5m
  • Trademark:Acemien
  • Origin:Jiangsu Province
  • HS Code:84772090
  • Production Capacity:1000 Sets,Year

Description

Basic Info.

Model NO. Acemien Customized Customized Condition New Transport Package Plastic Film Package and Loaded Into The Container Specification 28m*5m*5m Trademark Acemien Origin Jiangsu Province HS Code 84772090 Production Capacity 1000 Sets/Year

Product Description

  PVC embossed roofing sheet plastic profile extrusion machine
The PVC embossed roofing sheet plastic profile extrusion machine is professional make the plastic roofing sheet for house and workshop.
PVC Embossed Roofing Sheet Plastic Profile Extrusion Machine


PVC embossed roofing sheet plastic profile extrusion machine including below parts:
1 Screw loader for SJZ 80/156 extruder ,
2 SJZ 80/156 conical twin-screw extruder(PVC)
3 Vacuum loader and drying hopper
4 SJ50/30 single screw extruder(ASA)
5 Extrusion mould and distributor
6 Calibration mould and trimming device
7 Haul off unit
8 Cutter
9 Stacker
10 Ridge tile Oven
11 Ridge tile Forming machine and mould
12 Screw loader for SRL-Z300/600 Mixer
13 SRL-Z300/600 Mixer unit
14 PC500 Crusher
15 SMP500 Pulverizer

Besides, many roofing sheet tile profiles can be customed made according to customer's required.

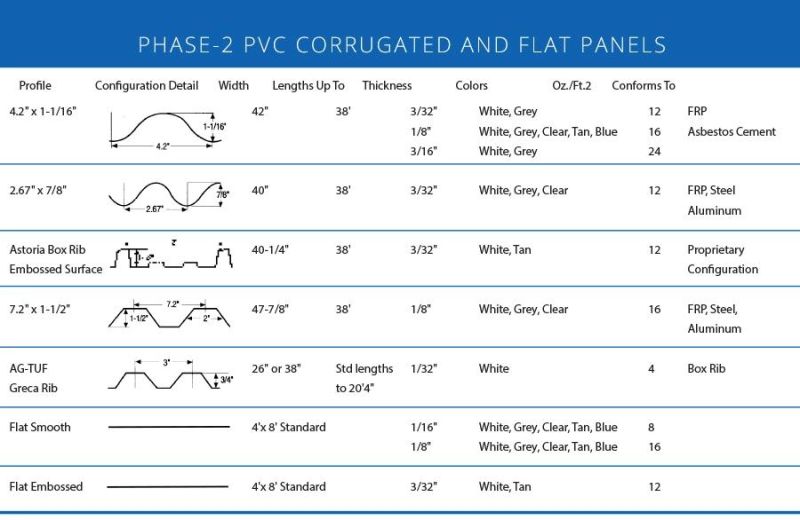

Below are some plastic roofing sheet profile for your reference:


PVC Embossed Roofing Sheet Plastic Profile Extrusion Machine
Below is the specifictions of the PVC embossed roofing sheet plastic profile extrusion machine :

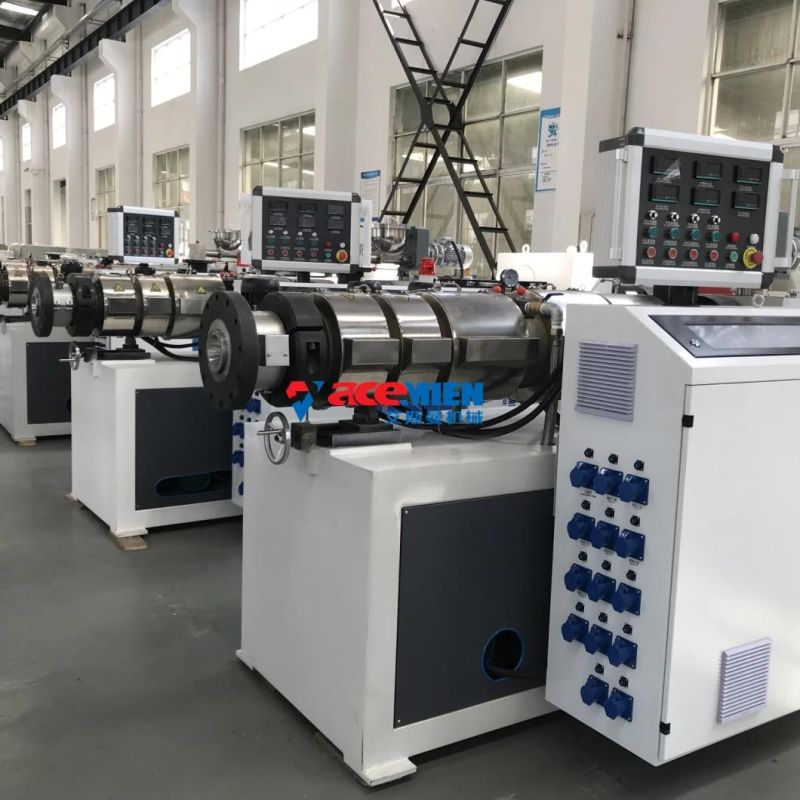

2,SJZ80/156 conical twin-screw extruder    Technical data
Extrusion capacity     280-350kg/h
Screw    Diameter conical 80/ 156 mm
Material of screw: 38CrMoAlA
Surface treatment: Alloy and Nitriding processing, thickness: 0.4 ~ 0,7mm, Polishing
Rotating speed (counter rotating): 1-36.9RPM
Barrel    Diameter conical 80/156
Inner processing: Alloy and Nitrided with thickness: 0.4 ~ 0.7mm
Heating zones: 5
Heating mode: Cast Aluminum heater covered with stainless steel
Heating power: 24kw
Cooling mode: Blower 0.55×4sets
Driving motor    Motor power: 55Kw AC   (SIEMENS)
Dosing feeding system    Motor:1.5Kw
Double screw forced feeding
Vacuum system
Vacuum pump: 3kw,1 set, dual-barrel type
Vacuum degree = 0 ~ 0.075 Mpa
Adaptor
Material: #40steel Chrome plated40, inner convergent flow type
Connection method with die: clamping block + bolt
Pressure melt sensor and thermocouple
Main electric cabinet
Inverter brand: ABB
Contactor brand: Schneider
Air Switch: LS
Relay: Omron
Temperature controller: Omron
PVC Embossed Roofing Sheet Plastic Profile Extrusion Machine

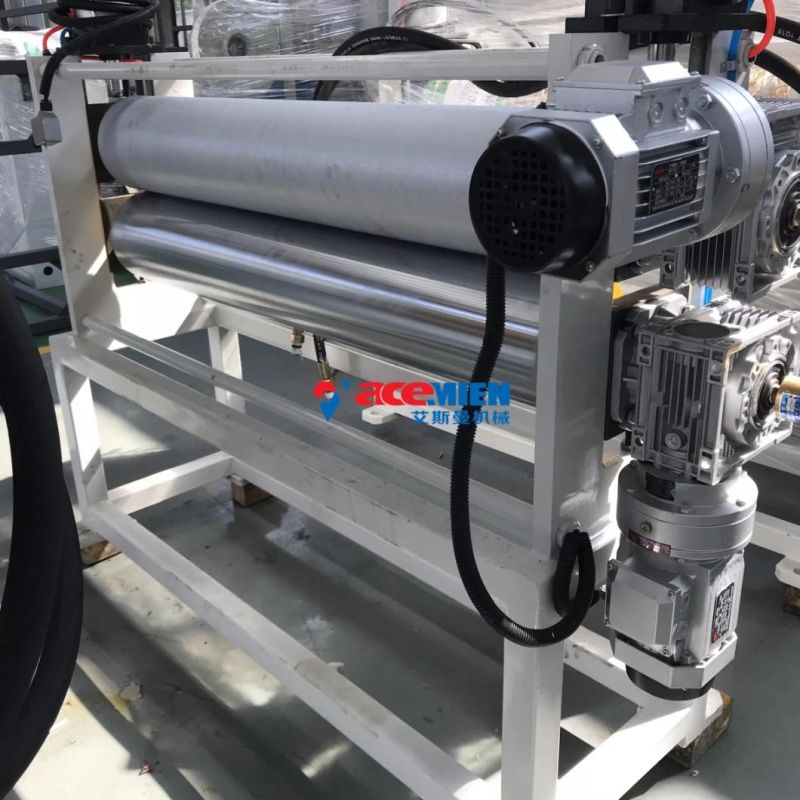

PVC embossed roofing sheet plastic profile extrusion machine Embossing roller
The PVC embossed roofing sheet plastic profile extrusion machine embossing roller can emboss any required pattern as customer required. Also there can add a Logo roll forming system.

PVC Embossed Roofing Sheet Plastic Profile Extrusion Machine


Central height: 1050mm
Max line speed: 5m/min
Rotating power: 0.75Kw×2sets
Dimension of roller:φ215mm×1300mm
Up roller is Embossing roller, the down roller is mirror Roller. Roller surface treatment by hard chrome plated (depth 0.10-0.15)
Control System: ABB inverter

Calibration mould and trimming device
PVC Embossed Roofing Sheet Plastic Profile Extrusion Machine



Edge trimming device: Blade 2pcs, This edge trimming device can trim the sheet edges tidy and cut to length the needed width of the sheet.
Material: Quality Alloy steel
Blade distance adjustable
Quality of module: 44 PCS(22 Pairs) normally
Material: aluminum alloy
Extrusion Line speed: 0-3m/min
Max haul-off power: 50KN
Driver motor power: 2.2Kw
Adopt ABB frequency inverter control
Cooling mode: fan cooling,0.55Kwx8sets
External connecting gas source exhaust amount 0.67m3/min
Exhaust pressure: 0.7MPa
Moving of Forward and Backward Range: ±750mm  Moving Motor power: 0.37Kw
