300 mm Width PLA Plastic Sheet Extrusion Machine for Sale
Zhangjiagang Plastar Machinery Co., Ltd.- Type：Sheet Extruder
- Plastic Processed：PE
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：PL
- Engagement System：Full Intermeshing
- Screw Channel Structure：Non Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Extruder：Sj35,28, Sj45,28 etc
- Suitable Raw Material：PP PE EVA Pcl Pet etc
- Capacity：5-28kg,H
- Operation Systsem：Siemens PLC
- Inverter：ABB Brand
- Temperature Control：Ormon Brand
- Screw Material：38crmosis
- Screw Diameter：35 mm
- Voltage：220V,380V,400V
- Motor：Siemens Beide
- Contactor：French Schneider
- Machine Name：Lab Sheet Extrusion Machine
- Machine Warranty：1 Year
- Certificate：CE, ISO90001
- Usage：Plastic Sheet Extrusion
- Transport Package：Wood Package
- Specification：it depends
- Trademark：PLASTAR
- Origin：China
- HS Code：8477800000
- Production Capacity：100sets,Year
Description
Complete Line PerformanceApplicable materials PP, PE, PVC, PS, TPU, TPE, PLA, EVA etc Screw diameters mm 25 Max. screw rotating speed rpm 120 Screw L/D ratio 28:1 Motor power KW 4 output kg/h 0.5-5 Film thickness mm 0.2-2, adjustable Film width mm up to 100 (Customerized) Max. linear speed m/min 5 Max. working temperature 0C 350 Temperature control accuracy 0C ± 1 Total power KW 13 Working voltage 350V/50Hz/3 phases or Customerized Control method SIEMENS PLC control
Main features of our lab extrusion line:The sheet extrusion unit is a combination of extruder, three roll calendar, haul-off unit, winder (including waste sheet winder) and electric control cabinet.
The main parts, such as screw, barrel, screen exchanger, T-die adopt superior alloy steel (38 CrMoAIA) with high hardness, strong corrosions resistance and long operating life after nitrogen treatment.
The screw adopts big L/D (length/diameter) Ratio, equal plasticization and high plasticizing capability.
Non-stop fast screen changer with double-sieve, controlled by hydraulic device, the operation is convenient and improve the production efficiency.
The calendar, haul off unit and winder adopt integration design, fine appearance, convenient and fast installation and adjustment.
The machine frame adopt square steel, to make sure the machine works stably in high speed. The motor is connected with gear box directly, improve production efficiency and lower energy consumption.
Note: special specification and configuration of products can be designed according to customers' demand.

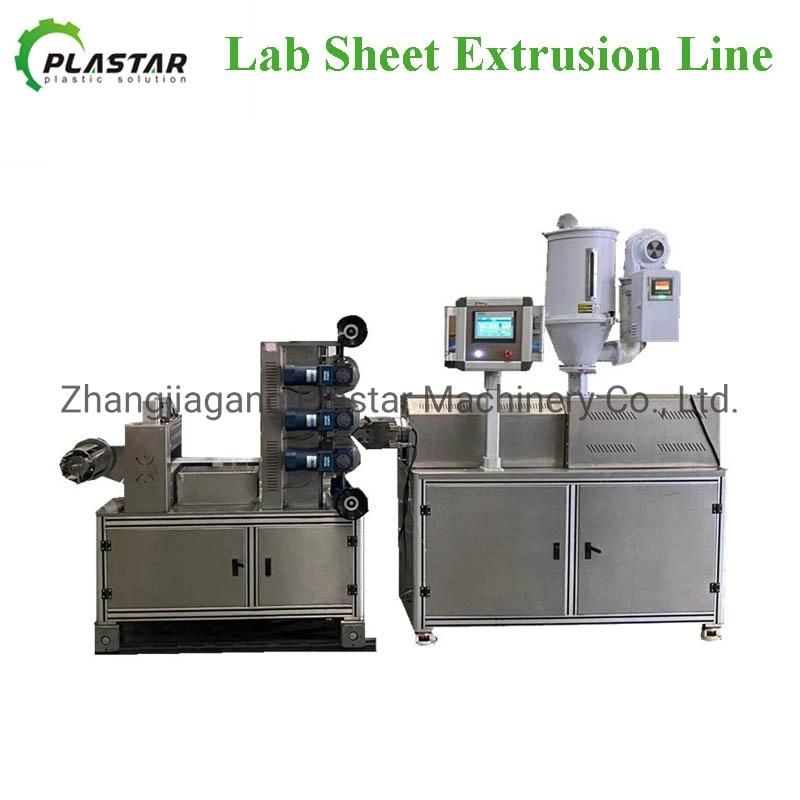

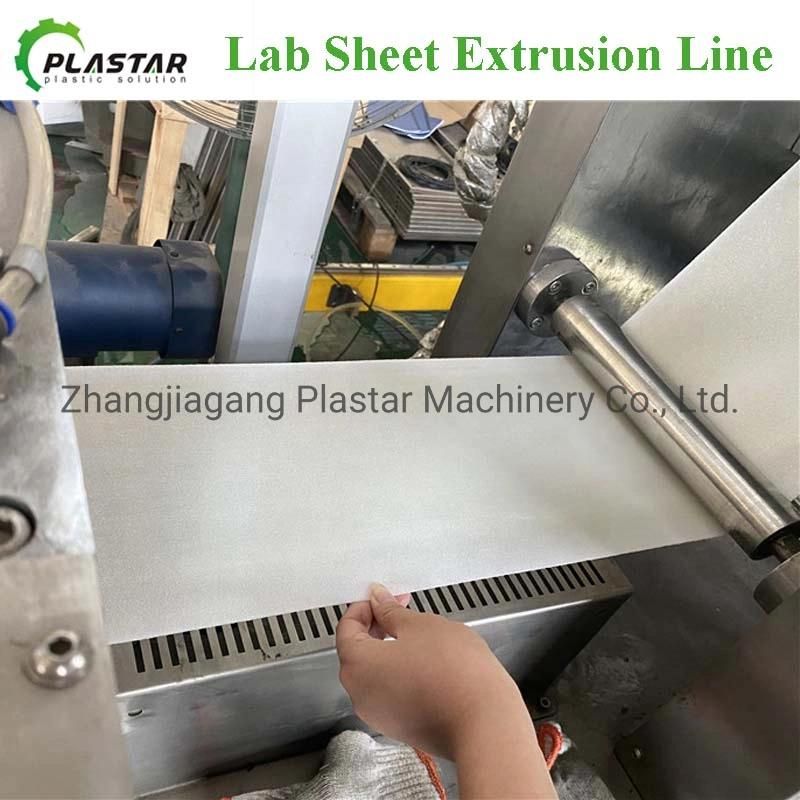

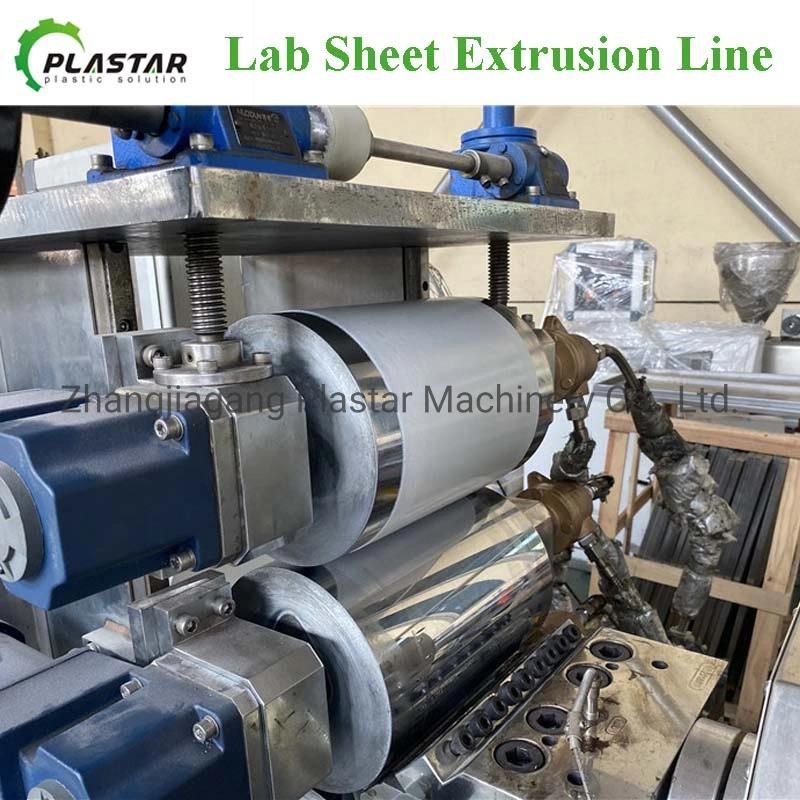

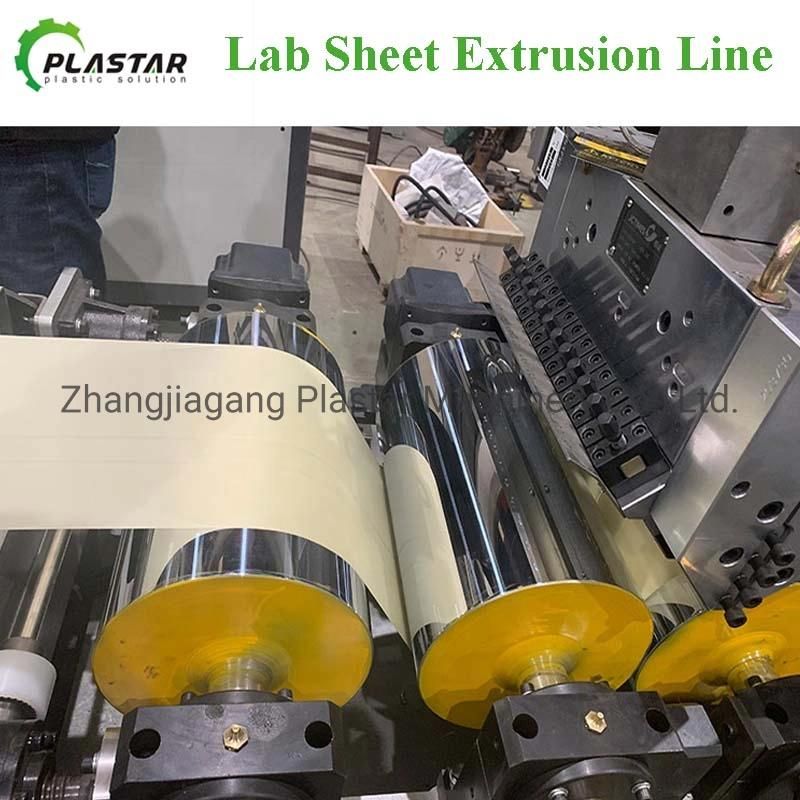

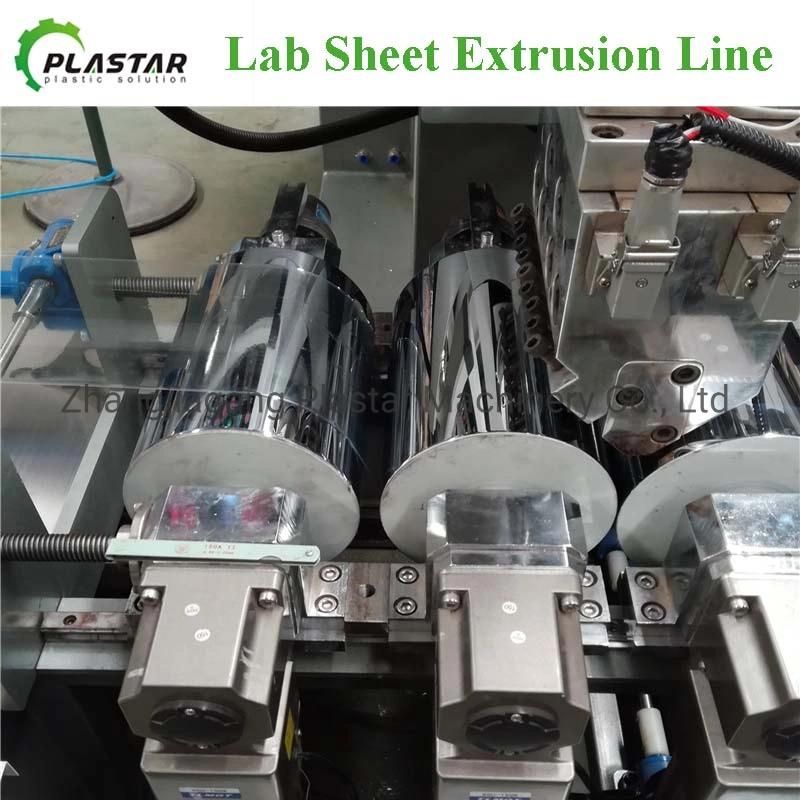

Machine pictures for reference:
ABOUT OUR COMPANY:
Zhangjiagang PLASTAR Machinery Co., Ltd. is the professional manufacturer for kinds of plastic machines, such as 3D printer filament extruder, plastic pipe extrusion line, plastic profile extrusion line, waste plastic recycling machine, plastic crusher & Shredder and plastic process auxiliary machines, etc.
The target of Zhangjiagang PLASTAR Machinery Co., Ltd. is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by Zhangjiagang PLASTAR Machinery Co., Ltd. to new and old friends. We are looking forward to establishing the good cooperation relationship with you on the basis of mutual benefits.
Main features of our lab extrusion line:The sheet extrusion unit is a combination of extruder, three roll calendar, haul-off unit, winder (including waste sheet winder) and electric control cabinet.
The main parts, such as screw, barrel, screen exchanger, T-die adopt superior alloy steel (38 CrMoAIA) with high hardness, strong corrosions resistance and long operating life after nitrogen treatment.
The screw adopts big L/D (length/diameter) Ratio, equal plasticization and high plasticizing capability.
Non-stop fast screen changer with double-sieve, controlled by hydraulic device, the operation is convenient and improve the production efficiency.
The calendar, haul off unit and winder adopt integration design, fine appearance, convenient and fast installation and adjustment.
The machine frame adopt square steel, to make sure the machine works stably in high speed. The motor is connected with gear box directly, improve production efficiency and lower energy consumption.
Note: special specification and configuration of products can be designed according to customers' demand.
Machine pictures for reference:
