• Model NO.：BX-1400
• After-sales Service：Online Support
• Transport Package：Wooden Packing
• Specification：1320*1320*80mm
• Trademark：BaoYuanTong
• Origin：Shandong
• HS Code：8477401000
• Production Capacity：200sets,Month

Model

BX-1400A

BX-1400B

Working area(mm)(L*W)

1320*1320

1320*1320

Forming area(mm)(L*W)

1220*1220

1220*1220

Function

Suction

Suction

Max. suction forming depth(mm)

80

80

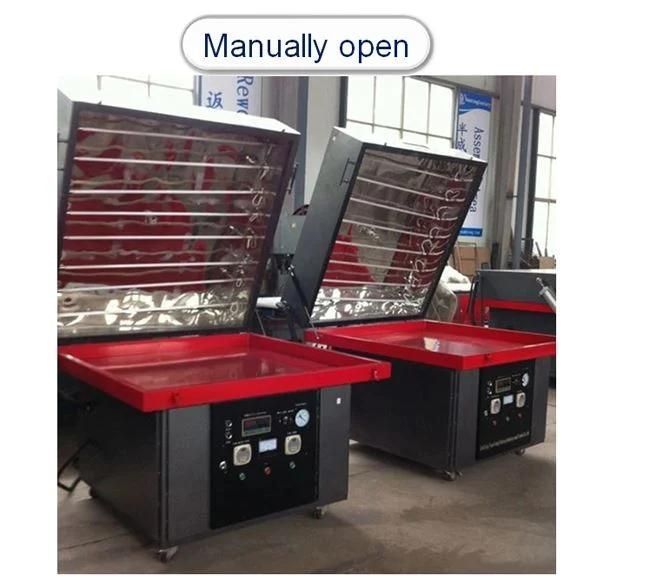

Oven open style

Manual

Automatic open

Heating area

1

1

Suction holes

1

1

Vacuum pump output

28.8m³/h

28.8m³/h

Total power(kw)

11

11

Working Voltage

AC380V/50HZ/3P

AC380V/50HZ/3P

Net Weight (kgs)

350

350

Overall size (mm)  (L*W*H)

1600*1500*1250

1600*1500*1250

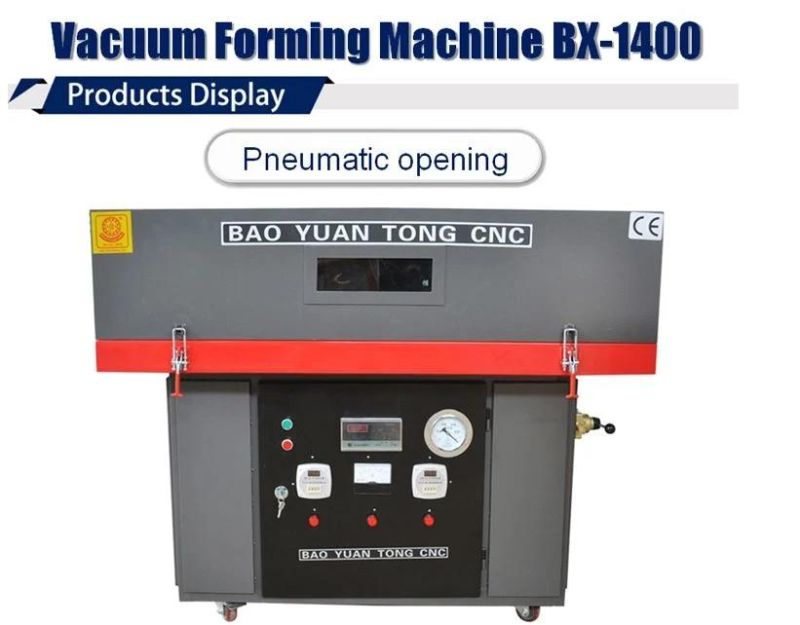

BX-1400 Small Single Mould Plastic Vacuum Former for Sinage Package Industrial

1. What is Vacuum forming machine ?

It mainly use heating tube soften plastic ,then use vacuum pump extract vacuum ,after cooling get the shape you need.

2. What is the vacuum forming machine used for ?

Plastic mold ,Mask making ,signage making ,package , Decoration ,University research ect.

3. Which materail can use ?

PMMA(Acrylic ), PVC,ABS,PE,PET ect.

4. How to choose vacuum forming machine ?

1) The material type and material thickness ,Less than 6mm

2) Finish forming products size

3) Sample pictures

5. Which type machine you have ?

Now mainly we have three type vacuum forming machine ,the mainly difference:

1) BX series only have suction function , the max forming height 80mm

2) BSX series have suction and blow function ,the max forming height can meet 200-300mm 3

) BXY series have Press ,suction and blow function, the max forming height meet 220mm when use blow function

For each type we have detail information , here have this three types working video you can check,more detail information contact with us :

SHANDONG YUANTONG CENTURY INTELLIGENT TECHNOLOGY CO.,LTD This factory build in 1996, mainly producer vacuum forming machine ,vacuum press ,CNC router ,laser machine and channel letter bending machine ,the products export to more than 152 countries and get CE and SGS certification , service more than 2000 customers
