Foamed PVC and Wood WPC Furniture Board Making Machine
Qingdao Tongsan Plastic Machinery Co., Ltd.- Product Type：PVC Board
- Board Layers：Single Plate
- Screw No.：Double-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE
Base Info
- Model NO.：80,173
- Customized：Customized
- Condition：New
- WPC Board Material：PVC and Wood Composition
- WPC Board Making Method：WPC Board Extrusion Machine
- WPC Board Production Processing：Mixing-Extrusion-Molding-Cooling-Cutting-Auxiliary
- WPC Board Width：1200mm
- WPC Board Thickness：3-40mm
- WPC Board Type：Solid Foam Board
- Machine Color：Customized
- Extruder：80,173
- Main Motor Power：75kw
- Capacity：300-400kg,Hour
- Cutting Type：Online Auto Cutting
- Board Surface Treatment：Painting,Laminating, Hot Stamping
- Density of WPC Board：0.4-0.8gram,Cm3
- Control System：Auto Siemens PLC Control
- Inverter：ABB Brand
- Transport Package：Film Wrapping, Wooden Case, Strong Pallet
- Specification：700-1200mm
- Trademark：Tongsan
- Origin：China
- HS Code：84772090
- Production Capacity：10 Sets,Month
Description
400-500kg/h
Equipment list of WPC foam board extrusion line:
The WPC foam board extrusion line includes auto feeder, extruder, die head, calibrators, cooling bracket, haul off machine, cutting machine, stacker.
Auxiliary equipments for making WPC foam board
For complete line to make WPC foam board, customer shall need to equip below auxiliary machines.
Picture of WPC foam board making machine

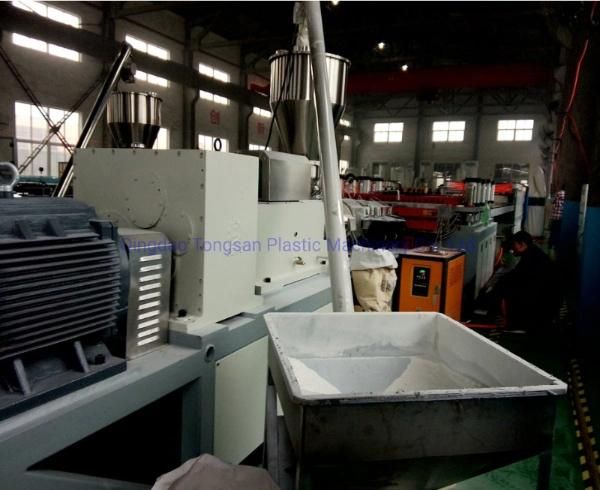

we have WPC foam board machine in our factory stock now. we can show you machine running video. Conical double screw extruder with auto feeder: special designed extruder screw for high foaming WPC board products making.
die head, mold and calibrator: the calibrators are cooled by water,the water can be cycling use with water chiller.
cooling stacker: the cooling stacker is used for cooling the WPC foam board to ensure the flatness of the board.
haul off machine: WPC foam board requires very strong haul off force,so that we equip 8-10 pairs rubber rollers for haul off.

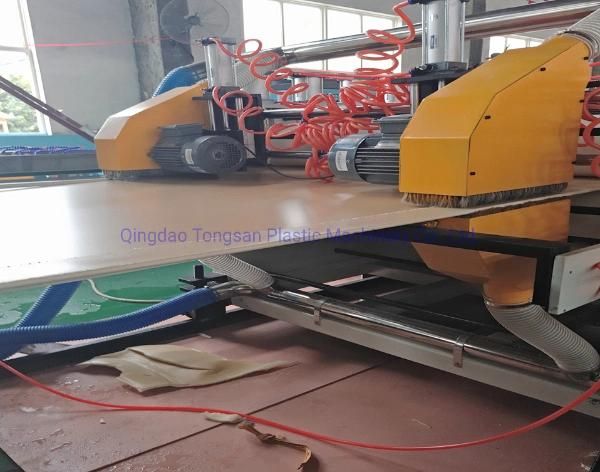

edge cutting: cut the WPC foam board into required width, cut away the waste edges,
the cutting wastage can be recycled and reuse again.

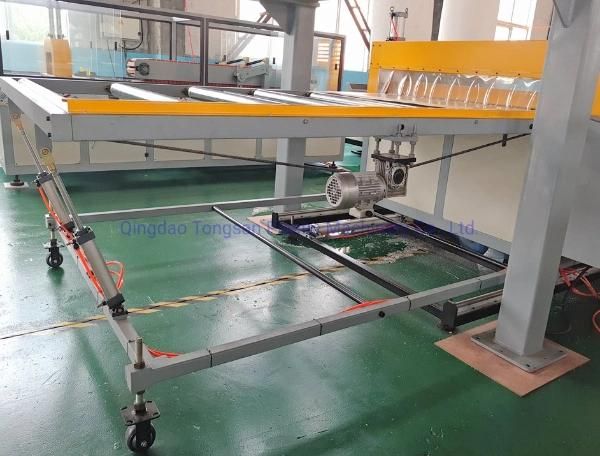

length cutting: WPC foam board automatic length cutting machine
product stacker: WPC foam board auto stacking system, length 3meters

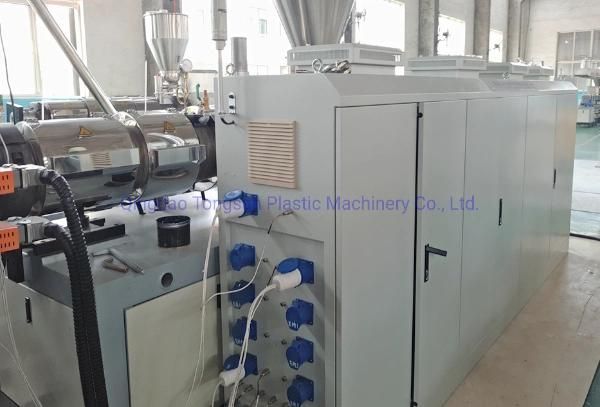

electricity control:
The complete WPC foam board extrusion line can be made with Siemens PLC control system,
the electric parts are ABB brand inverters, Omron brand temperature control, Siemens contractors.
WPC board production cost reference

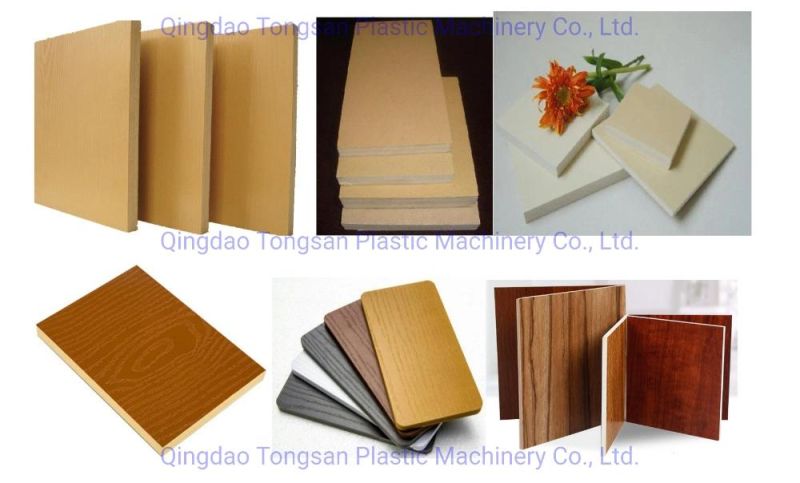

WPC board finished products
We provide Reliable Turnkey Project service1, We will provide the Feasibility Analysis Report for the wood-plastic project.
2, We will provide the model selection and technical parameter for wood-plastic machinery.
3, We will provide the design for the plant and electric power accounting for the facilities.
4, We will provide the design for wood-plastic formula according to the product requirements.
5, We will provide the technology of wood-plastic product surface treatment
6, We will provide technique training for operator.
7, We will provide solution for the practical problem during the production.
8, We will install and test the machine for free.
9, We will provide turnkey project to customers.WE PROVIDE COMPREHENSIVE INSTALLATION AND TRAINING SERVICE OVERSEAS
2, Our PP PE WPC extrusion machine adopts double-step extrusion processing which can use max.70% wood powder and recycled PP/PE plastic flakes.
3, Our PVC WPC extrusion machine can make foamed WPC products by max.40% wood powder without material burning problem.
4, We also can help customer to develop its own formulation according to customer's raw material and market demands.WE WILL PROVIDE EXCELLENT AFTER SELL SERVICE1, WARRANTY PERIOD: 12 MONTHS, STARTING FROM THE FIRST DAY OF RUNNING MACHINES IN CUSTOMER'S WAREHOUSE
2, SELLER SHALL GRANT: SERVICES AND SPARE PARTS, FREE-OF-CHARGE SERVICE THROUGHOUT THE ENTIRE EQUIPMENT WARRANTY PERIOD.
3, LIFELONG SERVICE: WE SHALL PROVIDE LIFELONG SERVICE FOR THE SOLD GOODS
Equipment list of WPC foam board extrusion line:
The WPC foam board extrusion line includes auto feeder, extruder, die head, calibrators, cooling bracket, haul off machine, cutting machine, stacker.
| Items | Machine | Quantity | Notes |
| 1.1 | SJMS80/173 Conical double screw extruder | 1 set | With auto feeder |
| 1.2 | Mold and calibrators for 1220mm width , and 18-35mm thickness | 1 set | With 5 lips |
| 1.3 | WPC board calibrating device | 1 set | 5 calibrators |
| 1.4 | Cooling bracket, it can equip online embossing and online hot transferring or laminating machine. | 1 set | 5 meters length |
| 1.5 | Protection film coating device | 1 set | Double face type |
| 1.6 | Haul-off machine | 1 set | 10 groups of rollers |
| 1.7 | Width(Edge) cutting machine | 1 set | Two sides cutting |
| 1.8 | Length Cutting machine | 1 set | Fixed length auto cutting |
| 1.9 | Dust suction machine | 1 set | collecting cutting dust |
| 1.10 | Product stacker | 1 set | 3 meters |
| 1.11 | Siemens PLC Electric control system | 1 set | High quality world famous |
Auxiliary equipments for making WPC foam board
For complete line to make WPC foam board, customer shall need to equip below auxiliary machines.
| No. | Machine | Quantity | Usage |
| 1 | SHRL500/1000 mixer | 1 set | For mixing material |
| 2 | Die head for 3-15mm thickness | 1 set | For small thickness WPC board |
| 3 | PVC WPC Crusher and miller | 1 set | for recycling the wastage in production |
| 4 | 20HP Water chiller | 1 set | for providing cooled water |
| 5 | 30A screw air compressor | 1 set | for providing air |
| 6 | Lamination or hot stamping machine | 1 set | for surface beautiful design make |
Picture of WPC foam board making machine
we have WPC foam board machine in our factory stock now. we can show you machine running video. Conical double screw extruder with auto feeder: special designed extruder screw for high foaming WPC board products making.
die head, mold and calibrator: the calibrators are cooled by water,the water can be cycling use with water chiller.
cooling stacker: the cooling stacker is used for cooling the WPC foam board to ensure the flatness of the board.haul off machine: WPC foam board requires very strong haul off force,so that we equip 8-10 pairs rubber rollers for haul off.
edge cutting: cut the WPC foam board into required width, cut away the waste edges,
the cutting wastage can be recycled and reuse again.
length cutting: WPC foam board automatic length cutting machine
product stacker: WPC foam board auto stacking system, length 3meters
electricity control:
The complete WPC foam board extrusion line can be made with Siemens PLC control system,
the electric parts are ABB brand inverters, Omron brand temperature control, Siemens contractors.
WPC board production cost reference
| No. | Size(mm) | Weight (Kg) | Material cost (USD) | Electric and manpower cost (USD) | Total Production cost (USD) |
| 1 | 1220*2440*7 | 9.5 | 7.6 | 2 | 9.6 |
| 2 | 1220*2440*10 | 13.5 | 10.8 | 2 | 12.8 |
| 3 | 1220*2440*12 | 16 | 12.8 | 2 | 14.8 |
| 4 | 1220*2440*15 | 20 | 16 | 2 | 18 |
| 5 | 1220*2440*18 | 24 | 19.2 | 2 | 21.2 |
| 6 | 1220*2440*20 | 27 | 21.6 | 2 | 23.6 |
We provide Reliable Turnkey Project service1, We will provide the Feasibility Analysis Report for the wood-plastic project.
2, We will provide the model selection and technical parameter for wood-plastic machinery.
3, We will provide the design for the plant and electric power accounting for the facilities.
4, We will provide the design for wood-plastic formula according to the product requirements.
5, We will provide the technology of wood-plastic product surface treatment
6, We will provide technique training for operator.
7, We will provide solution for the practical problem during the production.
8, We will install and test the machine for free.
9, We will provide turnkey project to customers.WE PROVIDE COMPREHENSIVE INSTALLATION AND TRAINING SERVICE OVERSEAS
1, We shall help customer to prepare the material, electricity and other running conditions for the WPC factory running.
2, We will send our engineer's to customer's factory for installation all the machines and running all the machines
3, Our engineer shall also teach customer's engineer how to operate our machine.
4, If the customer's engineer has any problem in the cooperation, they can contact our service team to do online training.
WE PROVIDE EXPERIENCED FORMULA AND TECHNOLOGY SUPPORT1, We have developed our own formulation by many times of machine testing according to different raw material and product quality requirements.2, Our PP PE WPC extrusion machine adopts double-step extrusion processing which can use max.70% wood powder and recycled PP/PE plastic flakes.
3, Our PVC WPC extrusion machine can make foamed WPC products by max.40% wood powder without material burning problem.
4, We also can help customer to develop its own formulation according to customer's raw material and market demands.WE WILL PROVIDE EXCELLENT AFTER SELL SERVICE1, WARRANTY PERIOD: 12 MONTHS, STARTING FROM THE FIRST DAY OF RUNNING MACHINES IN CUSTOMER'S WAREHOUSE
2, SELLER SHALL GRANT: SERVICES AND SPARE PARTS, FREE-OF-CHARGE SERVICE THROUGHOUT THE ENTIRE EQUIPMENT WARRANTY PERIOD.
3, LIFELONG SERVICE: WE SHALL PROVIDE LIFELONG SERVICE FOR THE SOLD GOODS
