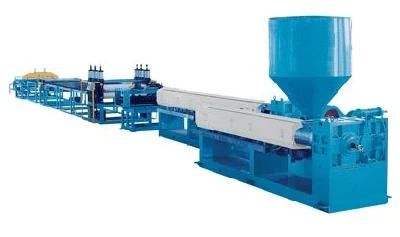

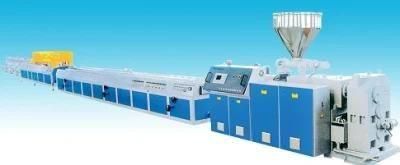

PE Pipe Extrusion Line

SKY WIN Technology Co., Ltd.

    Base Info

      Description

      Machine Type BHD45/33 BHD65/33 BHD75/33 BHD90/33 BHD120/33 BHD150/33
      Main Motor Power (KW) 37 90 110 160 280 400
      Screw Diameter
      (mm)      		 45 65 75 90 120 150
      L/D 33 33 33 33 33 33
      Screw Rotary Speed (R/min) 20-150 20-150 20-150 20-110 20-90 20-75
      Torque Allotment
      (N)      		       11200 25000 45000
      Extrusion Output
      (Kg/hr)      		 110 250 320 450 750 900
      Pipe Diameter(mm) 16-63 16-110 32-160 63-250 160-400 315-630
      Haul-off Branches 2 2 2 3 4 6
      Haul-off Power 6 8 11 20 30 40
      Haul-off Speed
      (m/min)      		 15 12 9 8 4 2
      Auxiliary Power (KW) 14 14 14 21.5 41 56
      Outline Dimensions(mm) 2200*1440*1950 2775*1550*2200 3660*1550*2200 4230*1550*2200 5370*1860*2400 6630*1920*2450
