Brand New PVC Pipe Extrusion Making Machine
Zhangjiagang Sunrise Machinery Co., Ltd.- Type：Pipe Extruder
- Plastic Processed：PVC
- Product Type：Pipe Making Machine
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Twin-Screw
Base Info
- Model NO.：SJZ65,132
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Applicable Pipe：PVC Pipe
- Pipe Diameter：16-800mm
- Extruder Type：Conical Twin Screw
- Haul off Machine：2-8 Caterpillar
- Vacuum Calibration Tank Length：4-8 Meters
- Cutter Method：No Dust Cutter
- Feeding Method：Vacuum Feeder or Screw Feeder
- Inverter Brand：ABB
- Motor Brand：Siemens Beide
- Name：PVC Pipe Making Machine
- Transport Package：Stretch Film+Wood Pallet
- Specification：20-25 meters
- Trademark：Sunrise
- Origin：China
- HS Code：8477800000
- Production Capacity：20 Sets,Month
Description
Pipe range
20-63mm single
20-63mm dual
75-160mm
110-315mm
315-630mm
Twin Screw Extruder
SJZ51/105
SJZ65/132
SJZ65/132
SJZ80/156
SJZ92/188
Main Motor
18.5kw
37kw
37kw
55kw
110kw
Extrusion capacity
80-120kg/h
160-200kg/h
180-250kg/h
280-360kg/h
450-600kg/h
Max. Production speed
12m/min
10m/min
6 m/min
3 m/min
1.2m/min
Process flow:
PVC powder + additive → mixing
Spring feeder → twin screw extruder → mould → vacuum calibration machine → haul off machine → cutting machine → stacker

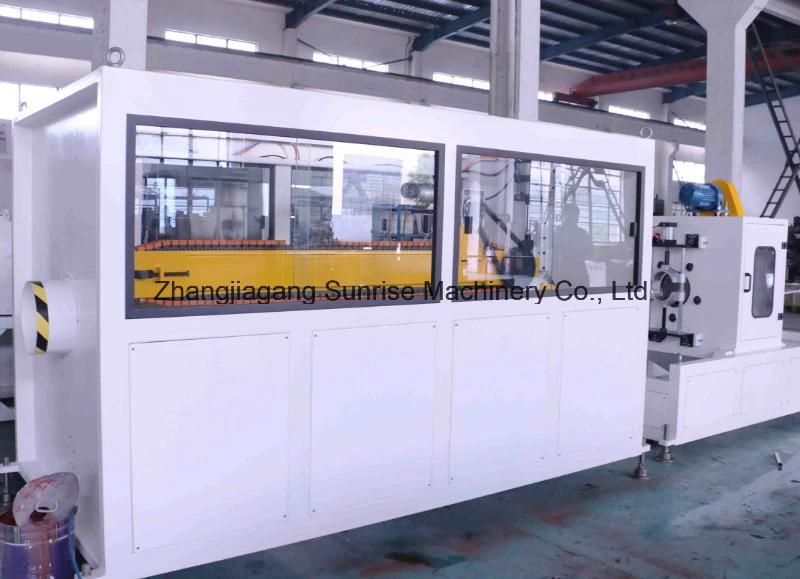

After mixing raw material with other additives, the mixed powder will be fed into the extruder by spring feeder or vacuum feeder, after extrusion, the soft hot pipes will be produced by mould, then it goes into the vacuum calibration tank as below pictures:

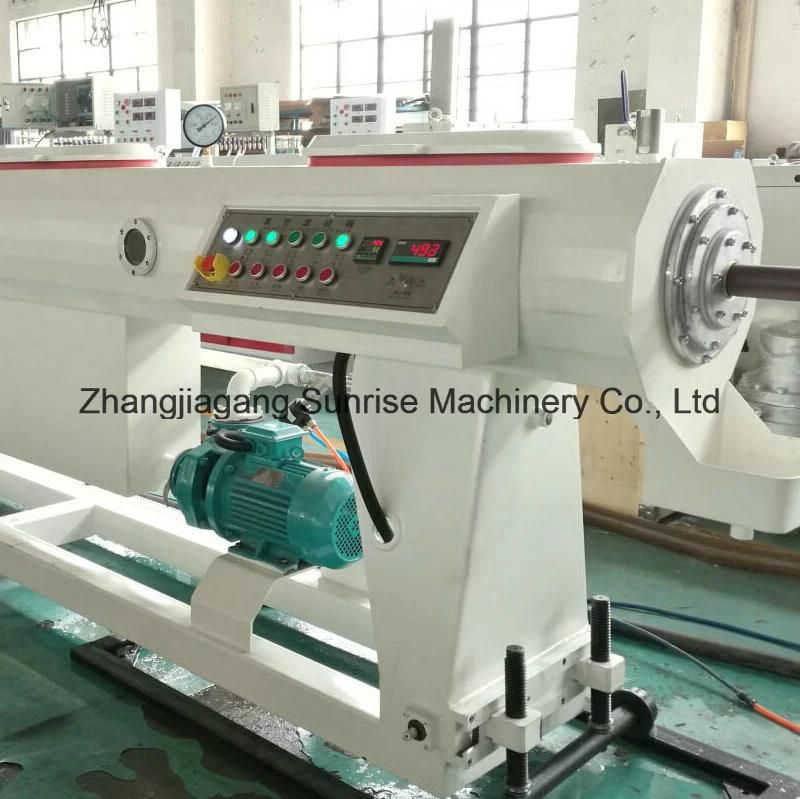

The vacuum calibration tank's function to keep the pipe's shape and cool it, the vacuum calibration tank is mainly imposed of one or several water pump, one or several vacuum pump, and several rows of spraying nozzle. after cooling and forming shape, the pipes will be pulled to next machine--haul off machine, haul off machine's mainly function is to keep the pipes forward, there are two caterpillars, three caterpillars, even to eight caterpillars for different diameter pipes. below piture one is three caterpillar haul off machine, it is suitable for pipes' diameter not more than 250mm.

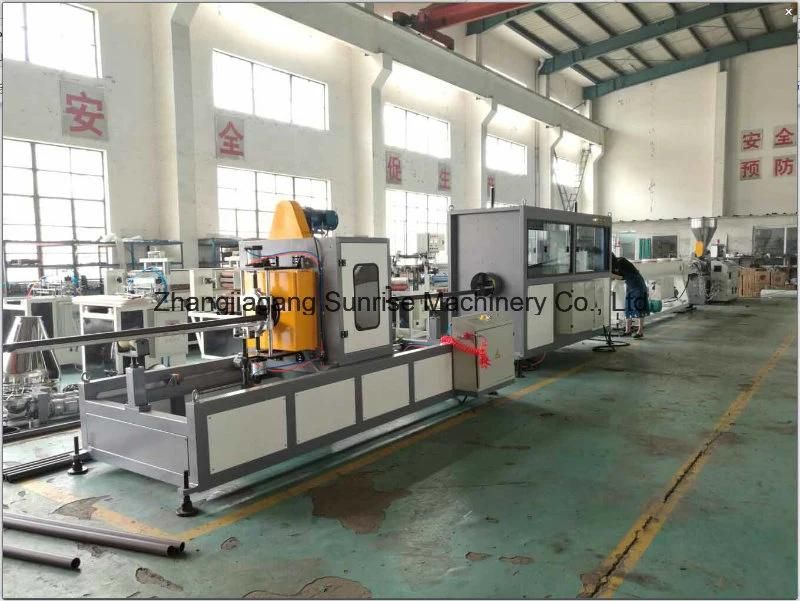

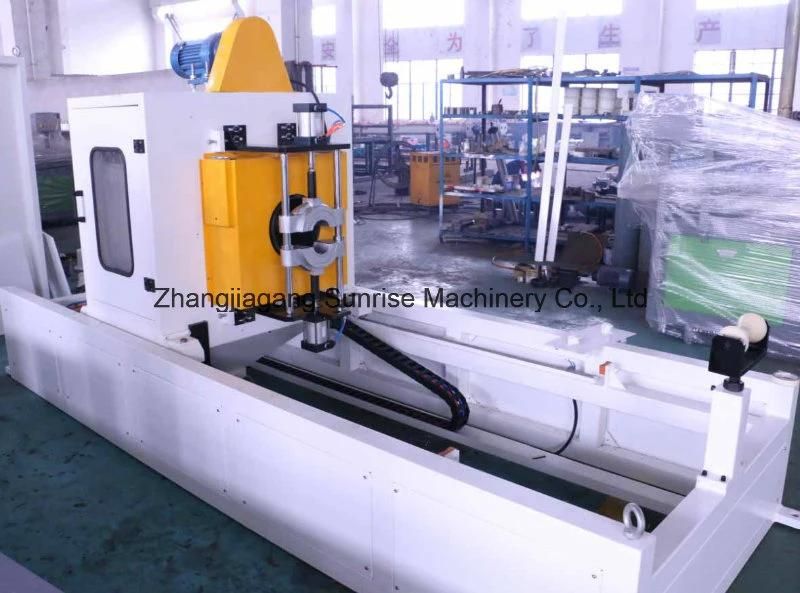

After haul off machine, the next machine is cutter, its function is to cut the pipes based on required length. there are also several type of cutting way, one is cutter type, another is planetary type cutter, and we also have no-dust type cutter, they are used for different type of pipes. below is planetary type cutter:
At last, you can get good quality PVC pipes by our extrusion line. all our machines will be tested before delivering to you, if there is problem, we can make sure it can be solved at our factory. with more than 11 years' manufacturing experience, we hope that we could have chance to cooperate with customers all over the world.
Our Service:
1. We could send engineers to the buyer's factory for installation instruction, commissioning and training service at buyer's cost.
2. Our machine has 12 month guarantee since the installation in buyer's factory. During the guarantee time, if any parts (except the easy damaging parts) are damaged under normal operation, we will offer free spare parts. After the guarantee time, we will offer the spare parts with cost price.
3. If the buyer have any problem during the operation, we will offer technical solutions.
