• Model NO.：SP-410S
• Application：Machinery & Hardware, Food & Beverage
• Computerized：Non-Computerized
• Automation：Automatic
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Sinoplast
• Origin：Zhe Jiang, Wen Zhou
• HS Code：8477409000
• Production Capacity：100 Sets Per,Year

Basic Info.

Model NO. SP-410S Application Machinery & Hardware, Food & Beverage Computerized Non-Computerized Automation Automatic Transport Package Wooden Case Specification CE Trademark Sinoplast Origin Zhe Jiang/ Wen Zhou HS Code 8477409000 Production Capacity 100 Sets Per/Year

Product Description

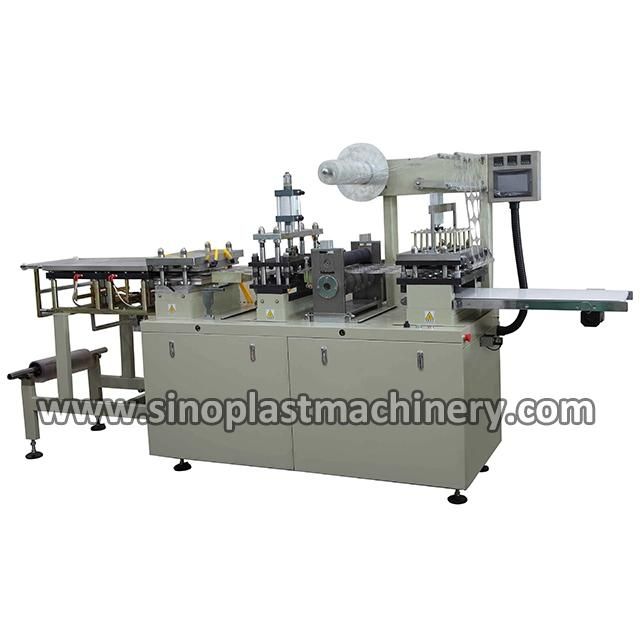

Servomotor Plastic Thermoforming Machine



Usage:
This machine is specially designed for making disposable HIPS/GPPS/PVC/PET/PLA lids for plastic/paper cups, mini soup spoons, trays for medicine and etc.

Characteristic:

1. This machine adopts sheet roll feeding, heating, molding, hole or cross punching, trimming, finished products transmission automatically, which saves labor and avoids product pollution during the production.
2. This machine is controlled by PLC with touch screen, which is easy operation and maintenance.
3. The journey of this machine is adjustable, and easy to change the moulds for different sizes of products.
4. It adopts servomotor to feed sheet, which is more accurate and the feeding length could be set by parameter setting through touch screen.

Main Technical Parameter:

Model	DP-420S
Suitable Material	HIPS/GPPS/PVC/PET/PLA
Journey Range	30-160mm
Max Forming Area	410x300mm
Max Forming Depth	50mm
Power Consumption	10KW
Required Sheet Width	430mm
Required Sheet Thickness	0.15-0.5mm
Air Pressure	0.4-0.7MPa
Air Consumption	0.6-0.8m³/min
Water Consumption (recycle)	60 liters/hr
Punching Frequency	8-32cycles/min
Power Voltage	380V/50HZ
Approx. Machine Weight	1200kg
Approx. Machine Dimension	2700×830×1450mm
Machine Packing Dimension	3000x1000x1900mm
