• Model NO.：SJ-45,FM600 SJ-55,FM800 SJ-60,FM1000 SJ-65,FM1200
• Machine Weight：4T
• Certification：CE
• Max Width：1600mm
• Screw Dia：50,55,60mm
• Screw Speed：10-120PCS,Min
• Max Output：30-100kg,H
• Transport Package：in Standard Wooden Package
• Specification：CE
• Trademark：E-LIGHT
• Origin：China
• HS Code：84773090
• Production Capacity：35-160kg

Basic Info.

Model NO. SJ-45/FM600 SJ-55/FM800 SJ-60/FM1000 SJ-65/FM1200 Machine Weight 4T Certification CE Max Width 1600mm Screw Dia 50/55/60mm Screw Speed 10-120PCS/Min Max Output 30-100kg/H Transport Package in Standard Wooden Package Specification CE Trademark E-LIGHT Origin China HS Code 84773090 Production Capacity 35-160kg

Product Description

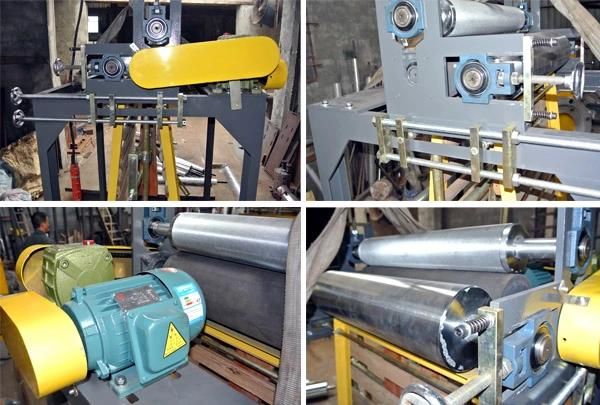

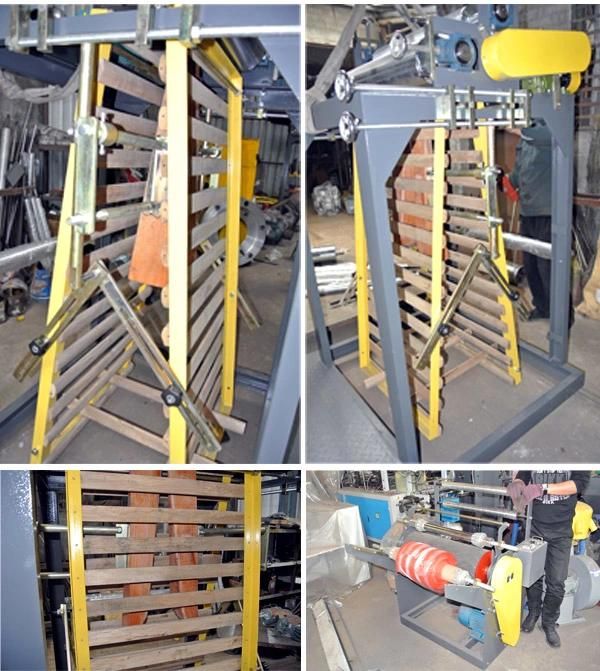

SJ-50/FM600 SJ-55/FM800 SJ-60/FM1000 High speed film blowing machine unitUse: Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene(LDPE), high density polytene(HDPE)and linear low density polytene(LLDPE), It is widely applied to producing the packing bags for foodstuff, clothing rubbish bag and vest ones.

Model	SJ-50/FM600	SJ-55/FM800	SJ-60/FM1000
Screw Diameter	50mm	55mm	60mm
Screw Ratio	L/D30.1	L/D30.1	L/D30.1
Screw Speed	10-120r/min	10-120r/min	10-120r/min
Power of Main Motor	18.5kw	22kw	30kw
Max. Extrusion output	30-60kg/h	40-80kg/h	50-100kg/h
Max. Folding Width of Film	600mm	800mm	1000mm
Single-sided Thickness of Film	0.008-0.10mm	0.008-0.10mm	0.008-0.10mm
Sub-master Machine Lift Scope	800mm	1000mm	1200mm
Total Power	28kw	36kw	42kw
Weight of machine	2600kg	3000kg	3500kg
Overall Dimensions (L*W*H)	4600mmX2600mm X4000mm	4800mmX2800mm X4300mm	5000mmX3000mm X4800mm
