Hige Speed PE HDPE PPR Pipe Extrusion Line Pipe Production Machine
Qingdao Weier Plastic Machinery Co., Ltd.- Warranty：Provide
- Product Type：PE Pipe
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, QS
Base Info
- Model NO.：SJ75,38
- Customized：Customized
- Condition：New
- After-sales Service：Provide
- Total Power：110kw
- Output：150-180kg,H
- Splitting Machine：Automatic
- Scrfp Edge：Self-Motion Adjustable
- Transport Package：Nude Packing
- Specification：22*2.5*3
- Trademark：weier
- Origin：Shandong
- HS Code：84772090
- Production Capacity：20set Per Month
Description
Basic Info.
Model NO. SJ75/38 Customized Customized Condition New After-sales Service Provide Total Power 110kw Output 150-180kg/H Splitting Machine Automatic Scrfp Edge Self-Motion Adjustable Transport Package Nude Packing Specification 22*2.5*3 Trademark weier Origin Shandong HS Code 84772090 Production Capacity 20set Per MonthProduct Description

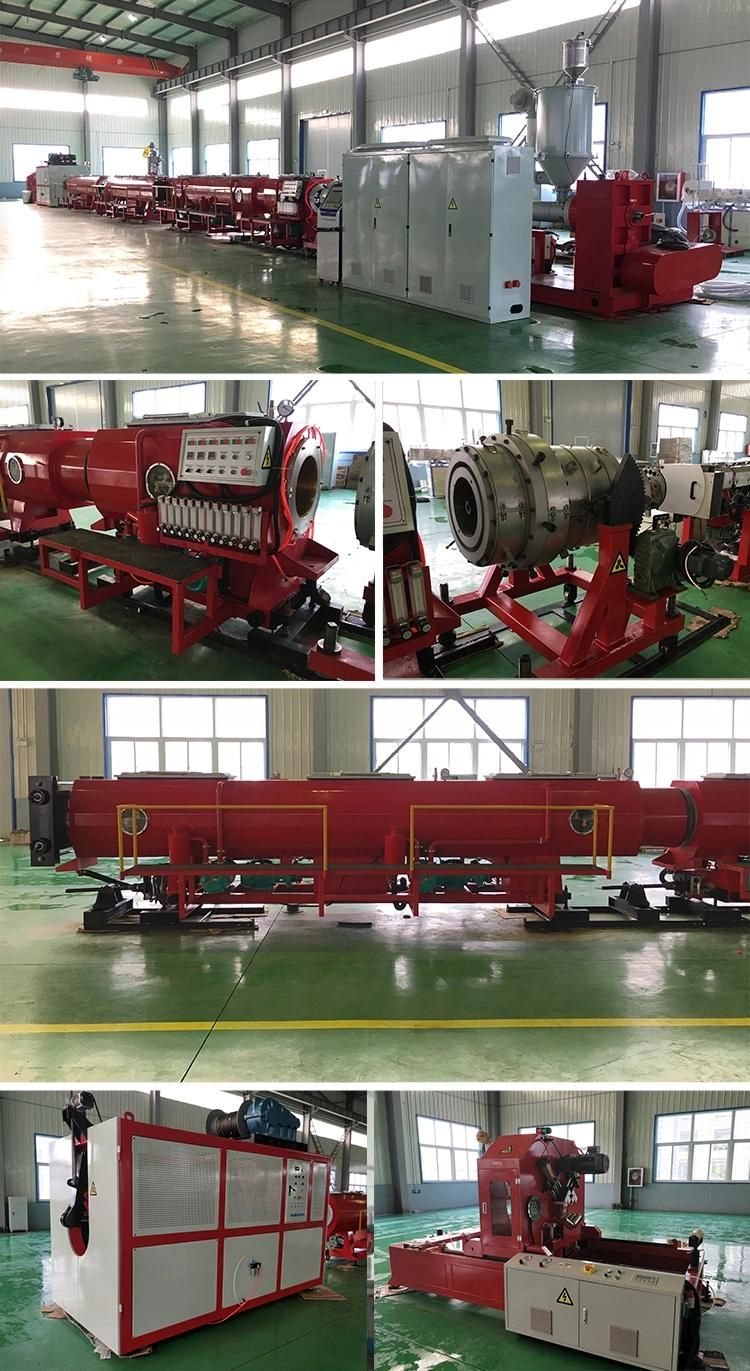

HDPE PP PPR pipe extrusion line---Produce Application---Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE low temperature extrusion production.
Specially-designed spiral moulds for PE pipes, with inside oil controlling temperature system.
Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; special spray cooling system improves the cooling efficiency ; special water position, water temperature system make the machine more intelligent.
Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.
Cutting system adopts saw blades and planetary cutting means; sumping uses hydraulic system , which ensures the smooth cross section; equipped with dust-collecting unit, which ensures the clean working environment.
Process of HDPE PPR pipe production line:
Raw material preparation→ vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul-off machine → cutting machine → discharging rack.→ electrical control system
---Main technical parameter---
---Packing & Delivery---
---Exhibition Certificate ---
