• Trademark：rephale
• Origin：China

Input power source220V/50Hz(We can customize)Output voltage10-15KVWorking Frequency15--20KHzDealing thickness3mmDealing width600mmDealing speed0-20M/minApplicationSheet and roll materialAmbient Temperature-20ºC~+40ºCEnvironment Humility20%~90%Size1900*1100*1300mmWeight150Kg



Wide range working voltage : Turn the machine on when the line voltage is AC220V±10%,it also can work when the minimum voltage value is 150V.

High frequency:The frequency of BXS series can reach to 20KHz, it make the impact density of the corona fire higher.It is even more ideal for the surface treatment of the materials of the liquid canning film etc. Moreover, it makes no difference to the appearance and strength of the treated materials.

High efficiency:It adopt the latest international technology of resonant power,the energy conversion rate can reach to 95%,low consumable power and it is the energy- saving device.It can

reduce the cost for the users and make the business enterprise is competing the neutral in the invincible position.

Full electronic protection: numeralization and microcomputer control system,it can supply the device with all-around protection ,the sound-light alarm will work while protecting.If the electrode roller is wet due to the bad weather,it also can work.The corona fire is changing from small to big and it will be in working order in a short time.

Application

It can deal with all kinds of flat sheet material and roll material. Such as paper, plastic film, sticker and phone case. The width of the material can reach 60cm.

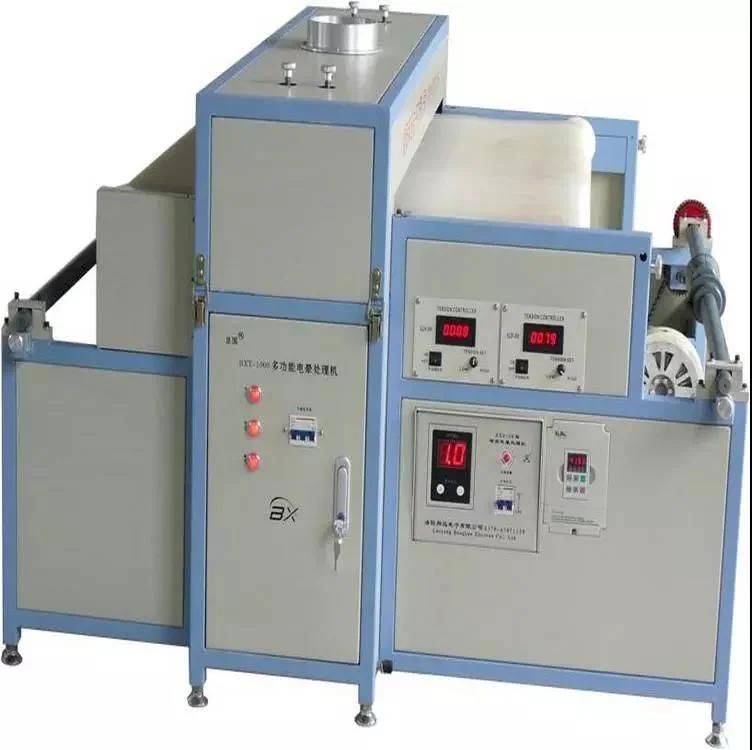

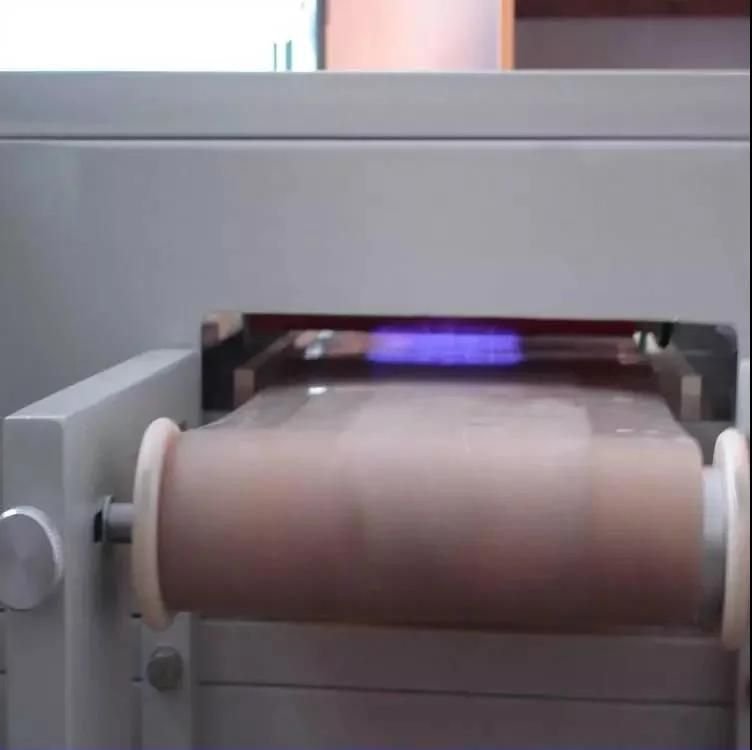

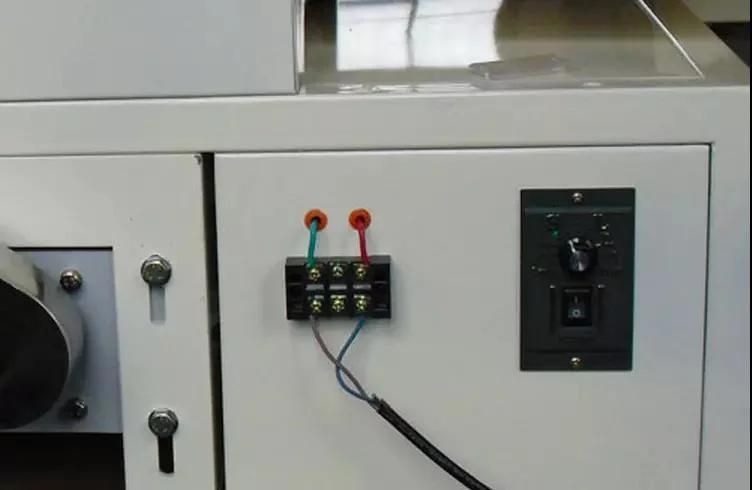

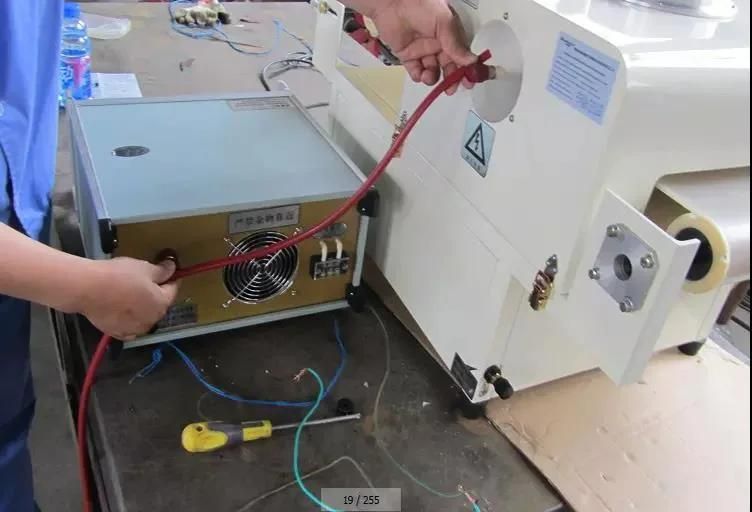

Detailed Images
